E M C
C o m p o n e n t s
May 2018
Chip beads
For general signal line
Low DC resistance type
MMZ-H series

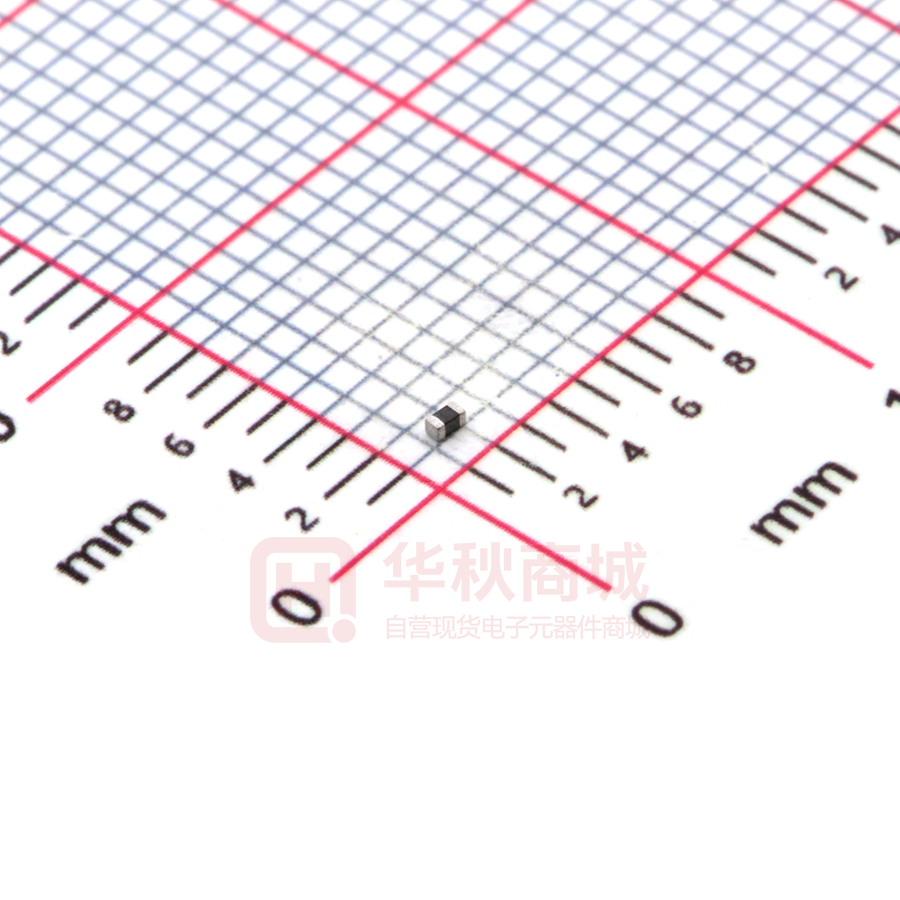

MMZ1005-H
MMZ1005-H
1005[0402 inch]*
* Dimensions code JIS[EIA]
type
(2/10)
E M C
C o m p o n e n t s
REMINDERS FOR USING THESE PRODUCTS
Before using these products, be sure to request the delivery specifications.
SAFETY REMINDERS
Please pay sufficient attention to the warnings for safe designing when using these products.
REMINDERS
The storage period is less than 12 months.Be sure to follow the storage conditions (temperature:5 to 40°C, humidity:10 to 75% RH or
less).
If the storage period elapses, the soldering of the terminal electrodes may deteriorate.
Do not use or store in locations where there are conditions such as gas corrosion (salt, acid, alkali, etc.).
Before soldering, be sure to preheat components.
The preheating temperature should be set so that the temperature difference between the solder temperature and chip temperature
does not exceed 150°C.
Soldering corrections after mounting should be within the range of the conditions determined in the specifications.
If overheated, a short circuit, performance deterioration, or lifespan shortening may occur.
When embedding a printed circuit board where a chip is mounted to a set, be sure that residual stress is not given to the chip due to
the overall distortion of the printed circuit board and partial distortion such as at screw tightening portions.
Self heating (temperature increase) occurs when the power is turned ON, so the tolerance should be sufficient for the set thermal
design.
Carefully lay out the coil for the circuit board design of the non-magnetic shield type.
A malfunction may occur due to magnetic interference.
Use a wrist band to discharge static electricity in your body through the grounding wire.
Do not expose the products to magnets or magnetic fields.
Do not use for a purpose outside of the contents regulated in the delivery specifications.
The products listed on this catalog are intended for use in general electronic equipment (AV equipment, telecommunications equipment, home appliances, amusement equipment, computer equipment, personal equipment, office equipment, measurement equipment, industrial robots) under a normal operation and use condition.
The products are not designed or warranted to meet the requirements of the applications listed below, whose performance and/or quality require a more stringent level of safety or reliability, or whose failure, malfunction or trouble could cause serious damage to society,
person or property.
If you intend to use the products in the applications listed below or if you have special requirements exceeding the range or conditions
set forth in the each catalog, please contact us.
(1) Aerospace/aviation equipment
(2) Transportation equipment (cars, electric trains, ships, etc.)
(3) Medical equipment
(4) Power-generation control equipment
(5) Atomic energy-related equipment
(6) Seabed equipment
(7) Transportation control equipment
(8) Public information-processing equipment
(9) Military equipment
(10) Electric heating apparatus, burning equipment
(11) Disaster prevention/crime prevention equipment
(12) Safety equipment
(13) Other applications that are not considered general-purpose
applications
When designing your equipment even for general-purpose applications, you are kindly requested to take into consideration securing protection circuit/device or providing backup circuits in your equipment.
20180521 / beads_commercial_signal_mmz1005-h_en.fm
(3/10)
E M C
C o m p o n e n t s
Product compatible with RoHS directive
Halogen-free
Compatible with lead-free solders
Chip beads
For general signal line
Low DC resistance type
Overview of MMZ1005-H type
FEATURES
Noise reduction solution for general signal line.
This product is a low resistance than the standard "-C" series.
It's possible to reduce power loss of a circuit.
APPLICATION
Noise removal for mobile devices such as smartphones and tablet terminals, and various modules.
Noise removal for PCs and recorders, household appliances such as STBs, smart grids, and industrial equipment.
PART NUMBER CONSTRUCTION
MMZ
Series name
1005
S
L×W×T dimensions
(mm)
1005
1.0×0.5x0.5
Material name
601
H
Impedance
() at 100MHz
601
600
102
1000
Characteristic
type
H
T
000
Packaging style
Internal code
T
Taping
000
OPERATING TEMPERATURE RANGE, PACKAGE QUANTITY, PRODUCT WEIGHT
Temperature ranges
Operating
Storage
Type
temperature
temperature
(°C)
(°C)
MMZ1005-H
–55 to +125
–55 to +125
The storage temperature range is for after the circuit board is mounted.
Package quantity
Individual weight
(pieces/reel)
10,000
(mg)
1
RoHS Directive Compliant Product: See the following for more details.https://product.tdk.com/info/en/environment/rohs/index.html
Halogen-free: indicates that Cl content is less than 900ppm, Br content is less than 900ppm, and that the total Cl and Br content is less than 1500ppm.
Please be sure to request delivery specifications that provide further details on the features and specifications of the products for proper and safe use.
Please note that the contents may change without any prior notice due to reasons such as upgrading.
20180521 / beads_commercial_signal_mmz1005-h_en.fm
(4/10)
E M C
C o m p o n e n t s
MMZ1005-H type
RECOMMENDED REFLOW PROFILE
Preheating
Soldering
Natural
cooling
Peak
T: Temperature
T4
T3
T2
T3
t3
T1
t1
t2
t: Time
Preheating
Temp.
T1
T2
150°C
180°C
Time
t1
60 to 120s
Soldering
Temp.
Time
T3
t2
230°C
30 to 60s
Peak
Temp.
T4
250 to 260°C
Time
t3
10s
Please be sure to request delivery specifications that provide further details on the features and specifications of the products for proper and safe use.
Please note that the contents may change without any prior notice due to reasons such as upgrading.
20180521 / beads_commercial_signal_mmz1005-h_en.fm
(5/10)
E M C
C o m p o n e n t s
MMZ1005-H type
MATERIAL CHARACTERISTIC
S material: Standard type that features impedance characteristics similar to those of a typical ferrite core. For signal line applications in
which the blocking region is near 100MHz. Impedance values selected for effectiveness at 40 to 300MHz.
TYPICAL MATERIAL IMPEDANCE CHARACTERISTICS
2500
2000
1500
1000
S
500
0
10
100
Frequency(MHz)
1000
Please be sure to request delivery specifications that provide further details on the features and specifications of the products for proper and safe use.
Please note that the contents may change without any prior notice due to reasons such as upgrading.
20180521 / beads_commercial_signal_mmz1005-h_en.fm
(6/10)
E M C
C o m p o n e n t s
MMZ1005-H type
SHAPE & DIMENSIONS
0.5±0.05
0.5±0.05
1±0.05
0.1min.
Dimensions in mm
0.5
RECOMMENDED LAND PATTERN
0.5
0.4
0.5
Dimensions in mm
Please be sure to request delivery specifications that provide further details on the features and specifications of the products for proper and safe use.
Please note that the contents may change without any prior notice due to reasons such as upgrading.
20180521 / beads_commercial_signal_mmz1005-h_en.fm
(7/10)
E M C
C o m p o n e n t s
MMZ1005-H type
ELECTRICAL CHARACTERISTICS
CHARACTERISTICS SPECIFICATION TABLE
Impedance
[100MHz]
( )
80
120
240
600
1000
Tolerance
±25%
±25%
±25%
±25%
±25%
DC resistance
Rated current
Part No.
( )max.
0.10
0.13
0.18
0.34
0.49
(mA)max.
800
700
600
440
360
MMZ1005S800HT000
MMZ1005S121HT000
MMZ1005S241HT000
MMZ1005S601HT000
MMZ1005S102HT000
○ Measurement equipment
Measurement item
Product No.
Impedance
E4991A+16192A
DC resistance
Type-7556
* Equivalent measurement equipment may be used.
Manufacturer
Keysight Technologies
Yokogawa
Please be sure to request delivery specifications that provide further details on the features and specifications of the products for proper and safe use.
Please note that the contents may change without any prior notice due to reasons such as upgrading.
20180521 / beads_commercial_signal_mmz1005-h_en.fm
(8/10)
E M C
C o m p o n e n t s
MMZ1005-H type
ELECTRICAL CHARACTERISTICS
Z VS. FREQUENCY CHARACTERISTICS (BY SERIES)
MMZ1005S-H series
1400
MMZ1005S102H
MMZ1005S601H
1000 MMZ1005S241H
MMZ1005S121H
800 MMZ1005S800H
Impedance (Ω)
1200
600
400
200
0
1
10
100
1000
Frequency (MHz)
10000
Please be sure to request delivery specifications that provide further details on the features and specifications of the products for proper and safe use.
Please note that the contents may change without any prior notice due to reasons such as upgrading.
20180521 / beads_commercial_signal_mmz1005-h_en.fm
(9/10)
E M C
C o m p o n e n t s
MMZ1005-H type
ELECTRICAL CHARACTERISTICS
250
Z
R
X
1
10
100
1000
Frequency (MHz)
Impedance (Ω)
Impedance (Ω)
R
X
10
Z
150
R
100
X
50
10
100
1000
Frequency (MHz)
10000
400
350
300
250
200
150
100
50
0
Z
R
X
1
10
100
1000
Frequency (MHz)
10000
MMZ1005S102HT000
Z
1
200
0
10000
MMZ1005S601HT000
900
800
700
600
500
400
300
200
100
0
MMZ1005S241HT000
Impedance (Ω)
140
120
100
80
60
40
20
0
Impedance (Ω)
Impedance (Ω)
Z, X, R VS. FREQUENCY CHARACTERISTICS
MMZ1005S800HT000
MMZ1005S121HT000
100
1000
Frequency (MHz)
10000
1400
1200
1000
800
600
400
200
0
Z
R
X
1
10
100
1000
Frequency (MHz)
10000
Please be sure to request delivery specifications that provide further details on the features and specifications of the products for proper and safe use.
Please note that the contents may change without any prior notice due to reasons such as upgrading.
20180521 / beads_commercial_signal_mmz1005-h_en.fm
(10/10)
E M C
C o m p o n e n t s
MMZ1005-H type
PACKAGING STYLE
REEL DIMENSIONS
ø60min.
2.0±0.5
1.0
8.4 +2.0
–0.0
ø13±0.2
ø21±0.8
14.4max.
ø180±2.0
Dimensions in mm
4.0±0.1
B
A
8.0±0.3
2.0±0.05
3.5±0.05
1.5 +0.1
0
1.75±0.1
TAPE DIMENSIONS
P1
K
Dimensions in mm
Type
MMZ1005-H
160min.
Drawing direction
A
0.65±0.1
Taping
B
1.15±0.1
P1
2.0±0.05
K
0.8max.
200min.
300min.
Dimensions in mm
Please be sure to request delivery specifications that provide further details on the features and specifications of the products for proper and safe use.
Please note that the contents may change without any prior notice due to reasons such as upgrading.
20180521 / beads_commercial_signal_mmz1005-h_en.fm
