E M C
C o m p o n e n t s
Chip beads
For power line
Large current/Low DC resistance type
MPZ-H series
RoHS
REACH
SVHC-Free
Cl
Br
Pb
Halogen
Free
Lead
Free
MPZ1005-H type
FEATURES
Noise reduction solution for power line.
This product is a low resistance of more than 30% than 「-C」series standards.
Reduced from the -C on the standard series power loss in circuits.
Downsizing of 1608 shape easy due to the 30% or more improvement compared to the conventional power beads rated current.
Operating temperature range: –55 to +125°C
APPLICATION
Noise removal for mobile devices such as smartphones and tablet terminals, and various modules.
Noise removal for PCs and recorders, household appliances such as STBs, smart grids, and industrial equipment.
PART NUMBER CONSTRUCTION
MPZ
1005
S
330
H
T
000
Series name
L×W×T dimensions
1.0×0.5x0.5 mm
Material name
Impedance
() at 100MHz
Characteristic
type
Packaging style
Internal code
CHARACTERISTICS SPECIFICATION TABLE
Impedance
Rated current
DC resistance
Part No.
[100MHz]
( )
Tolerance
( )max.
(A)max.
33
±25%
0.022
3.0

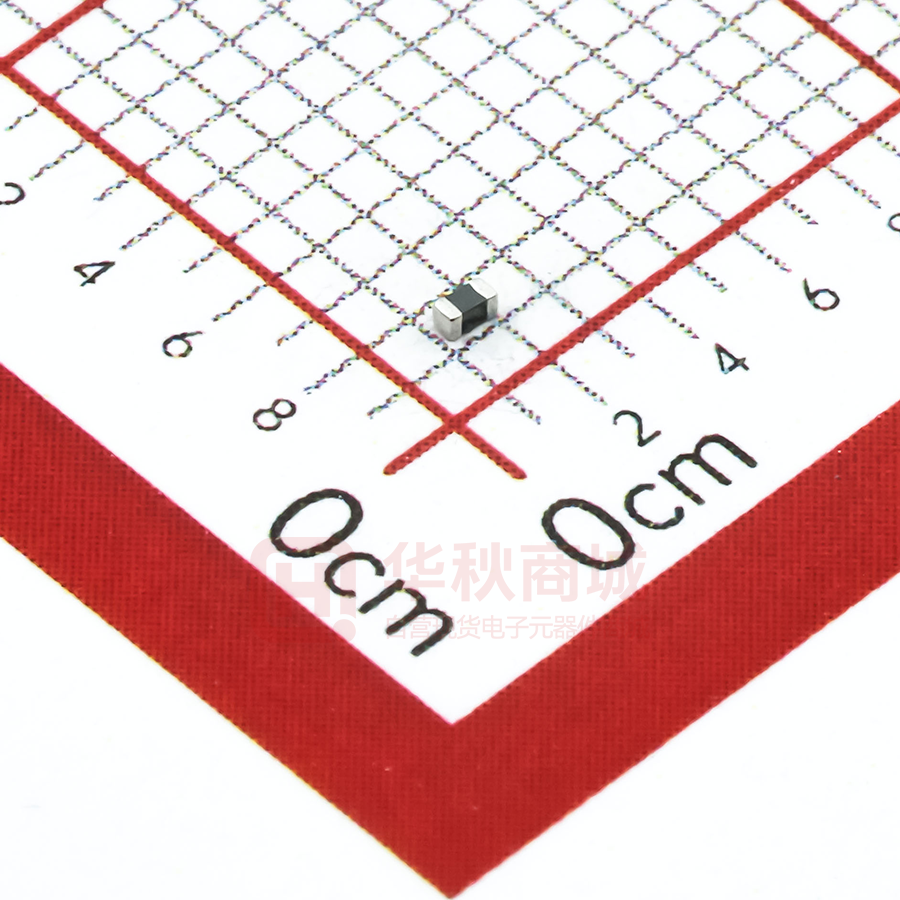

MPZ1005S330HT000
90
±25%
0.038
2.3
MPZ1005S900HT000
120
±25%
0.055
2.0
MPZ1005S121HT000
180
±25%
0.085
1.6
MPZ1005S181HT000
220
±25%
0.095
1.5
MPZ1005S221HT000
Please refer to the graph of rated current vs. temperature characteristics (derating) about the rating current at 85°C or more in temperature of the product.
Measurement equipment
Measurement item
Product No.
Impedance
E4991A+16192A
DC resistance
Type-7556
* Equivalent measurement equipment may be used.
Manufacturer
Keysight Technologies
Yokogawa
Rated current vs. temperature characteristics (derating)
3.5
Rated current (A)
3.0
2.5
2.0
S330H
S900H
S121H
S181H
1.5
S221H
1.0
0.5
0.0
–55
–35
–15
5
25
45
65
Temperature (°C)
85
105
125
Please be sure to request delivery specifications that provide further details on the features and specifications of the products for proper and safe use.
Please note that the contents may change without any prior notice due to reasons such as upgrading.
(1/4)
20190424
beads_commercial_power_mpz1005-h_en.fm
E M C
C o m p o n e n t s
MPZ1005-H type
Z VS. FREQUENCY CHARACTERISTICS (BY SERIES)
MPZ1005-H series
350
300
S221H
Impedance (Ω)
250
200
S181H
150
S121H
100
S900H
50
S330H
0
1
10
100
1000
Frequency (MHz)
10000
Z, X, R VS. FREQUENCY CHARACTERISTICS
MPZ1005S900HT000
50
Impedance (Ω)
Impedance (Ω)
60
Z
40
R
30
20
X
10
0
1
10
100
1000
Frequency (MHz)
140
120
100
80
60
40
20
0
10000
MPZ1005S181HT000
Impedance (Ω)
Impedance (Ω)
Z
200
R
150
100
X
50
0
1
10
Z
R
X
1
10
100
1000
Frequency (MHz)
10000
180
160
140
120
100
80
60
40
20
0
Z
R
X
1
10
100
1000
Frequency (MHz)
10000
MPZ1005S221HT000
300
250
MPZ1005S121HT000
Impedance (Ω)
MPZ1005S330HT000
100
1000
Frequency (MHz)
10000
350
300
250
200
150
100
50
0
Z
R
X
1
10
100
1000
Frequency (MHz)
10000
Please be sure to request delivery specifications that provide further details on the features and specifications of the products for proper and safe use.
Please note that the contents may change without any prior notice due to reasons such as upgrading.
(2/4)
20190424
beads_commercial_power_mpz1005-h_en.fm
E M C
C o m p o n e n t s
MPZ1005-H type
SHAPE & DIMENSIONS
PACKAGING STYLE
REEL DIMENSIONS
1±0.05
0.5±0.05
ø60min.
0.5±0.05
2.0±0.5
1.0
0.1min.
Dimensions in mm
8.4 +2.0
–0.0
ø13±0.2
ø21±0.8
14.4max.
ø180±2.0
RECOMMENDED LAND PATTERN
Dimensions in mm
4.0±0.1
3.5±0.05
2.0±0.05
B
8.0±0.3
1.5 +0.1
–0
1.75±0.1
Sprocket
hole
d
0.5
TAPE DIMENSIONS
0.5
0.4
0.5
K
A
Solder Resist
Cavity
2.0±0.05
Dimensions in mm
Pattern
Rated current
(A)
1.5max.
2.2max.
3.0max.
Type
MPZ1005-H
Pad thickness & d
18um 35um 70um
0.5
0.5
0.5
1.2
0.7
0.5
2.4
1.2
0.5
160min.
Dimensions in mm
RECOMMENDED REFLOW PROFILE
Preheating
Soldering
Temperature
K
0.8max.
200min.
300min.
Natural
cooling
Dimensions in mm
PACKAGE QUANTITY
Package quantity
230°C
10s
B
1.15±0.1
Drawing direction
250 to 260°C
180°C
60 to 120s
Taping
Peak
230°C
150°C
A
0.65±0.1
10,000 pcs/reel
TEMPERATURE RANGE, INDIVIDUAL WEIGHT
Operating
Storage
temperature range
temperature range
–55 to +125°C
–55 to +125°C
The storage temperature range is for after the assembly.
Individual
weight
1 mg
30 to 60s
Time
Please be sure to request delivery specifications that provide further details on the features and specifications of the products for proper and safe use.
Please note that the contents may change without any prior notice due to reasons such as upgrading.
(3/4)
20190424
beads_commercial_power_mpz1005-h_en.fm
E M C
C o m p o n e n t s
REMINDERS FOR USING THESE PRODUCTS
Before using these products, be sure to request the delivery specifications.
SAFETY REMINDERS
Please pay sufficient attention to the warnings for safe designing when using this products.
REMINDERS
The storage period is within 12 months. Be sure to follow the storage conditions (temperature: 5 to 40°C, humidity: 10 to 75% RH or
less).
If the storage period elapses, the soldering of the terminal electrodes may deteriorate.
Do not use or store in locations where there are conditions such as gas corrosion (salt, acid, alkali, etc.).
Before soldering, be sure to preheat components.
The preheating temperature should be set so that the temperature difference between the solder temperature and chip temperature
does not exceed 150°C.
Soldering corrections after mounting should be within the range of the conditions determined in the specifications.
If overheated, a short circuit, performance deterioration, or lifespan shortening may occur.
When embedding a printed circuit board where a chip is mounted to a set, be sure that residual stress is not given to the chip due to
the overall distortion of the printed circuit board and partial distortion such as at screw tightening portions.
Self heating (temperature increase) occurs when the power is turned ON, so the tolerance should be sufficient for the set thermal
design.
Carefully lay out the coil for the circuit board design of the non-magnetic shield type.
A malfunction may occur due to magnetic interference.
Use a wrist band to discharge static electricity in your body through the grounding wire.
Do not expose the products to magnets or magnetic fields.
Do not use for a purpose outside of the contents regulated in the delivery specifications.
The products listed on this catalog are intended for use in general electronic equipment (AV equipment, telecommunications equipment, home appliances, amusement equipment, computer equipment, personal equipment, office equipment, measurement equipment, industrial robots) under a normal operation and use condition.
The products are not designed or warranted to meet the requirements of the applications listed below, whose performance and/or quality require a more stringent level of safety or reliability, or whose failure, malfunction or trouble could cause serious damage to society,
person or property.
If you intend to use the products in the applications listed below or if you have special requirements exceeding the range or conditions
set forth in the each catalog, please contact us.
(1) Aerospace/aviation equipment
(2) Transportation equipment (cars, electric trains, ships, etc.)
(3) Medical equipment
(4) Power-generation control equipment
(5) Atomic energy-related equipment
(6) Seabed equipment
(7) Transportation control equipment
(8) Public information-processing equipment
(9) Military equipment
(10) Electric heating apparatus, burning equipment
(11) Disaster prevention/crime prevention equipment
(12) Safety equipment
(13) Other applications that are not considered general-purpose
applications
When designing your equipment even for general-purpose applications, you are kindly requested to take into consideration securing protection circuit/device or providing backup circuits in your equipment.
Please be sure to request delivery specifications that provide further details on the features and specifications of the products for proper and safe use.
Please note that the contents may change without any prior notice due to reasons such as upgrading.
(4/4)
20190424
beads_commercial_power_mpz1005-h_en.fm
