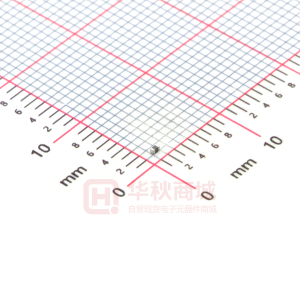

MPZ1005S300C

(1/2) Chip Beads(SMD) For Power Line MPZ Series MPZ1005 Type FEATURES • TDK has manufactured MPZ1005 type as EMI countermeasure product for power line. • This type is the best for energy-saving in the low DC resistance. • No cross talk with closed magnetic circuit structural design. • It is a product conforming to RoHS directive. APPLICATIONS USB, cellular phones, HDDs, CD-ROMs, DVDs, DSCs, LCD panels, etc. PRODUCT IDENTIFICATION MPZ 1005 S 121 C T (1) (2) (3) (4) (5) (6) (1) Series name (2) Dimensions L× W (3) Material code (4) Nominal impedance [at 100MHz] (5) Characteristic type (6) Packaging style T:Taping(reel) RECOMMENDED SOLDERING CONDITION REFLOW SOLDERING Conformity to RoHS Directive SHAPES AND DIMENSIONS/RECOMMENDED PC BOARD PATTERN 1± 0.05 0.5 ± 0.05 0.5 0.1min. 0.5 ± 0.05 0.45 0.5 0.45 Weight: 1mg Dimensions in mm TEMPERATURE RANGES Operating/storage –40 to +85°C PACKAGING STYLE AND QUANTITIES Packaging style Taping Quantity 10000 pieces/reel 10s max. 250 to 260˚C 230˚C Natural cooling 180˚C 150˚C Preheating 60 to 120s Time(s) Soldering 30 to 60s HANDLING AND PRECAUTIONS • Before soldering, be sure to preheat components. The preheating temperature should be set so that the temperature difference between the solder temperature and product temperature does not exceed 150°C. • After mounting components onto the printed circuit board, do not apply stress through board bending or mishandling. • The inductance value may change due to magnetic saturation if the current exceeds the rated maximum. • Do not expose the inductors to stray magnetic fields. • Avoid static electricity discharge during handling. • When hand soldering, apply the soldering iron to the printed circuit board only. Temperature of the iron tip should not exceed 350°C. Soldering time should not exceed 3 seconds. ELECTRICAL CHARACTERISTICS Part No. MPZ1005S100C MPZ1005S300C MPZ1005S600C MPZ1005S121C ∗ Impedance (Ω)[100MHz]∗ 10±5Ω 30±10Ω 60±25% 120±25% DC resistance (Ω)max. 0.045 0.050 0.075 0.090 Rated current (A)max. 2.0 1.7 1.5 1.2 Test equipment: E4991A or equivalent Test tool: 16192A or equivalent • Conformity to RoHS Directive: This means that, in conformity with EU Directive 2002/95/EC, lead, cadmium, mercury, hexavalent chromium, and specific bromine-based flame retardants, PBB and PBDE, have not been used, except for exempted applications. • Please contact our Sales office when your application are considered the following: The device’s failure or malfunction may directly endanger human life (e.g. application for automobile/aircraft/medical/nuclear power devices, etc.) • All specifications are subject to change without notice. 001-05 / 20061022 / e9413_mpz1005.fm (2/2) TYPICAL ELECTRICAL CHARACTERISTICS Z, X, R vs. FREQUENCY CHARACTERISTICS MPZ1005S100C MPZ1005S300C 20 18 16 14 12 10 8 6 4 2 0 60 50 Impedance (Ω) Z R 40 30 20 10 10000 0 1 10 X 100 1000 Frequency (MHz) 10000 Z R MPZ1005S600C 100 90 80 70 60 50 40 30 20 10 0 Impedance (Ω) Impedance (Ω) Z R X 1 10 100 1000 Frequency (MHz) X 1 10 100 1000 Frequency (MHz) 10000 MPZ1005S121C 200 180 160 140 120 100 80 60 40 20 0 Impedance (Ω) Z R X 1 10 100 1000 Frequency (MHz) 10000 PACKAGING STYLES REEL DIMENSIONS TAPE DIMENSIONS Sprocket hole 1.5 +0.1 –0.0 Cavity 1.75±0.1 300min. Dimensions in mm 1.15±0.1 3.5±0.05 8.0±0.3 0.8max. 0.65± 0.1 4.0± 0.1 2.0± 0.05 2.0± 0.05 160min. Taping 200min. 1.0 2.0± 0.5 ø13± 0.5 ø21± 0.8 ø178± 2.0 9.0± 0.3 13.0± 1.4 ø60± 2.0 Dimensions in mm Drawing direction • All specifications are subject to change without notice. 001-05 / 20061022 / e9413_mpz1005.fm
