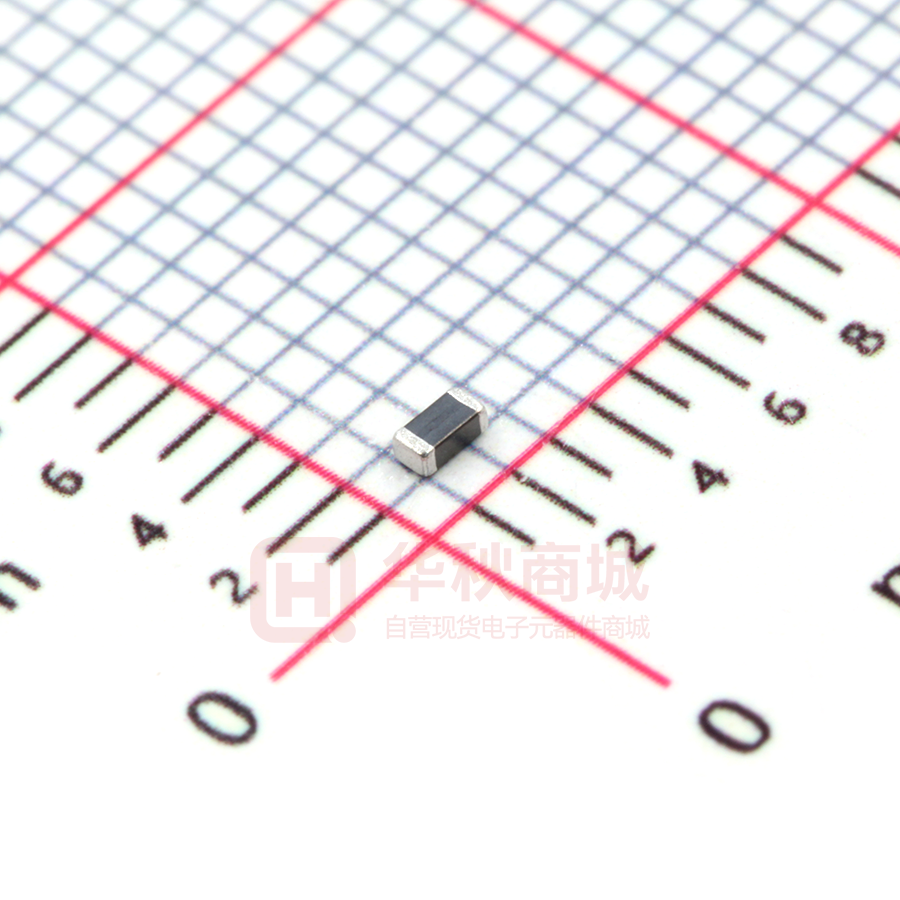

MPZ1608S300ATAH0

E M C C o m p o n e n t s Chip beads For power line MPZ series RoHS REACH SVHC-Free Cl Br Pb Halogen Free Lead Free MPZ1608 type FEATURES Noise reduction solution for power line. Compared to the MMZ series, has low direct current resistance for compatibility with large currents, optimal for low power consumption. Various frequency characteristics with 5 materials of different features for countermeasures against everything from general signals to high-speed signals. Performs well even in signal lines where low direct current resistance is required. Operating temperature range: –55 to +125°C APPLICATION Noise removal for mobile devices such as smartphones and tablet terminals, and various modules. Noise removal for PCs and recorders, household appliances such as STBs, smart grids, and industrial equipment. PART NUMBER CONSTRUCTION MPZ 1608 B Series name L×W×T dimensions 1.6×0.8×0.6 mm 1.6×0.8×0.8 mm Material name 471 Impedance () at 100MHz A T A00 Characteristic type Packaging style Internal code Please be sure to request delivery specifications that provide further details on the features and specifications of the products for proper and safe use. Please note that the contents may change without any prior notice due to reasons such as upgrading. (1/7) 20190424 beads_commercial_power_mpz1608_en.fm E M C C o m p o n e n t s MPZ1608 type CHARACTERISTICS SPECIFICATION TABLE Impedance Rated current DC resistance Thickness T Part No. [100MHz] ( ) Tolerance ( )max. (A)max. (mm) 470 ±25% 0.150 1.0 0.8 26 ±25% 0.007 6.0 0.6 30 ±10 0.010 5.0 0.6 60 ±25% 0.020 3.5 0.6 100 ±25% 0.030 3.0 0.6 120 ±25% 0.045 2.0 0.6 180 ±25% 0.050 2.0 0.6 220 ±25% 0.050 2.2 0.8 330 ±25% 0.080 1.7 0.8 470 ±25% 0.150 1.0 0.8 600 ±25% 0.150 1.0 0.8 1000 ±25% 0.300 0.8 0.8 390 ±25% 0.120 1.2 0.8 60 ±25% 0.030 2.3 0.8 100 ±25% 0.040 2.0 0.8 150 ±25% 0.050 1.8 0.8 220 ±25% 0.100 1.5 0.8 30 ±10 0.060 1.8 0.8 60 ±25% 0.100 1.2 0.8 100 ±25% 0.150 1.0 0.8  Please refer to the graph of rated current vs. temperature characteristics (derating) about the rating current at 85°C or more MPZ1608B471ATA00 MPZ1608S260ATAH0 MPZ1608S300ATAH0 MPZ1608S600ATAH0 MPZ1608S101ATAH0 MPZ1608S121ATAH0 MPZ1608S181ATAH0 MPZ1608S221ATA00 MPZ1608S331ATA00 MPZ1608S471ATA00 MPZ1608S601ATA00 MPZ1608S102ATA00 MPZ1608R391ATA00 MPZ1608Y600BTA00 MPZ1608Y101BTA00 MPZ1608Y151BTA00 MPZ1608Y221BTA00 MPZ1608D300BTA00 MPZ1608D600BTA00 MPZ1608D101BTA00 in temperature of the product. Measurement equipment Measurement item Product No. Impedance E4991A+16192A DC resistance Type-7556 ＊ Equivalent measurement equipment may be used. Manufacturer Keysight Technologies Yokogawa Rated current vs. temperature characteristics (derating) 7 Rated current (A) 6 5 4 3 2 1 0 –55 –35 –15 5 25 45 65 Temperature (°C) 85 105 125 S260A S300A S600A S101A Y600B S221A S121A,S181A,Y101B S331A Y221B Y151B,D300B R391A,D600B B471A,S471A,S601A,D101B S102A Please be sure to request delivery specifications that provide further details on the features and specifications of the products for proper and safe use. Please note that the contents may change without any prior notice due to reasons such as upgrading. (2/7) 20190424 beads_commercial_power_mpz1608_en.fm E M C C o m p o n e n t s MPZ1608 type Z VS. FREQUENCY CHARACTERISTICS (BY SERIES) MPZ1608B series 500 MPZ1608S series 1200 MPZ1608B471A MPZ1608S331A MPZ1608S221A MPZ1608S181A 900 MPZ1608S121A 800 MPZ1608S101A MPZ1608S600A 700 MPZ1608S260A MPZ1608S300A MPZ1608R series 500 MPZ1608S102A MPZ1608R391A 1000 300 200 400 MPZ1608S471A Impedance (Ω) Impedance (Ω) Impedance (Ω) 400 MPZ1608S601A 600 500 400 300 200 300 100 100 200 100 0 1 10 100 1000 Frequency (MHz) 0 1 10000 MPZ1608Y series 100 1000 Frequency (MHz) 600 0 1 10 100 1000 Frequency (MHz) 10000 MPZ1608D101B MPZ1608Y221B 300 500 MPZ1608Y151B Impedance (Ω) 250 MPZ1608Y101B 200 150 100 400 MPZ1608D600B 300 200 100 50 MPZ1608Y600B 0 10000 MPZ1608D series 350 Impedance (Ω) 10 1 10 100 1000 Frequency (MHz) 10000 0 1 10 MPZ1608D300B 100 1000 10000 Frequency (MHz) Please be sure to request delivery specifications that provide further details on the features and specifications of the products for proper and safe use. Please note that the contents may change without any prior notice due to reasons such as upgrading. (3/7) 20190424 beads_commercial_power_mpz1608_en.fm E M C C o m p o n e n t s MPZ1608 type Z, X, R VS. FREQUENCY CHARACTERISTICS MPZ1608S260ATAH0 Z 300 R 100 X 10 100 1000 Frequency (MHz) 10000 MPZ1608S600ATAH0 Impedance (Ω) Impedance (Ω) Z 60 R 40 20 0 X 1 10 100 1000 Frequency (MHz) 10000 100 50 10 100 1000 Frequency (MHz) Z 10 100 1000 Frequency (MHz) MPZ1608R391ATA00 Impedance (Ω) 400 Z 300 R 100 0 X 1 10 R 100 1000 Frequency (MHz) 10000 10 100 1000 Frequency (MHz) Z 100 10000 R 50 X 800 700 600 500 400 300 200 100 0 1 140 120 100 80 60 40 20 0 0 X 1 10 100 1000 Frequency (MHz) 10000 1 10 100 1000 Frequency (MHz) 10000 450 400 350 300 250 200 150 100 50 0 Z R X 1 10 100 1000 Frequency (MHz) 10000 MPZ1608S102ATA00 1200 1000 Z R X 10 100 1000 Frequency (MHz) 800 Z 600 R 400 200 0 10000 MPZ1608Y600BTA00 500 200 Z 50 0 10000 1 MPZ1608S331ATA00 MPZ1608S601ATA00 R X 150 10000 100 10000 X 1 100 1000 Frequency (MHz) 150 Impedance (Ω) 700 600 500 400 300 200 100 0 10 200 X MPZ1608S471ATA00 Impedance (Ω) 1 250 R R X MPZ1608S221ATA00 Z Z MPZ1608S121ATAH0 R 300 1 10000 Z 250 0 100 1000 Frequency (MHz) 40 35 30 25 20 15 10 5 0 200 300 150 Impedance (Ω) 160 140 120 100 80 60 40 20 0 Impedance (Ω) Impedance (Ω) MPZ1608S181ATAH0 200 10 MPZ1608S101ATAH0 100 80 X Impedance (Ω) 1 R Impedance (Ω) 0 Z Impedance (Ω) 200 40 35 30 25 20 15 10 5 0 1 MPZ1608S300ATAH0 X 1 10 100 1000 Frequency (MHz) 10000 MPZ1608Y101BTA00 200 Impedance (Ω) Impedance (Ω) 400 Impedance (Ω) 500 Impedance (Ω) MPZ1608B471ATA00 Z R 10 100 1000 Frequency (MHz) Z 100 R 50 X X 1 150 10000 0 1 10 100 1000 Frequency (MHz) Please be sure to request delivery specifications that provide further details on the features and specifications of the products for proper and safe use. Please note that the contents may change without any prior notice due to reasons such as upgrading. 10000 (4/7) 20190424 beads_commercial_power_mpz1608_en.fm E M C C o m p o n e n t s MPZ1608 type Z, X, R VS. FREQUENCY CHARACTERISTICS MPZ1608Y221BTA00 250 Z 200 150 R 100 50 0 Impedance (Ω) Impedance (Ω) 300 X 1 10 100 1000 Frequency (MHz) 10000 250 Z R X 1 10 100 1000 Frequency (MHz) 10000 200 150 Z 100 50 0 R X 1 10 100 1000 Frequency (MHz) 10000 MPZ1608D101BTA00 600 350 300 250 200 150 100 50 0 Impedance (Ω) Impedance (Ω) MPZ1608D600BTA00 350 300 250 200 150 100 50 0 MPZ1608D300BTA00 Impedance (Ω) MPZ1608Y151BTA00 Z X R 500 400 200 100 0 1 10 100 1000 Frequency (MHz) 10000 Z 300 1 10 R X 100 1000 Frequency (MHz) 10000 Please be sure to request delivery specifications that provide further details on the features and specifications of the products for proper and safe use. Please note that the contents may change without any prior notice due to reasons such as upgrading. (5/7) 20190424 beads_commercial_power_mpz1608_en.fm E M C C o m p o n e n t s MPZ1608 type PACKAGING STYLE SHAPE & DIMENSIONS REEL DIMENSIONS 1.6±0.15 T ø60min. 0.8±0.15 2.0±0.5 Thickness(T) 0.6±0.15mm 0.8±0.15mm 0.3±0.2 1.0 8.4 +2.0 –0.0 ø13±0.2 ø21±0.8 Dimensions in mm 14.4max. ø180±2.0 Dimensions in mm 2.0±0.05 4.0±0.1 0.6 8.0±0.3 0.8 B 0.6 3.5±0.05 1.5 +0.1 –0 0.8 Sprocket hole 1.75±0.1 TAPE DIMENSIONS RECOMMENDED LAND PATTERN Dimensions in mm 4.0±0.1 A K Cavity Dimensions in mm RECOMMENDED REFLOW PROFILE Preheating Soldering Natural cooling Type MPZ1608 A 1.1±0.2 160min. Taping B 1.9±0.2 K 1.1max. 200min. Peak 250 to 260°C Temperature 230°C 230°C 300min. Drawing direction Dimensions in mm PACKAGE QUANTITY 180°C 10s 150°C 60 to 120s 30 to 60s Package quantity TEMPERATURE RANGE, INDIVIDUAL WEIGHT Operating Storage temperature range temperature range t=0.6mm –55 to +125°C –55 to +125°C t=0.8mm –55 to +125°C –55 to +125°C  The storage temperature range is for after the assembly. Type Time 4,000 pcs/reel Individual weight 3 mg 4 mg Please be sure to request delivery specifications that provide further details on the features and specifications of the products for proper and safe use. Please note that the contents may change without any prior notice due to reasons such as upgrading. (6/7) 20190424 beads_commercial_power_mpz1608_en.fm E M C C o m p o n e n t s REMINDERS FOR USING THESE PRODUCTS Before using these products, be sure to request the delivery specifications. SAFETY REMINDERS Please pay sufficient attention to the warnings for safe designing when using this products. REMINDERS The storage period is within 12 months. Be sure to follow the storage conditions (temperature: 5 to 40°C, humidity: 10 to 75% RH or less). If the storage period elapses, the soldering of the terminal electrodes may deteriorate. Do not use or store in locations where there are conditions such as gas corrosion (salt, acid, alkali, etc.). Before soldering, be sure to preheat components. The preheating temperature should be set so that the temperature difference between the solder temperature and chip temperature does not exceed 150°C. Soldering corrections after mounting should be within the range of the conditions determined in the specifications. If overheated, a short circuit, performance deterioration, or lifespan shortening may occur. When embedding a printed circuit board where a chip is mounted to a set, be sure that residual stress is not given to the chip due to the overall distortion of the printed circuit board and partial distortion such as at screw tightening portions. Self heating (temperature increase) occurs when the power is turned ON, so the tolerance should be sufficient for the set thermal design. Carefully lay out the coil for the circuit board design of the non-magnetic shield type. A malfunction may occur due to magnetic interference. Use a wrist band to discharge static electricity in your body through the grounding wire. Do not expose the products to magnets or magnetic fields. Do not use for a purpose outside of the contents regulated in the delivery specifications. The products listed on this catalog are intended for use in general electronic equipment (AV equipment, telecommunications equipment, home appliances, amusement equipment, computer equipment, personal equipment, office equipment, measurement equipment, industrial robots) under a normal operation and use condition. The products are not designed or warranted to meet the requirements of the applications listed below, whose performance and/or quality require a more stringent level of safety or reliability, or whose failure, malfunction or trouble could cause serious damage to society, person or property. If you intend to use the products in the applications listed below or if you have special requirements exceeding the range or conditions set forth in the each catalog, please contact us. (1) Aerospace/aviation equipment (2) Transportation equipment (cars, electric trains, ships, etc.) (3) Medical equipment (4) Power-generation control equipment (5) Atomic energy-related equipment   (6) Seabed equipment (7) Transportation control equipment (8) Public information-processing equipment (9) Military equipment (10) Electric heating apparatus, burning equipment (11) Disaster prevention/crime prevention equipment (12) Safety equipment (13) Other applications that are not considered general-purpose applications When designing your equipment even for general-purpose applications, you are kindly requested to take into consideration securing protection circuit/device or providing backup circuits in your equipment. Please be sure to request delivery specifications that provide further details on the features and specifications of the products for proper and safe use. Please note that the contents may change without any prior notice due to reasons such as upgrading. (7/7) 20190424 beads_commercial_power_mpz1608_en.fm
