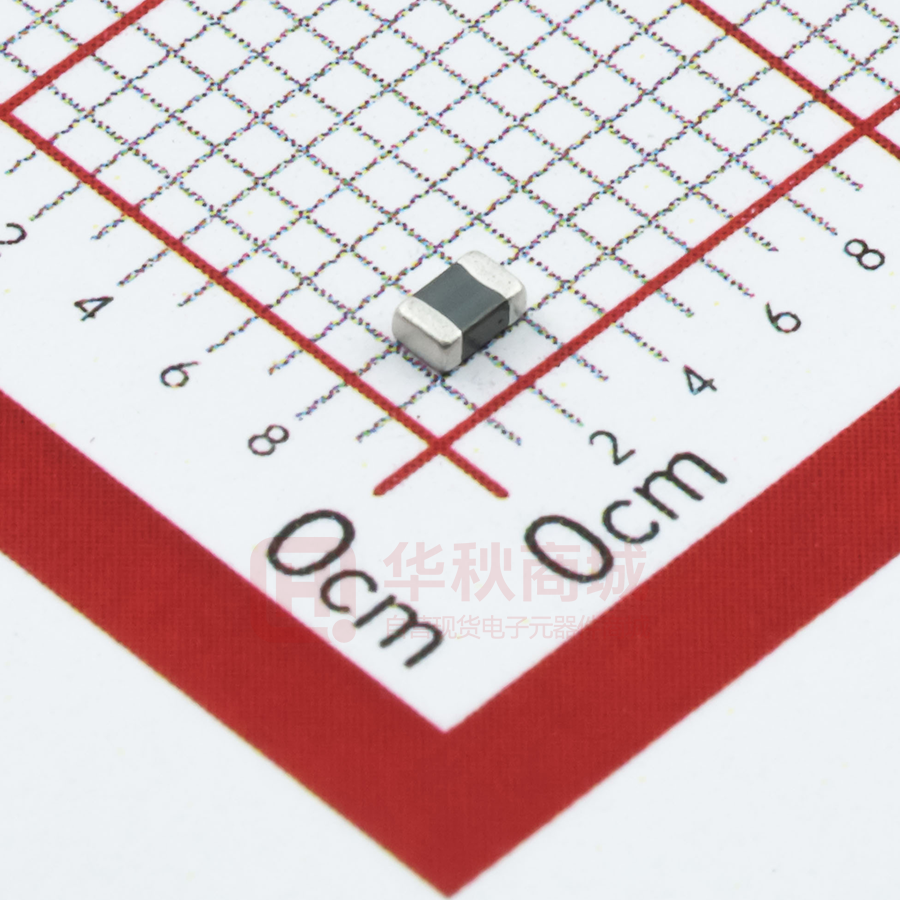

MPZ2012S300AT000

E M C C o m p o n e n t s July 2016 Chip beads For power line MPZ series MPZ2012 MPZ2012 Type 2012[0805 inch]* * Dimensions code Dimensions code JIS[EIA] (2/10) E M C C o m p o n e n t s Reminders for using these products Before using these products, be sure to request the delivery specifications. Safety reminders Please pay sufficient attention to the warnings for safe designing when using this products. Reminders The storage period is less than 12 months.Be sure to follow the storage conditions (temperature:5 to 40°C, humidity:10 to 75% RH or less). If the storage period elapses, the soldering of the terminal electrodes may deteriorate. Do not use or store in locations where there are conditions such as gas corrosion (salt, acid, alkali, etc.). Before soldering, be sure to preheat components. The preheating temperature should be set so that the temperature difference between the solder temperature and chip temperature does not exceed 150°C. Soldering corrections after mounting should be within the range of the conditions determined in the specifications. If overheated, a short circuit, performance deterioration, or lifespan shortening may occur. When embedding a printed circuit board where a chip is mounted to a set, be sure that residual stress is not given to the chip due to the overall distortion of the printed circuit board and partial distortion such as at screw tightening portions. Self heating (temperature increase) occurs when the power is turned ON, so the tolerance should be sufficient for the set thermal design. Carefully lay out the coil for the circuit board design of the non-magnetic shield type. A malfunction may occur due to magnetic interference. Use a wrist band to discharge static electricity in your body through the grounding wire. Do not expose the products to magnets or magnetic fields. Do not use for a purpose outside of the contents regulated in the delivery specifications. The products listed on this catalog are intended for use in general electronic equipment (AV equipment, telecommunications equipment, home appliances, amusement equipment, computer equipment, personal equipment, office equipment, measurement equipment, industrial robots) under a normal operation and use condition. The products are not designed or warranted to meet the requirements of the applications listed below, whose performance and/or quality require a more stringent level of safety or reliability, or whose failure, malfunction or trouble could cause serious damage to society, person or property. If you intend to use the products in the applications listed below or if you have special requirements exceeding the range or conditions set forth in the each catalog, please contact us. (1) Aerospace/aviation equipment (2) Transportation equipment (cars, electric trains, ships, etc.) (3) Medical equipment (4) Power-generation control equipment (5) Atomic energy-related equipment   (6) Seabed equipment (7) Transportation control equipment (8) Public information-processing equipment (9) Military equipment (10) Electric heating apparatus, burning equipment (11) Disaster prevention/crime prevention equipment (12) Safety equipment (13) Other applications that are not considered general-purpose applications When designing your equipment even for general-purpose applications, you are kindly requested to take into consideration securing protection circuit/device or providing backup circuits in your equipment. 20160722 / beads_commercial_power_mpz2012_en.fm (3/10) E M C C o m p o n e n t s Product compatible with RoHS directive Halogen-free Compatible with lead-free solders Chip beads For power line Overview of MPZ2012 type FEATURES Noise reduction solution for power line. Compared to the MMZ series, has low direct current resistance for compatibility with large currents, optimal for low power consumption. Performs well even in signal lines where low direct current resistance is required. APPLICATION Noise removal for mobile devices such as smartphones and tablet terminals, and various modules. Noise removal for PCs and recorders, household appliances such as STBs, smart grids, and industrial equipment. PART NUMBER CONSTRUCTION MPZ Series name 2012 S L×W×T dimensions (mm) 2012 2.0×1.25x0.85 Material name S 300 A Impedance () at 100MHz 300 30 221 220 Characteristic type A T 000 Packaging style Internal code T Taping 000 OPERATING TEMPERATURE RANGE, PACKAGE QUANTITY, PRODUCT WEIGHT Temperature ranges Operating Storage Type temperature temperature （°C） （°C） MPZ2012 –55 to +125 –55 to +125 The storage temperature range is for after the circuit board is mounted. Package quantity Individual weight (pieces/reel) 4,000 （mg） 8 RoHS Directive Compliant Product: See the following for more details.https://product.tdk.com/info/en/environment/rohs/index.html Halogen-free: indicates that Cl content is less than 900ppm, Br content is less than 900ppm, and that the total Cl and Br content is less than 1500ppm. Please be sure to request delivery specifications that provide further details on the features and specifications of the products for proper and safe use. Please note that the contents may change without any prior notice due to reasons such as upgrading. 20160722 / beads_commercial_power_mpz2012_en.fm (4/10) E M C C o m p o n e n t s MPZ2012 type RECOMMENDED REFLOW PROFILE Preheating Soldering Natural cooling Peak T: Temperature T4 T3 T2 T3 t3 T1 t1 t2 t: Time Preheating Temp. T1 T2 150°C 180°C Time t1 60 to 120s Soldering Temp. Time T3 t2 230°C 30 to 60s Peak Temp. T4 250 to 260°C Time t3 10s Please be sure to request delivery specifications that provide further details on the features and specifications of the products for proper and safe use. Please note that the contents may change without any prior notice due to reasons such as upgrading. 20160722 / beads_commercial_power_mpz2012_en.fm (5/10) E M C C o m p o n e n t s MPZ2012 type MATERIAL CHARACTERISTIC S material: Standard type that features impedance characteristics similar to those of a typical ferrite core. For signal line applications in which the blocking region is near 100MHz. Impedance values selected for effectiveness at 40 to 300MHz. TYPICAL MATERIAL IMPEDANCE CHARACTERISTICS  2500 2000 1500 1000 S 500 0 10 100 Frequency(MHz) 1000 Please be sure to request delivery specifications that provide further details on the features and specifications of the products for proper and safe use. Please note that the contents may change without any prior notice due to reasons such as upgrading. 20160722 / beads_commercial_power_mpz2012_en.fm (6/10) E M C C o m p o n e n t s MPZ2012 type SHAPE & DIMENSIONS 0.85±0.2 1.25±0.2 2.0±0.2 0.5±0.3 Dimensions in mm 1.2 RECOMMENDED LAND PATTERN 0.8 1 0.8 Dimensions in mm Please be sure to request delivery specifications that provide further details on the features and specifications of the products for proper and safe use. Please note that the contents may change without any prior notice due to reasons such as upgrading. 20160722 / beads_commercial_power_mpz2012_en.fm (7/10) E M C C o m p o n e n t s MPZ2012 type ELECTRICAL CHARACTERISTICS CHARACTERISTICS SPECIFICATION TABLE Impedance [100MHz] ( ) 30 100 220 330 600 1000  Tolerance ±10 ±25% ±25% ±25% ±25% ±25% DC resistance Rated current Part No. ( )max. 0.010 0.020 0.040 0.050 0.100 0.150 (A)max. 6 4 3 2.5 2 1.5 MPZ2012S300AT000 MPZ2012S101AT000 MPZ2012S221AT000 MPZ2012S331AT000 MPZ2012S601AT000 MPZ2012S102AT000 Please refer to the graph of rated current vs. temperature characteristics (derating) about the rating current at 85°C or more in temperature of the product. ○ Measurement equipment Measurement item Product No. Impedance E4991A+16192A DC resistance Type-7556 ＊ Equivalent measurement equipment may be used. Manufacturer Keysight Technologies Yokogawa ○ Rated current vs. temperature characteristics (derating) 7 Rated current (A) 6 S300A 5 4 3 2 S101A S221A S331A S601A S102A 1 0 –55 –35 –15 5 25 45 65 Temperature (°C) 85 105 125 Please be sure to request delivery specifications that provide further details on the features and specifications of the products for proper and safe use. Please note that the contents may change without any prior notice due to reasons such as upgrading. 20160722 / beads_commercial_power_mpz2012_en.fm (8/10) E M C C o m p o n e n t s MPZ2012 type ELECTRICAL CHARACTERISTICS Z VS. FREQUENCY CHARACTERISTICS (BY SERIES) MPZ2012S series 1200 1100 MPZ2012S221A 1000 MPZ2012S102A Impedance (Ω) MPZ2012S101A 900 MPZ2012S300A 800 MPZ2012S601A MPZ2012S331A 700 600 500 400 300 200 100 0 1 10 100 1000 Frequency (MHz) 10000 Please be sure to request delivery specifications that provide further details on the features and specifications of the products for proper and safe use. Please note that the contents may change without any prior notice due to reasons such as upgrading. 20160722 / beads_commercial_power_mpz2012_en.fm (9/10) E M C C o m p o n e n t s MPZ2012 type ELECTRICAL CHARACTERISTICS Z, X, R VS. FREQUENCY CHARACTERISTICS MPZ2012S300AT000 MPZ2012S101AT000 30 R 20 10 0 X 1 10 100 1000 Frequency (MHz) 10000 400 350 300 250 200 150 100 50 0 Z R X 1 10 Z R X 1 10 100 1000 Frequency (MHz) 100 1000 Frequency (MHz) 10000 700 600 500 400 300 200 100 0 250 200 Z 150 R 100 50 0 10000 MPZ2012S601AT000 Impedance (Ω) Impedance (Ω) MPZ2012S331AT000 300 Impedance (Ω) Z 140 120 100 80 60 40 20 0 X 1 10 100 1000 Frequency (MHz) 10000 MPZ2012S102AT000 1200 Impedance (Ω) Impedance (Ω) 40 Impedance (Ω) 50 MPZ2012S221AT000 Z R X 1 10 100 1000 Frequency (MHz) 10000 1000 Z 800 R 600 400 200 0 X 1 10 100 1000 Frequency (MHz) 10000 Please be sure to request delivery specifications that provide further details on the features and specifications of the products for proper and safe use. Please note that the contents may change without any prior notice due to reasons such as upgrading. 20160722 / beads_commercial_power_mpz2012_en.fm (10/10) E M C C o m p o n e n t s MPZ2012 type PACKAGING STYLE REEL DIMENSIONS ø60min. 2.0±0.5 1.0 8.4 +2.0 –0.0 ø13±0.2 ø21±0.8 14.4max. ø180±2.0 Dimensions in mm 4.0±0.1 B A 8.0±0.3 2.0±0.05 3.5±0.05 1.5 +0.1 0 1.75±0.1 TAPE DIMENSIONS P1 K Dimensions in mm Type MPZ2012 160min. Drawing direction A 1.5±0.2 Taping B 2.3±0.2 P1 4.0±0.1 K 1.1max. 200min. 300min. Dimensions in mm Please be sure to request delivery specifications that provide further details on the features and specifications of the products for proper and safe use. Please note that the contents may change without any prior notice due to reasons such as upgrading. 20160722 / beads_commercial_power_mpz2012_en.fm
