E M C
C o m p o n e n t s
Chip beads
For power line
MPZ series (for automotive)
RoHS
REACH
SVHC-Free
Cl
Br
Pb
Halogen
Free
Lead
Free
AEC-Q200

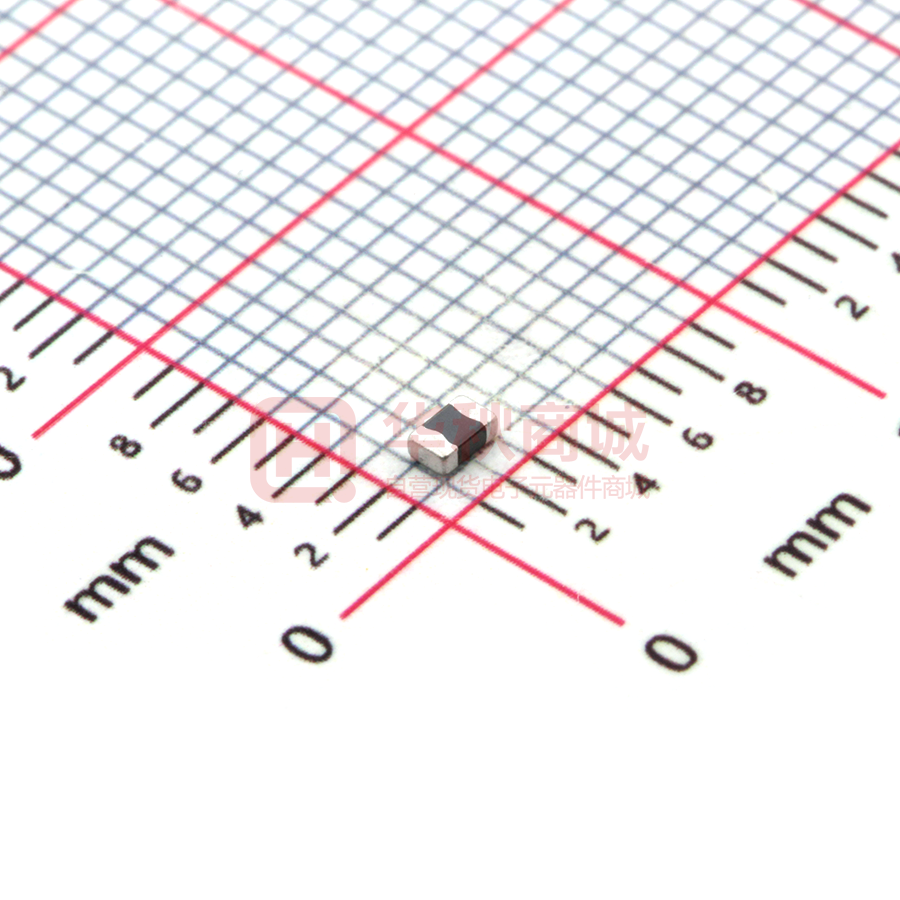

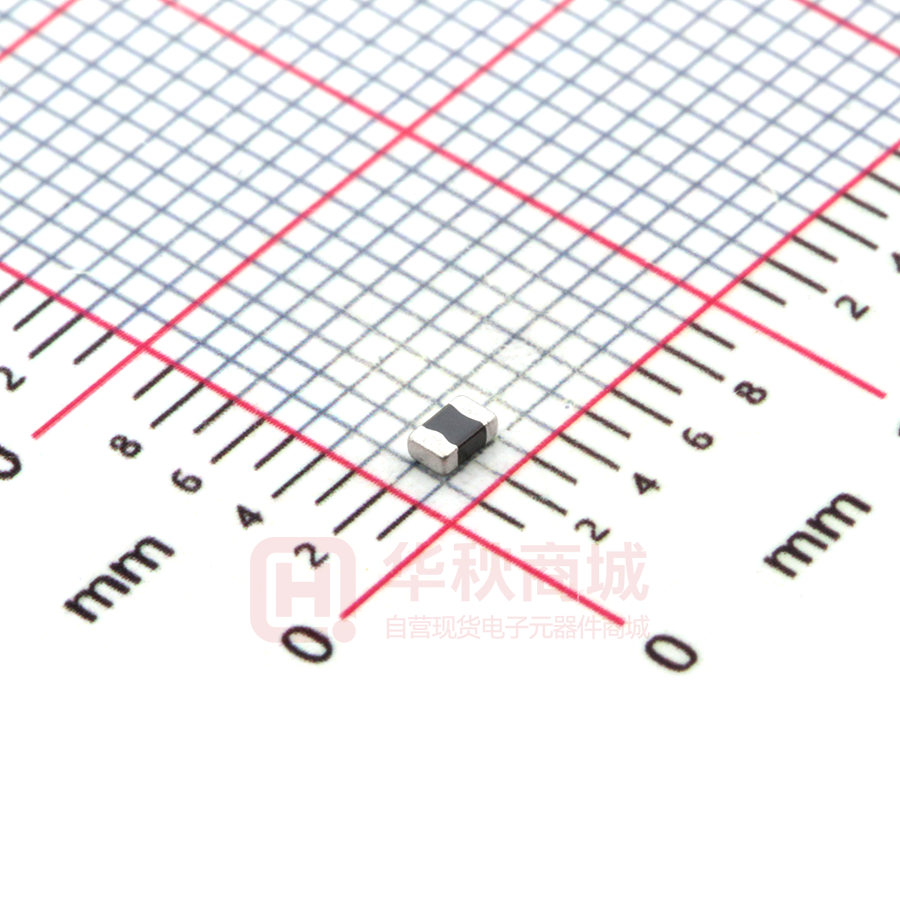

MPZ2012 type
FEATURES
Noise reduction solution for power line.
Compared to the MMZ series, has low direct current resistance for compatibility with large currents, optimal for low power consumption.
Performs well even in signal lines where low direct current resistance is required.
Operating temperature range: –55 to +125°C
APPLICATION
Various ECUs, powertrains, body controls, and car multimedia (telematics).
PART NUMBER CONSTRUCTION
MPZ
2012
S
101
A
T
D25
Series name
L×W×T dimensions
2.0×1.25x0.85 mm
Material name
Impedance
() at 100MHz
Characteristic
type
Packaging style
Internal code
CHARACTERISTICS SPECIFICATION TABLE
Impedance
DC resistance
Rated current
Part No.
[100MHz]
( )
Tolerance
( )max.
(A)max.
30
±10
0.010
6
MPZ2012S300ATD25
100
±25%
0.020
4
MPZ2012S101ATD25
220
±25%
0.040
3
MPZ2012S221ATD25
330
±25%
0.050
2.5
MPZ2012S331ATD25
600
±25%
0.100
2
MPZ2012S601ATD25
1000
±25%
0.150
1.5
MPZ2012S102ATD25
Please refer to the graph of rated current vs. temperature characteristics (derating) about the rating current at 85°C or more in temperature of the product.
Measurement equipment
Measurement item
Product No.
Impedance
E4991A+16192A
DC resistance
Type-7556
* Equivalent measurement equipment may be used.
Manufacturer
Keysight Technologies
Yokogawa
Rated current vs. temperature characteristics (derating)
7
Rated current (A)
6
S300A
5
4
3
2
S101A
S221A
S331A
S601A
S102A
1
0
–55 –35
–15
5
25
45
65
Temperature (°C)
85
105
125
Please be sure to request delivery specifications that provide further details on the features and specifications of the products for proper and safe use.
Please note that the contents may change without any prior notice due to reasons such as upgrading.
(1/4)
20190423
beads_automotive_power_mpz2012_en.fm
E M C
C o m p o n e n t s
MPZ2012 type
Z VS. FREQUENCY CHARACTERISTICS (BY SERIES)
MPZ2012S series
1200
1100
MPZ2012S221A
MPZ2012S102A
1000
Impedance (Ω)
MPZ2012S101A
900 MPZ2012S300A
MPZ2012S601A
800
MPZ2012S331A
700
600
500
400
300
200
100
0
1
10
100
1000
Frequency (MHz)
10000
Z, X, R VS. FREQUENCY CHARACTERISTICS
MPZ2012S101ATD25
Z
30
R
20
10
0
X
1
10
100
1000
Frequency (MHz)
10000
400
350
300
250
200
150
100
50
0
Z
R
X
1
10
300
Z
R
X
1
10
100
1000
Frequency (MHz)
100
1000
Frequency (MHz)
10000
700
600
500
400
300
200
100
0
250
200
Z
150
R
100
50
0
10000
MPZ2012S601ATD25
Impedance (Ω)
Impedance (Ω)
MPZ2012S331ATD25
140
120
100
80
60
40
20
0
X
1
10
100
1000
Frequency (MHz)
10000
MPZ2012S102ATD25
1200
Impedance (Ω)
Impedance (Ω)
40
Impedance (Ω)
50
MPZ2012S221ATD25
Impedance (Ω)
MPZ2012S300ATD25
Z
R
X
1
10
100
1000
Frequency (MHz)
10000
1000
Z
800
R
600
400
200
0
X
1
10
100
1000
Frequency (MHz)
Please be sure to request delivery specifications that provide further details on the features and specifications of the products for proper and safe use.
Please note that the contents may change without any prior notice due to reasons such as upgrading.
10000
(2/4)
20190423
beads_automotive_power_mpz2012_en.fm
E M C
C o m p o n e n t s
MPZ2012 type
PACKAGING STYLE
SHAPE & DIMENSIONS
REEL DIMENSIONS
2.0±0.2
0.85±0.2
ø60min.
1.25±0.2
2.0±0.5
1.0
8.4 +2.0
–0.0
ø13±0.2
0.5±0.3
ø21±0.8
Dimensions in mm
14.4max.
ø180±2.0
Dimensions in mm
2.0±0.05
4.0±0.1
3.5±0.05
1.5 +0.1
–0
B
8.0±0.3
1.2
Sprocket
hole
1.75±0.1
TAPE DIMENSIONS
RECOMMENDED LAND PATTERN
0.8
1
0.8
4.0±0.1
A
K
Dimensions in mm
Cavity
Dimensions in mm
RECOMMENDED REFLOW PROFILE
Preheating
Soldering
Natural
cooling
Type
MPZ2012
A
1.5±0.2
160min.
Taping
B
2.3±0.2
K
1.1max.
200min.
Peak
250 to 260°C
Temperature
230°C
230°C
300min.
Drawing direction
Dimensions in mm
PACKAGE QUANTITY
180°C
10s
150°C
60 to 120s
30 to 60s
Time
Package quantity
4,000 pcs/reel
TEMPERATURE RANGE, INDIVIDUAL WEIGHT
Operating
Storage
temperature range
temperature range
–55 to +125°C
–55 to +125°C
The storage temperature range is for after the assembly.
Individual
weight
8 mg
Please be sure to request delivery specifications that provide further details on the features and specifications of the products for proper and safe use.
Please note that the contents may change without any prior notice due to reasons such as upgrading.
(3/4)
20190423
beads_automotive_power_mpz2012_en.fm
E M C
C o m p o n e n t s
REMINDERS FOR USING THESE PRODUCTS
Before using these products, be sure to request the delivery specifications.
SAFETY REMINDERS
Please pay sufficient attention to the warnings for safe designing when using this products.
REMINDERS
The storage period is within 12 months. Be sure to follow the storage conditions (temperature: 5 to 40°C, humidity: 10 to 75% RH or
less).
If the storage period elapses, the soldering of the terminal electrodes may deteriorate.
Do not use or store in locations where there are conditions such as gas corrosion (salt, acid, alkali, etc.).
Before soldering, be sure to preheat components.
The preheating temperature should be set so that the temperature difference between the solder temperature and chip temperature
does not exceed 150°C.
Soldering corrections after mounting should be within the range of the conditions determined in the specifications.
If overheated, a short circuit, performance deterioration, or lifespan shortening may occur.
When embedding a printed circuit board where a chip is mounted to a set, be sure that residual stress is not given to the chip due to
the overall distortion of the printed circuit board and partial distortion such as at screw tightening portions.
Self heating (temperature increase) occurs when the power is turned ON, so the tolerance should be sufficient for the set thermal
design.
Carefully lay out the coil for the circuit board design of the non-magnetic shield type.
A malfunction may occur due to magnetic interference.
Use a wrist band to discharge static electricity in your body through the grounding wire.
Do not expose the products to magnets or magnetic fields.
Do not use for a purpose outside of the contents regulated in the delivery specifications.
The products listed on this catalog are intended for use in general electronic equipment (AV equipment, telecommunications equipment, home appliances, amusement equipment, computer equipment, personal equipment, office equipment, measurement equipment, industrial robots) under a normal operation and use condition.
The products are not designed or warranted to meet the requirements of the applications listed below, whose performance and/or quality require a more stringent level of safety or reliability, or whose failure, malfunction or trouble could cause serious damage to society,
person or property.
If you intend to use the products in the applications listed below or if you have special requirements exceeding the range or conditions
set forth in the each catalog, please contact us.
(1) Aerospace/aviation equipment
(2) Transportation equipment (electric trains, ships, etc.)
(3) Medical equipment
(4) Power-generation control equipment
(5) Atomic energy-related equipment
(6) Seabed equipment
(7) Transportation control equipment
(8) Public information-processing equipment
(9) Military equipment
(10) Electric heating apparatus, burning equipment
(11) Disaster prevention/crime prevention equipment
(12) Safety equipment
(13) Other applications that are not considered general-purpose
applications
When designing your equipment even for general-purpose applications, you are kindly requested to take into consideration securing protection circuit/device or providing backup circuits in your equipment.
Please be sure to request delivery specifications that provide further details on the features and specifications of the products for proper and safe use.
Please note that the contents may change without any prior notice due to reasons such as upgrading.
(4/4)
20190423
beads_automotive_power_mpz2012_en.fm
