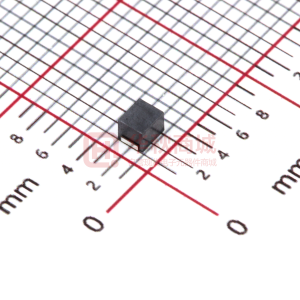

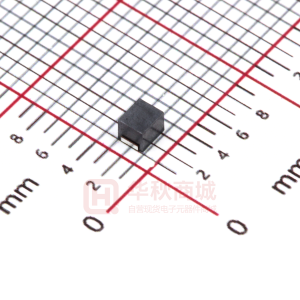

NLFV25T-1R02R2M

531_NLCV25 (1/2) Inductors For Power Line SMD FEATURES • Provides high Q while using 252018 size winding construction. • Environmentally friendly due to use of recyclable plastic (thermoplastic). • Logo omitted to simplify production. • Maintains interchangeability with earlier NL product series. • NLV series are E-6 products, while NLCV and NLFV series are E-3 products. APPLICATIONS PCs, hard disk drives, and other types of electronics SPECIFICATIONS Type NLV25 NLCV25 NLFV25 Operating temperature range –20 to +85°C –20 to +85°C –20 to +85°C Storage temperature range[Unit of products] –40 to +85°C –40 to +85°C –40 to +85°C NLCV Series NLCV25 Type PRODUCT IDENTIFICATION NLV 25 T- 2R2 J (1) (2) (3) (4) (5) (1) Series name (2) Dimensions LxWxT 252018 2.5×2.0×1.8mm (3) Packaging style T Taping (reel) (4) Inductance value 1R0 220 1µH 22µH (5) Inductance tolerance J K M ±5% ±10% ±20% RECOMMENDED SOLDERING CONDITIONS REFLOW SOLDERING 10s max. 230°C 200°C 150°C 100°C Preheating:120s Time(s) Natural cooling 30s max. PACKAGING STYLE AND QUANTITIES Packaging style Taping Type NLV25T NLCV25T NLFV25T Quantity 2000 pieces/reel 2000 pieces/reel 2000 pieces/reel FLOW SOLDERING 10s max. 260°C Natural cooling 150°C 100°C Preheating:120s Time(s) PRECAUTIONS • The exterior of this product can melt since due to thermoplastic construction. During mechanical contact while at the plastic softening temperature, deformation can occur at the contact location. Therefore caution is required when utilizing a soldering iron during the soldering operation. FLUX AND CLEANING Rosin-based flux is recommended. Cleaning Conditions Solvent Time Chlorine-based solvent (Do not use acid or alkali solvents.) 2min max. IRON SOLDERING Perform soldering at 250°C on 30W max. within 5 seconds. VAPOR-PHASING 10s max. 220°C 215°C 150°C 100°C Preheating:120s Time(s) Natural cooling 30s max. Specifications which provide more details for the proper and safe use of the described product are available upon request. All specifications are subject to change without notice. 531_NLCV25 (2/2) Inductors For Power Line SMD NLCV Series NLCV25 Type SHAPES AND DIMENSIONS/RECOMMENDED PC BOARD PATTERN Inductor Solder land pattern 1.5 1.0 1.5 1.0 1.4 ± 0.1 Weight:25mg Dimensions in mm 2.5 ± 0.2 1.8 ± 0.1 0.5 Terminal electrode (0.4) 2 ± 0.1 ELECTRICAL CHARACTERISTICS Inductance(µH) 1 2.2 4.7 10 22 Inductance tolerance ±20% ±20% ±20% ±10% ±10% Q typ. 20 20 20 30 30 Test frequency L,Q (MHz) 7.96 7.96 7.96 2.52 2.52 Self-resonant frequency (MHz)min. 200 95 43 32 18 DC resistance (Ω)±30% 0.34 0.5 0.8 1.69 2.8 Rated current (mA)max. 475 390 285 210 160 Part No. NLCV25T-1R0M NLCV25T-2R2M NLCV25T-4R7M NLCV25T-100K NLCV25T-220K • Test equipment L, Q: HP4194A IMPEDANCE/GAIN PHASE ANALYZER+HP16085A+HP16093 B+TF-1 SRF: HP8753C NETWORK ANALYZER Rdc: MATSUSHITA VP-2941A DIGITAL MILLIOHM METER TYPICAL ELECTRICAL CHARACTERISTICS INDUCTANCE CHANGE vs. DC SUPERPOSITION CHARACTERISTICS IMPEDANCE vs. FREQUENCY CHARACTERISTICS 100 100 22µH 10µH Impedance(kΩ) 30 22µH 10µH 4.7µH 30 Inductance(µH) 10 10 4.7µH 2.2µH 1µH 3 2.2µH 1µH 3 1 1 0.3 0.3 0.1 10 30 1000 100 300 DC current(mA) 3000 10000 0.1 1 3 100 10 30 Frequency(MHz) 300 1000 531_NLCV25 000120 Specifications which provide more details for the proper and safe use of the described product are available upon request. All specifications are subject to change without notice.
