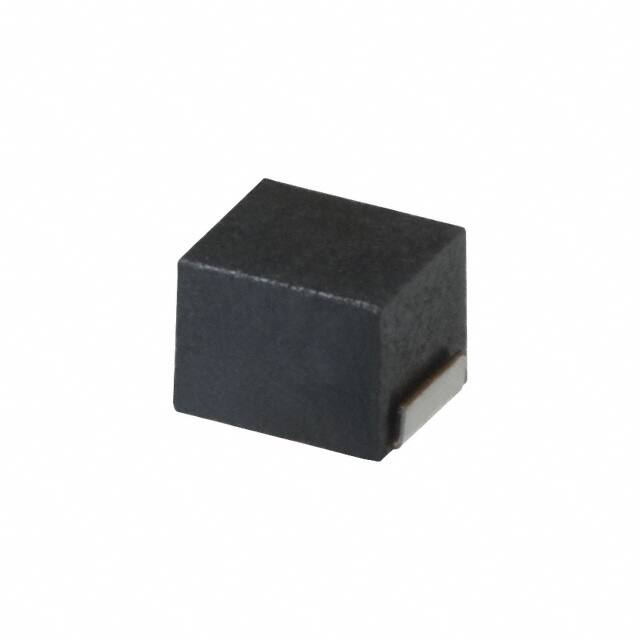

NLHV25T-R47J-PF

Inductors for High-frequency Circuits Wound/STD NLHV series Type: NLHV25 2520[1008 inch]* * Dimensions Code JIS[EIA] Issue date: September 2011 • All specifications are subject to change without notice. • Conformity to RoHS Directive: This means that, in conformity with EU Directive 2002/95/EC, lead, cadmium, mercury, hexavalent chromium, and specific bromine-based flame retardants, PBB and PBDE, have not been used, except for exempted applications. (1/2) Inductors for High-frequency Circuits Wound/STD Conformity to RoHS Directive NLHV Series NLHV25 FEATURES • High Q-factor is provided in frequency band more than 30MHz in comparison with existing NLV25 series. • Land pattern is compatible with an existing series product. • Lead-free material is used for the plating on the terminal PRODUCT IDENTIFICATION APPLICATIONS Power supply lines, audio visual systems, IT equipment (2) Dimensions SPECIFICATIONS (3) Packaging style –40 to +105°C [Including self-temperature rise] –40 to +105°C Operating temperature range Storage temperature range RECOMMENDED SOLDERING CONDITIONS REFLOW SOLDERING (1) Series name 25 T Natural cooling R12 Taping (reel) 0.12µH (5) Inductance tolerance ±5% (6) Lead-free compatible product 180˚C PF 150˚C EF Pre-heating 90 to 120s 2.5×2.0×1.8mm(L×W×T) (4) Inductance J 10s max. 255˚C 230˚C NLHV 25 T R12 J PF (1) (2) (3) (4) (5) (6) Conformity to RoHS directive, exemption regulations apply Conformity to RoHS directive 40s max. Time (s) FLOW SOLDERING 10s max. 260˚C max. Natural cooling 170˚C 150˚C Pre-heating 60 to 120s Time (s) IRON SOLDERING Tip temperature Heating time Soldering rod specifications 300 to 350°C 3 secconds/soldering Output: 30W Tip diameter: 1mm • Based on the above conditions, use a maximum product temperature of 260°C and a maximum accumulated heating time of 10 seconds as a guideline. • Please contact us for details. • Conformity to RoHS Directive: This means that, in conformity with EU Directive 2002/95/EC, lead, cadmium, mercury, hexavalent chromium, and specific bromine-based flame retardants, PBB and PBDE, have not been used, except for exempted applications. • All specifications are subject to change without notice. 001-03 / 20110928 / e511_nlhv (2/2) SHAPES AND DIMENSIONS/RECOMMENDED PC BOARD PATTERN Inductor Solder land pattern R12 1.8±0.1 0.5 1.5 2±0.1 2.5±0.2 Terminal electrode 1.0 1.5 1.0 (0.4) 1.4±0.1 Dimensions in mm Weight:25mg ELECTRICAL CHARACTERISTICS Inductance (µH) 0.12 0.15 0.18 0.22 0.27 0.33 0.39 0.47 0.56 0.68 0.82 ∗ Inductance tolerance ±5% ±5% ±5% ±5% ±5% ±5% ±5% ±5% ±5% ±5% ±5% Q min. 30 30 35 35 35 40 40 40 40 40 40 Test frequency L,Q (MHz) 25.2 25.2 25.2 25.2 25.2 25.2 25.2 25.2 25.2 25.2 25.2 Self-resonant frequency (MHz)min. 700 550 500 450 425 400 375 350 325 180 120 DC resistance (Ω )max. 0.38 0.42 0.45 0.5 0.58 0.68 0.73 0.83 0.93 0.98 1.05 Rated current (mA)max. 550 500 475 450 425 400 375 350 325 300 280 Part No. NLHV25T-R12JNLHV25T-R15JNLHV25T-R18JNLHV25T-R22JNLHV25T-R27JNLHV25T-R33JNLHV25T-R39JNLHV25T-R47JNLHV25T-R56JNLHV25T-R68JNLHV25T-R82J- ∗ : Please specify lead-free compatible product, PF (Conformity to RoHS directive, exemption regulations apply) or EF (Conformity to RoHS directive) TYPICAL ELECTRICAL CHARACTERISTICS INDUCTANCE vs. FREQUENCY CHARACTERISTICS Q vs. FREQUENCY CHARACTERISTICS 100 1000 90 900 80 0.82µH 800 0.68µH Q Inductance(nH) 60 600 500 400 300 50 0.56µH 40 0.47µH 0.39µH 0.27µH 30 0.12µH 0.15µH 0.18µH 0.22µH 0.82µH 0.68µH 20 200 10 100 0 0.56µH 0.47µH 0.39µH 0.27µH 70 700 0.22µH 1 0.18µH 0.15µH 0.12µH 10 Frequency (MHz) 0 100 1 10 Frequency (MHz) 100 • All specifications are subject to change without notice. 001-03 / 20110928 / e511_nlhv
