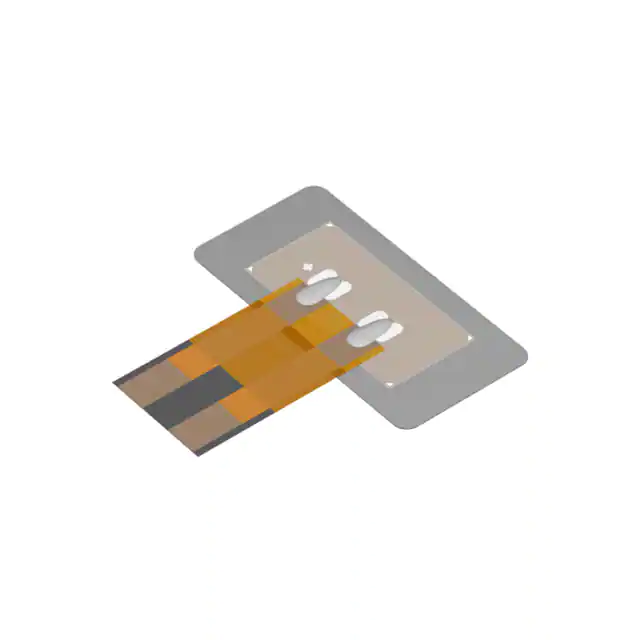

PHUA3015-30A-21-000

P i e z o H a p t TM A c t u a t o r s May 2020 PiezoHaptTM Actuators For general use PHU series PHUA8060-35A-33-000 PHUA3015-30A-21-000 (2/8) P i e z o H a p t TM A c t u a t o r s REMINDERS FOR USING THESE PRODUCTS Before using these products, be sure to request the delivery specifications. SAFETY REMINDERS Please pay sufficient attention to the warnings for safe designing when using this products. REMINDERS In use of this product, it should be minded by notes and please perform a safety design, after checking the individual standard for every unit enough. Do not apply DC bias to the product. In addition, the insulation resistance may be reduced and the function may not be performed. Use piezoelectric devices so that moisture-containing substances and water droplets do not come into contact with each other. There is a risk of performance degradation, adhere to the following matters. Store the product in a packaged condition to avoid sudden temperature changes, condensation, direct sunlight, corrosive gas, dust, and dust. Use within six months. Do not apply strong shocks (fall etc.) or pressure by which a crack goes into a product. Do not supply any voltage higher than applicable to the product. Do not use the piezoelectric buzzer outdoors. It is designed for indoor use. Do not apply the temperature more than 150°C. When designing your equipment even for general-purpose applications, you are kindly requested to take into consideration securing protection circuit/device or providing backup circuits in your equipment. Do not wash the product in such a way that solvent or gas can penetrate the product. Handle piezoelectric devices with care so that they do not touch them by hand. It can cause corrosion and the charge being charged may be discharged to the hands. Discharge the product before connecting it to the measuring instrument. Do not remove the piezoelectric element from the diaphragm. When soldering, be careful not to attach flux or other foreign matter to the piezoelectric device. When soldering a terminal pin, perform the soldering in clean conditions without contamination or rust in order to avoid poor connections. Check the resonant frequency in the mounting condition, and use the product within the range where the resonant frequency is not affected by the resonance with a reference value of 1/2 or less of the resonant frequency. When fixing the product by adhesion, etc., investigate the type, amount, adhesion, etc. of the adhesive, conduct a reliability evaluation test, and confirm that there are no abnormalities. Do not use the product on a device that allows consumers to touch the product. Do not rework the product. The characteristics may vary depending on the shape and location of the mounting part. Check the mounted condition. Please take appropriate measures such as acquiring protective circuits and devices that meet the uses, applications, and conditions of the instruments and keeping backup circuits. We are not liable for any damage caused by the use of equipment (automobiles, aircraft, medical equipment, nuclear power equipment, etc.) that requires high safety and reliability, or that may cause damage to human life, body, property, etc., or that may have a significant social impact due to a product failure, malfunction, or failure, as well as the use of the product beyond the scope and conditions of this catalog. Do not use it in the following environments ・Corrosive gases (Cl2, NH3, H2S, SOx, NOx, etc.) ・Environments with highly conductive substances (electrolytes, water, saltwater, etc.) ・Environments with acid, alkali, or organic solvents ・Places to be exposed to dust. 20200515 / piezohapt_commercial_phu_en.fm (3/8) P i e z o H a p t TM A c t u a t o r s Product compatible with RoHS directive PiezoHaptTM actuators For general use Overview of the PHU series FEATURES It is thin and can support various application. It is possible to obtain a clear response by low-voltage drive. It answers in an instant and can respond to a variegated vibration pattern (vibrational frequency). APPLICATION Touchpad, displays, amusement equipment, game controller, wearable devices etc. DRIVE CIRCUIT BLOCK DIAGRAM EXAMPLE Discrete Micro-computer Circumference control （SW/ LED/ LCD） Profit adjustment circuit AMP PiezoHapt Boost circuit （3V→12V : PHUA3015-30A-21-000） （3V→24V : PHUA8060-35A-33-000） Haptic driver IC Micro-computer Haptic driver IC PiezoHapt Circumference control （SW/ LED/ LCD） RoHS Directive Compliant Product: See the following for more details. https://product.tdk.com/info/en/environment/rohs/index.html Please be sure to request delivery specifications that provide further details on the features and specifications of the products for proper and safe use. Please note that the contents may change without any prior notice due to reasons such as upgrading. 20200515 / piezohapt_commercial_phu_en.fm (4/8) P i e z o H a p t TM A c t u a t o r s Overview of the PHU series PART NUMBER CONSTRUCTION PHU Series name A B A 8060 Application External vibration plate dimensions (L×W) For general use For automotive 8060 3015 - 80×60mm 30×15mm 35 A Total thickness 35 30 0.35mm 0.30mm - Type A 42Ni-Fe ＋ FPC 33 - External piezoelectric element dimensions (L×W) 33 30×30mm 21 20×10mm 000 Internal code PRODUCT LINEUP SPECIFICATIONS Part No. Dimensions PHUA8060-35A-33-000 PHUA3015-30A-21-000 Vibration plate (mm) 80×60×0.25 30×15×0.1 Element (mm) 30×30×0.1 20×10×0.2 Vibration plate specifications 42Ni-Fe 42Ni-Fe Electrode specification FPC FPC PHUA8060-35A-33-000 PHUA3015-30A-21-000 Wearable devices Operation voltage Touchpad Displays 24VP-P(±12V)max. 12VP-P(±6V)max. Operating temperature range –10 to +60°C –10 to +60°C CHARACTERISTICS Part No. Application Please be sure to request delivery specifications that provide further details on the features and specifications of the products for proper and safe use. Please note that the contents may change without any prior notice due to reasons such as upgrading. 20200515 / piezohapt_commercial_phu_en.fm (5/8) P i e z o H a p t TM A c t u a t o r s PHUA8060-35A-33-000 APPLICATION Suitable for touch panel and display. SHAPE & DIMENSIONS RECOMMENDED WIRING (0.4) 9.7 10.6 9.7 5±1.0 C385-01-001 2.5 30 80 30 60 Dimensions in mm ・Product shape are subject to change without notice. SPECIFICATIONS Vibration plate specifications FPC Width Number of cores Electrode Insulation length specification Lead pitch Stripping length Reinforcement Operation voltage Operating temperature range 42Ni-Fe 12mm 2 30mm 7.0mm 5.0mm 8.0mm 24VP-P(±12V)max. –10 to +60°C Please be sure to request delivery specifications that provide further details on the features and specifications of the products for proper and safe use. Please note that the contents may change without any prior notice due to reasons such as upgrading. 20200515 / piezohapt_commercial_phu_en.fm (6/8) P i e z o H a p t TM A c t u a t o r s PHUA8060-35A-33-000 PACKAGING STYLE/PACKING NUMBER/MINIMUM ORDERING UNIT PHUA8060-35A-33-000 Packaging style Packing number Minimum ordering unit Bulk (Tray) 200 pieces / corrugated cardboard (20 trays containing 10 pieces) 200 pieces (1 boxes of corrugated cardboard containing 200 piece) Tray 350±1 R1 257±1 80.5 15 4- P55x3=165 260±1 0 Y P83.5x2=167 P64x4=256 X 2.3 X 64 0.5 Y UNDER STACKS DEPTH 4 347±1 1 60.5 4.75 12.75 7.5 8 6.5 Please be sure to request delivery specifications that provide further details on the features and specifications of the products for proper and safe use. Please note that the contents may change without any prior notice due to reasons such as upgrading. 20200515 / piezohapt_commercial_phu_en.fm (7/8) P i e z o H a p t TM A c t u a t o r s PHUA3015-30A-21-000 APPLICATION Suitable for small equipment such as wearable devices. SHAPE & DIMENSIONS RECOMMENDED WIRING 30.0 10.0 5±1.0 23.5 15.0 20.0 Dimensions in mm ・Product shape are subject to change without notice. SPECIFICATIONS Vibration plate specifications Insulation specifications FPC Width Number of cores Electrode Insulation length specification Lead pitch Stripping length Reinforcement Operation voltage Operating temperature range 42Ni-Fe Without insulation 12mm 2 14.5mm 7.0mm 5.0mm 8.0mm 12VP-P(±6V)max. –10 to +60°C Please be sure to request delivery specifications that provide further details on the features and specifications of the products for proper and safe use. Please note that the contents may change without any prior notice due to reasons such as upgrading. 20200515 / piezohapt_commercial_phu_en.fm (8/8) P i e z o H a p t TM A c t u a t o r s PHUA3015-30A-21-000 PACKAGING STYLE/PACKING NUMBER/MINIMUM ORDERING UNIT PHUA3015-30A-21-000 Packaging style Packing number Minimum ordering unit Bulk (Tray) 1200 pieces / corrugated cardboard (20 trays containing 60 pieces) 1200 pieces (1 boxes of corrugated cardboard containing 1200 piece) Tray 350±1 P32x9=288 0 R1 Y X Y 7 X P60x4=240 30.5 14 254±1 P60x3=180 260±1 P39.5x5=197.5 4- 0.5 UNDER STACKS DEPTH 4 1 8 344±1 4.75 15.5 12.75 7.5 8 7 Please be sure to request delivery specifications that provide further details on the features and specifications of the products for proper and safe use. Please note that the contents may change without any prior notice due to reasons such as upgrading. 20200515 / piezohapt_commercial_phu_en.fm
