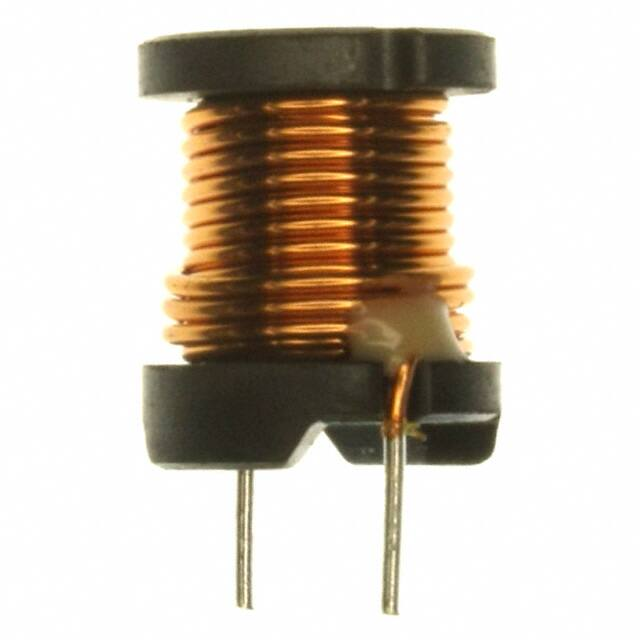

SL1215-330K2R3-PF

(1/2) Radial Lead Inductors(Coils) For Power Line Conformity to RoHS Directive SL Series SL1215 FEATURES • This is a low Rdc, best for the power supply line. • There is a series of many types from low inductance to high inductance in large current. • It is a product conforming to RoHS directive. PRODUCT IDENTIFICATION APPLICATIONS Televisions, CRT displays, printers, and various types of electronic products. (2)Dimensions SPECIFICATIONS Operating temperature range Storage temperature range Terminal strength Flow soldering condition ∗ –40 to +85°C [Including self-temperature rise] –40 to +85°C [Unit of products] 9.8N min.∗ 260°C /10 seconds Only for lead type specification. Wire type’s specification depends on the vibration test. SL 1215 - 100 K 3R6 - PF (1) (2) (3) (4) (5) (6) (1)Series name Type Dimension 1215 ø12× 14.5mm Lead pitch 11mm (10 to 100µH for wire type) 7.5mm (150 to 5600µH for lead type) (3)Inductance value 100 102 10µH 1000µH (4)Inductance tolerance K ±10% (5)Rated current 3R6 R20 3.6A 0.2A (6)Lead-free compatible product PF Lead-free compatible product PACKAGING STYLE AND QUANTITIES Packaging style Bulk Quantity 100 pieces/tray • Conformity to RoHS Directive: This means that, in conformity with EU Directive 2002/95/EC, lead, cadmium, mercury, hexavalent chromium, and specific bromine-based flame retardants, PBB and PBDE, have not been used, except for exempted applications. • All specifications are subject to change without notice. 002-05 / 20080622 / e532_sl1215.fm (2/2) SHAPES AND DIMENSIONS WIRE TYPE (10 to 100µH) LEAD TYPE (150 to 5600µH) Winding start mark Soldering ø0.6 to 0.8 5±1 14.5±0.5 Dimensions in before soldering (0.5max.) ø12±0.5 ø0.8±0.05 11typ. 7.5±0.8 ø12±0.5 5±1 14.5±0.5 Winding start mark Weight: 7g typ. Dimensions in mm ELECTRICAL CHARACTERISTICS Inductance (µH) Inductance tolerance DC resistance (Ω)max. 10 15 22 33 47 68 100 150 220 330 470 680 1000 1500 2200 3300 5600 ±10% ±10% ±10% ±10% ±10% ±10% ±10% ±10% ±10% ±10% ±10% ±10% ±10% ±10% ±10% ±10% ±10% 0.019 0.022 0.031 0.044 0.059 0.073 0.1 0.15 0.26 0.32 0.48 0.73 0.96 1.4 2.5 3.3 6.4 Rated current(A)∗ max. Based on inductance change 9.8 8.9 7.2 6 4.9 4.2 3.4 2.8 1.9 1.8 1.6 1.3 1.1 0.9 0.7 0.6 0.47 Based on temperature rise 3.6 3.3 2.8 2.3 2 1.8 1.5 1.3 1 0.91 0.72 0.58 0.51 0.42 0.31 0.27 0.2 Part No. Lead wire style SL1215-100K3R6-PF SL1215-150K3R3-PF SL1215-220K2R8-PF SL1215-330K2R3-PF SL1215-470K2R0-PF SL1215-680K1R8-PF SL1215-101K1R5-PF SL1215-151K1R3-PF SL1215-221K1R0-PF SL1215-331KR91-PF SL1215-471KR72-PF SL1215-681KR58-PF SL1215-102KR51-PF SL1215-152KR42-PF SL1215-222KR31-PF SL1215-332KR27-PF SL1215-562KR20-PF Wire type Wire type Wire type Wire type Wire type Wire type Wire type Lead type Lead type Lead type Lead type Lead type Lead type Lead type Lead type Lead type Lead type ∗ Rated current: Value obtained when current flows and self-temperature has risen to 25°C. • Test equipment Inductance:LCR METER YHP4261A, or equivalent Rdc: MILLIOHM METER VP-2941A MATSUSHITA, or equivalent 10000 Test circuit L=0.1H C=20000µF A DC Specimen 2200µH YHP model-4261A or equivalent 1000µH 3000 1000 Universal bridge TYPICAL ELECTRICAL CHARACTERISTICS INDUCTANCE CHANGE vs. DC SUPERPOSITION CHARACTERISTICS Inductance (µH) 470µH 300 220µH 100µH 100 47µH 30 22µH 10µH 10 3 1 0.1 0.3 1 3 10 DC current (A) 30 100 • All specifications are subject to change without notice. 002-05 / 20080622 / e532_sl1215.fm
