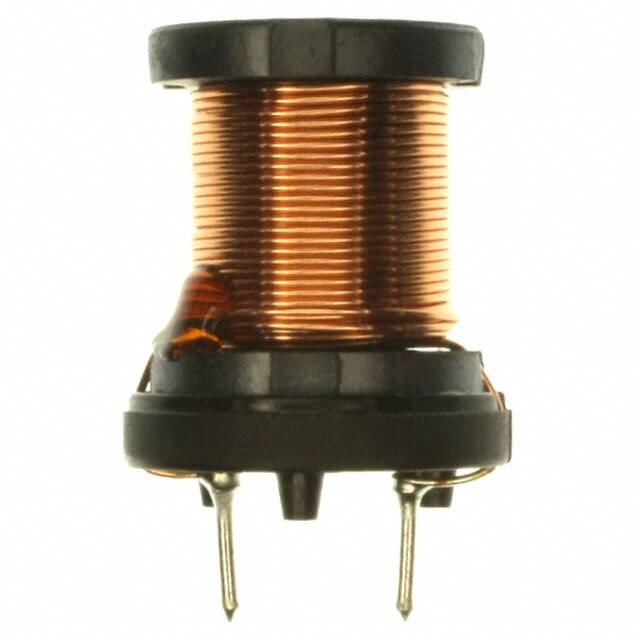

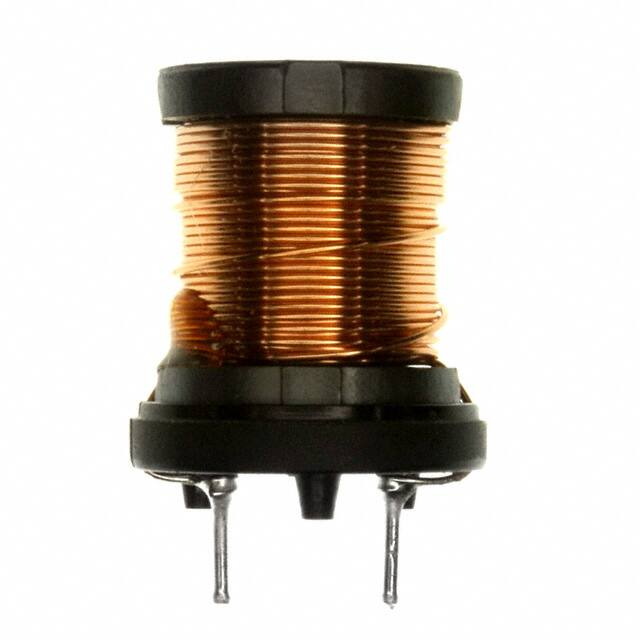

SL2125-152KR99-PF

(1/2) Radial Lead Inductors(Coils) For Power Line Conformity to RoHS Directive SL Series SL2125 FEATURES • This is a low Rdc, best for the power supply line. • There is a series of many types from low inductance to high inductance in large current. • It is a product conforming to RoHS directive. PRODUCT IDENTIFICATION APPLICATIONS Televisions, CRT displays, printers, and various types of electronic products. (2)Dimensions SPECIFICATIONS (3)Inductance value Operating temperature range Storage temperature range Terminal strength Flow soldering condition –40 to +85°C [Including self-temperature rise] –40 to +85°C [Unit of products] 9.8N min. 260°C /10 seconds SL 2125 - 102 K 1R3 - PF (1) (2) (3) (4) (5) (6) (1)Series name Type 2125 Dimension ø20.8× 25.5mm 102 103 Lead pitch 10mm 1000µH 10000µH (4)Inductance tolerance K ±10% (5)Rated current 1R3 R41 1.3A 0.41A (6)Lead-free compatible product PF Lead-free compatible product PACKAGING STYLE AND QUANTITIES Packaging style Bulk Quantity 100 pieces/tray • Conformity to RoHS Directive: This means that, in conformity with EU Directive 2002/95/EC, lead, cadmium, mercury, hexavalent chromium, and specific bromine-based flame retardants, PBB and PBDE, have not been used, except for exempted applications. • All specifications are subject to change without notice. 002-05 / 20080622 / e532_sl2125.fm (2/2) SHAPES AND DIMENSIONS Winding start mark ø1 Winding start side 5 ±1 25.5 ± 0.5 ø20.8±0.5 10 ±1 Weight: 24g typ. Dimensions in mm ELECTRICAL CHARACTERISTICS Inductance (µH) Inductance tolerance 1000 1500 2200 3300 4700 6800 10000 ±10% ±10% ±10% ±10% ±10% ±10% ±10% Test frequency L (kHz) 1 1 1 1 1 1 1 DC resistance (Ω)max. 0.35 0.61 0.78 1.15 1.71 2.61 3.41 Rated current(A)∗ max. Based on inductance change 1.7 1.3 1.1 0.95 0.78 0.66 0.55 Based on temperature rise 1.3 0.99 0.87 0.72 0.59 0.47 0.41 Part No. SL2125-102K1R3-PF SL2125-152KR99-PF SL2125-222KR87-PF SL2125-332KR72-PF SL2125-472KR59-PF SL2125-682KR47-PF SL2125-103KR41-PF ∗ Rated current: Value obtained when current flows and self-temperature has risen to 25°C. • Test equipment Inductance: LCR METER YHP4261A, or equivalent Rdc: MILLIOHM METER VP-2941A MATSUSHITA, or equivalent 100000 Test circuit L=0.1H C=20000µF A DC Specimen 30000 YHP model-4261A or equivalent 10000µH 10000 Inductance (µH) Universal bridge TYPICAL ELECTRICAL CHARACTERISTICS INDUCTANCE CHANGE vs. DC SUPERPOSITION CHARACTERISTICS 6800µH 4700µH 3300µH 3000 2200µH 1500µH 1000µH 1000 300 100 0.1 0.3 1 DC current (A) 3 10 • All specifications are subject to change without notice. 002-05 / 20080622 / e532_sl2125.fm
