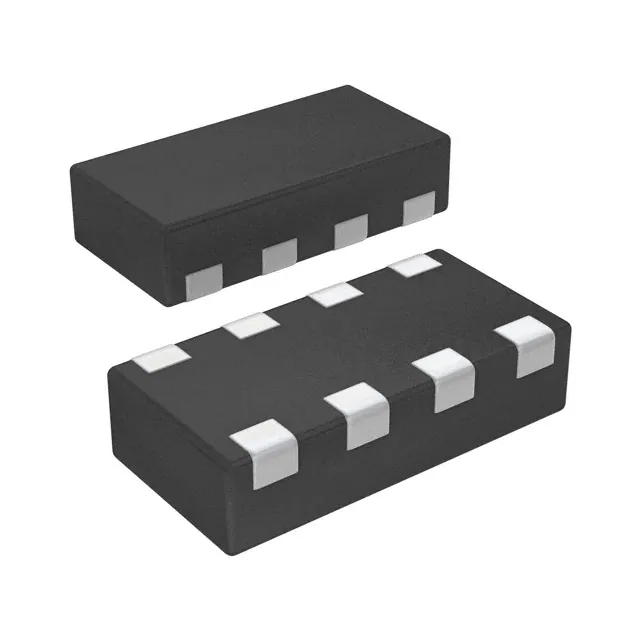

TCE1608G-900-4P-T200

E M C C o m p o n e n t s June 2017 Common Mode Filters With built-in ESD protection element type TCE Series TCE1608G Type TCE1608G [0603 inch]* * Dimensions Code JIS[EIA] Caution The products in this catalog will be or have been stopped production Discontinue Issue Date May 18, 2017 Last Purchase Order Date Mar. 29, 2019 Last Shipment Date Sep. 30, 2019 Please refer to our Web site about replacement information. (2/8) E M C C o m p o n e n t s REMINDERS FOR USING THESE PRODUCTS Before using these products, be sure to request the delivery specifications. pr od u st cts op w pe il d lb pr e od or uc ha tio ve n be en SAFETY REMINDERS Please pay sufficient attention to the warnings for safe designing when using these products. REMINDERS The storage period is less than 6 months. Be sure to follow the storage conditions (Temperature: 5 to 40°C, Humidity: 20 to 70% RH or less). If the storage period elapses, the soldering of the terminal electrodes may deteriorate. Do not use or store in locations where there are conditions such as gas corrosion (salt, acid, alkali, etc.). Before soldering, be sure to preheat components. The preheating temperature should be set so that the temperature difference between the solder temperature and chip temperature does not exceed 150°C. Soldering corrections after mounting should be within the range of the conditions determined in the specifications. If overheated, a short circuit, performance deterioration, or lifespan shortening may occur. When embedding a printed circuit board where a chip is mounted to a set, be sure that residual stress is not given to the chip due to the overall distortion of the printed circuit board and partial distortion such as at screw tightening portions. Self heating (temperature increase) occurs when the power is turned ON, so the tolerance should be sufficient for the set thermal design. Carefully lay out the coil for the circuit board design of the non-magnetic shield type. A malfunction may occur due to magnetic interference. Use a wrist band to discharge static electricity in your body through the grounding wire. Do not expose the products to magnets or magnetic fields. Do not use for a purpose outside of the contents regulated in the delivery specifications. The products listed on this catalog are intended for use in general electronic equipment (AV equipment, telecommunications equipment, home appliances, amusement equipment, computer equipment, personal equipment, office equipment, measurement equipment, industrial robots) under a normal operation and use condition. The products are not designed or warranted to meet the requirements of the applications listed below, whose performance and/or quality require a more stringent level of safety or reliability, or whose failure, malfunction or trouble could cause serious damage to society, person or property. If you intend to use the products in the applications listed below or if you have special requirements exceeding the range or conditions set forth in the each catalog, please contact us. Th e (1) Aerospace/Aviation equipment (2) Transportation equipment (cars, electric trains, ships, etc.) (3) Medical equipment (4) Power-generation control equipment (5) Atomic energy-related equipment (6) Seabed equipment (7) Transportation control equipment (8) Public information-processing equipment (9) Military equipment (10) Electric heating apparatus, burning equipment (11) Disaster prevention/crime prevention equipment (12) Safety equipment (13) Other applications that are not considered general-purpose applications When designing your equipment even for general-purpose applications, you are kindly requested to take into consideration securing protection circuit/device or providing backup circuits in your equipment. 20170612 / cmf_commercial_signal_tce1608g_en.fm (3/8) E M C C o m p o n e n t s Product compatible with RoHS directive Halogen-free Compatible with lead-free solders Common Mode Filters With built-in ESD protection element type pr od u st cts op w pe il d lb pr e od or uc ha tio ve n be en Overview of TCE1608G Type FEATURES EMC component with an ESD protective device (ESD suppressor) added to a conventional thin-film common mode filter based on the thin-film processing techniques and material technology cultivated from HDD head manufacturing. One component can be used both as a common mode noise countermeasure and for ESD protection. The number of parts and mounting area were greatly reduced. APPLICATION Noise countermeasure and ESD protection for high-speed differential interfaces (USB2.0, MIPI, HDMI) for mobile devices and general consumer products such as smart phones, tablets, digital cameras, and portable music players. PART NUMBER CONSTRUCTION TCE Series name 1608 G L×W×T Dimensions (mm) 1608 1.60×0.80×0.40 Product internal code G - 900 Impedance () at 100MHz 900 90 - 4P - Number of lines 4P 4 lines T 200 Packaging style Internal code T Taping OPERATING TEMPERATURE RANGE, PACKAGE QUANTITY, PRODUCT WEIGHT Package quantity Individual weight (pieces/reel) 4,000 （mg） 2.4 Th e Temperature range Operating Storage Type temperature temperature （°C） （°C） TCE1608G –25 to +85 –25 to +85 The Storage temperature range is for after the circuit board is mounted. RoHS Directive Compliant Product: See the following for more details.https://product.tdk.com/info/en/environment/rohs/index.html Halogen-free: Indicates that Cl content is less than 900ppm, Br content is less than 900ppm, and that the total Cl and Br content is less than 1500ppm. Please be sure to request delivery specifications that provide further details on the features and specifications of the products for proper and safe use. Please note that the contents may change without any prior notice due to reasons such as upgrading. 20170612 / cmf_commercial_signal_tce1608g_en.fm (4/8) E M C C o m p o n e n t s TCE1608G Type RECOMMENDED REFLOW PROFILE Soldering Natural cooling pr od u st cts op w pe il d lb pr e od or uc ha tio ve n be en Preheating Peak T: Temperature T4 T3 T2 T1 t1 T3 t3 t2 t: Time Time t1 60 to 120s Soldering Temp. Time T3 t2 230°C 10 to 30s Peak Temp. T4 245°C Time t3 5s max. Th e Preheating Temp. T1 T2 150°C 180°C Please be sure to request delivery specifications that provide further details on the features and specifications of the products for proper and safe use. Please note that the contents may change without any prior notice due to reasons such as upgrading. 20170612 / cmf_commercial_signal_tce1608g_en.fm (5/8) E M C C o m p o n e n t s TCE1608G Type SHAPE & DIMENSIONS 2 3 0.40±0.10 4 9 8 7 6 10 5 0.15typ. 1.60±0.10 1 pr od u st cts op w pe il d lb pr e od or uc ha tio ve n be en 0.80±0.10 0.20±0.10 0.20±0.10 0.10min. 0.40±0.10 GND GND 0.10min. Dimensions in mm RECOMMENDED LAND PATTERN CIRCUIT DIAGRAM 0.15 0.20 1.30 1 8 2 7 3 6 4 5 0.20 10 • No polarity 0.48 Th e 2.00 0.35 9 1.42 Dimensions in mm Please be sure to request delivery specifications that provide further details on the features and specifications of the products for proper and safe use. Please note that the contents may change without any prior notice due to reasons such as upgrading. 20170612 / cmf_commercial_signal_tce1608g_en.fm (6/8) E M C C o m p o n e n t s TCE1608G Type ELECTRICAL CHARACTERISTICS CHARACTERISTICS SPECIFICATION TABLE DC resistance Cutoff frequency Clamp voltage Rated current Rated voltage Insulation resistance (GHz)typ. 5.0 (V)max. 100 (V)max. 10 (M )min. 1 Part No. pr od u st cts op w pe il d lb pr e od or uc ha tio ve n be en Common mode impedance [at 100MHz] ( ) typ. ( ) min. 90 60 [1 line] ( )max. 1.95 TCE1608G-900-4P-T200 Manufacturer Keysight Technologies Keysight Technologies Keysight Technologies Th e ○ Measurement equipment Measurement item Product No. Common mode impedance 4291A DC resistance 4338A Insulation resistance 4339A ＊ Equivalent measurement equipment may be used. (A)max. 0.1 Please be sure to request delivery specifications that provide further details on the features and specifications of the products for proper and safe use. Please note that the contents may change without any prior notice due to reasons such as upgrading. 20170612 / cmf_commercial_signal_tce1608g_en.fm (7/8) E M C C o m p o n e n t s TCE1608G Type ELECTRICAL CHARACTERISTICS 10000 Impedance (Ω) 1000 pr od u st cts op w pe il d lb pr e od or uc ha tio ve n be en IMPEDANCE VS. FREQUENCY CHARACTERISTICS 900 Common mode 100 900 Differential mode 10 1 1 10 100 Frequency (MHz) 1000 10000 ○ Measurement equipment Product No. Manufacturer E4991A Keysight Technologies ＊ Equivalent measurement equipment may be used. INSERTION LOSS VS. FREQUENCY CHARACTERISTICS 0 900 Differential mode Insertion loss (dB) 5 10 15 900 Common mode 20 Th e 25 30 1 10 100 Frequency (MHz) 1000 10000 ○ Measurement equipment Product No. Manufacturer E5071B Keysight Technologies ＊ Equivalent measurement equipment may be used. Please be sure to request delivery specifications that provide further details on the features and specifications of the products for proper and safe use. Please note that the contents may change without any prior notice due to reasons such as upgrading. 20170612 / cmf_commercial_signal_tce1608g_en.fm (8/8) E M C C o m p o n e n t s TCE1608G Type PACKAGING STYLE pr od u st cts op w pe il d lb pr e od or uc ha tio ve n be en REEL DIMENSIONS ø60 –0 +1 2.0±0.5 1.0 9+0.3 ø13±0.2 ø21±0.8 13+1.4 +0 ø180 –3 Dimensions in mm B 3.5±0.05 4.0±0.1 A 8.0±0.3 2.0±0.05 1.5 +0.1 0 1.75±0.1 TAPE DIMENSIONS P1 K Dimensions in mm Type TCE1608G 160min. A 1.00 Taping Drawing direction B 1.80 P1 4.0 K 0.50 200min. 300min. Th e Dimensions in mm Please be sure to request delivery specifications that provide further details on the features and specifications of the products for proper and safe use. Please note that the contents may change without any prior notice due to reasons such as upgrading. 20170612 / cmf_commercial_signal_tce1608g_en.fm
