TPL1183427-722J-720N 数据手册
Transponder Coils
TPL series
Type:

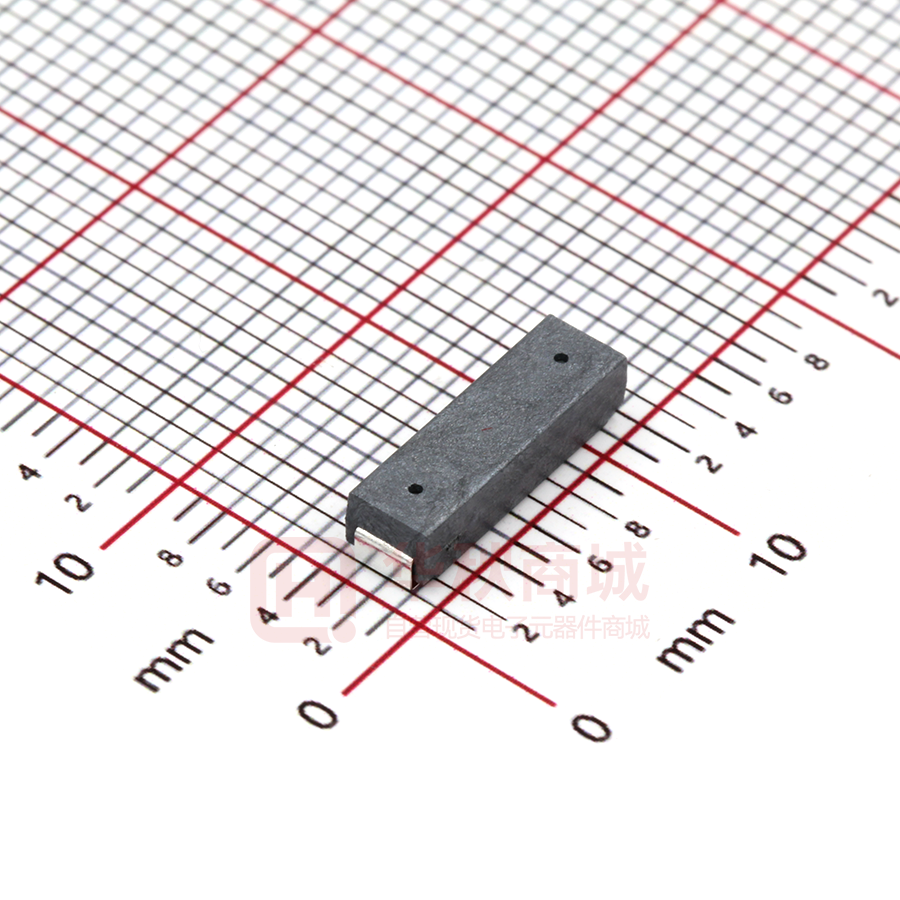

TPL1183427
TPL1183525
Issue date:
September 2011
• All specifications are subject to change without notice.
• Conformity to RoHS Directive: This means that, in conformity with EU Directive 2002/95/EC, lead, cadmium, mercury, hexavalent chromium, and specific
bromine-based flame retardants, PBB and PBDE, have not been used, except for exempted applications.
(1/2)
Transponder Coils
Conformity to RoHS Directive
TPL Series TPL1183427/1183525
FEATURES
• Because it is complete resin mold, it is high reliability(Because
re-mold is possible in customer specially).
• Terminals are high reliability by a spring structure. It has been
especially superior in bending and anti-drop proof.
• It maintains stable electrical signal to have employed sectional
winding to coil. Because it is a high SRF design structure, a
stable electrical characteristic is provided.
• Terminals are lead-free.
APPLICATIONS
Receiving LF Antenna coils for the in-car devices shown below
• Tire-pressure monitoring system (TPMS)
• Keyless entry system
• Immobilizer
and other electronic devices.
SPECIFICATIONS
Operating temperature range
Storage temperature range
–40 to +125°C
[Including self-temperature rise]
–40 to +125°C
SHAPES AND DIMENSIONS/RECOMMENDED PC BOARD PATTERN
W
T
L
TW
C
TL
A
B
Dimensions in mm
Type
TPL1183427
TPL1183525
L
11.8±0.4
11.8±0.5
W
3.4±0.4
3.5±0.4
T
2.75±0.3
2.4±0.3
TL
0.8
0.8
TW
2.4
3.2
A
9.9
9.9
B
13.5
13.5
C
2.7
3.5
Weight(g)
0.33
0.31
PACKAGING STYLE AND QUANTITIES
Packaging style
Taping
Type
TPL1183427
TPL1183525
Quantity
2500 pieces/reel
2500 pieces/reel
• Conformity to RoHS Directive: This means that, in conformity with EU Directive 2002/95/EC, lead, cadmium, mercury, hexavalent chromium, and specific
bromine-based flame retardants, PBB and PBDE, have not been used, except for exempted applications.
• All specifications are subject to change without notice.
001-03 / 20110926 / e541_tpl.fm
(2/2)
ELECTRICAL CHARACTERISTICS
Inductance∗1
(mH)[125kHz]
7.20
2.61
Inductance tolerance∗2
(%)
±5
±5
Q typ.
[125kHz]
66
50
Self-resonant frequency
(kHz)typ.
690
650
DC resistance
(Ω )typ.
50
26
Part No.
TPL1183427-722J-720N
TPL1183525-262J-261N
∗1
This inductance value is an example of the current commercial product.
If a different inductance is needed, please contact us.
∗2 Available for an inductance tolerance of less than ±5%.
• Test equipment L, Q, SRF: 4194A IMPEDANCE ANALYZER(HP)
16047E TEST FIXTURE(Agilent) with TDK original base
Rdc: AX-114N DIGITAL OHM METER(ADEX)
• If an ultrasonic process is used, confirm the condition settings in order to prevent disconnection.
TYPICAL ELECTRICAL CHARACTERISTICS
INDUCTANCE vs. FREQUENCY CHARACTERISTICS
Q vs. FREQUENCY CHARACTERISTICS
125kHz
20
125kHz
100
80
TPL1183427-722J-720N
60
TPL1183525-262J-261N
Q
Inductance (mH)
15
10
TPL1183427-722J-720N
40
5
0
10
TPL1183525-262J-261N
100
Frequency (kHz)
20
1000
0
10
100
Frequency (kHz)
1000
• All specifications are subject to change without notice.
001-03 / 20110926 / e541_tpl.fm
