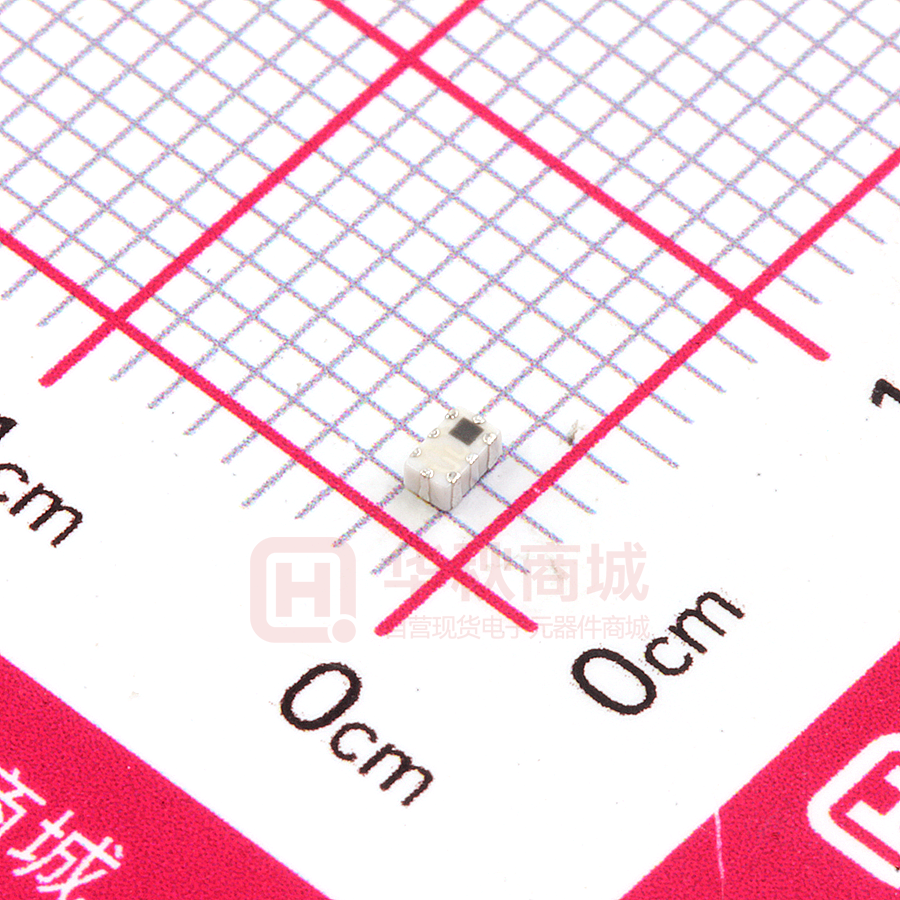

TPX205950MT-7010A1

Apr. 2016 Ver.7.1 TDK Corporation Multilayer Triplexer For GPS / 2.4GHz W-LAN & Bluetooth / 5GHz W-LAN TPX Series P/N: 2012 TYPE TPX205950MT-7010A1 TDK Technology - Proprietary and Confidential Information of TDK Group Companies Apr. 2016 Ver.7.1 TDK Corporation 　 TPX205950MT-7010A1 ■ SHAPES AND DIMENSIONS (C2) (7) (6) (5) (4) (8) (A2) (W) (C1) (1) (2) (3) (E) (T) (D) (A1) (B) (L) [Side View] Dimensions (mm) L W T A1 A2 B C1 C2 D E 2.00 1.25 0.90 0.30 0.30 0.20 0.20 0.20 0.35 0.65 +/-0.15 +/-0.15 +/-0.10 +/-0.20 +/-0.20 +/-0.20 +/-0.20 +/-0.20 +/-0.20 +/-0.20 Terminal functions GND (1) Common Port (2) GND (3) Mid-Band Port (4) (5) (6) (7) (8) GND High-Band Port GND Low-Band Port 　 ■ TEMPERATURE RANGE Operating temperature Storage temperature –40 to +85 °C –40 to +85 °C • All specifications are subject to change without notice. TDK Technology - Proprietary and Confidential Information of TDK Group Companies Apr. 2016 Ver.7.1 TDK Corporation 　 TPX205950MT-7010A1 ■ ELECTRICAL CHARACTERISTICS ( Measurement ) Low-Band Parameter Insertion Loss Insertion Loss VSWR Attenuation Ta = +25+/-5°C Ta = -40 ~ +85°C Ta = +25+/-5°C Ta = +25+/-5°C Attenuation Ta = -40 ~ +85°C Frequency (MHz) (dB) 1560 (dB) 1560 1560 (dB) 2400 4800 (dB) 2400 4800 to to to to to to to 1606 1606 1606 2500 6000 2500 6000 TDK Spec Min. Typ. Max. 0.47 0.60 0.70 1.38 2.00 14 16 15 23 13 14 - Middle-Band Parameter Insertion Loss Insertion Loss Return Loss VSWR Attenuation Ta = +25+/-5°C Ta = -40 ~ +85°C Ta = +25+/-5°C Ta = +25+/-5°C Ta = +25+/-5°C Attenuation Ta = -40 ~ +85°C Frequency (MHz) (dB) 2400 (dB) 2400 (dB) 2400 2400 (dB) 860 1545 3600 4800 7200 9600 (dB) 860 1545 3600 4800 7200 9600 to 2500 to 2500 to 2500 to 2500 to 960 to 1605 to 3750 to 5000 to 7500 to 10000 to 960 to 1605 to 3750 to 5000 to 7500 to 10000 TDK Spec Min. Typ. Max. 0.45 0.73 0.81 15 20 1.25 1.43 10 11 13 16 8 9 20 29 10 24 5 8 9 12 7 19 9 4 - TDK Technology - Proprietary and Confidential Information of TDK Group Companies Apr. 2016 Ver.7.1 TDK Corporation 　 TPX205950MT-7010A1 ■ ELECTRICAL CHARACTERISTICS ( Measurement ) High-Band Parameter Insertion Loss Insertion Loss VSWR Attenuation Attenuation Ta = +25+/-5°C Ta = -40 ~ +85°C Ta = +25+/-5°C Ta = +25+/-5°C Ta = -40 ~ +85°C Frequency (MHz) (dB) 4900 (dB) 4900 4900 (dB) 860 1545 1710 2170 3920 8100 8820 9800 (dB) 860 1545 1710 2170 3920 8100 8820 9800 to to to to to to 5950 5950 5950 960 1605 1990 to 4720 to 8800 to 9800 to 11800 to 960 to 1605 to 1990 to 4720 to 8800 to 9800 to 11800 TDK Spec Min. Typ. Max. 0.62 0.80 0.92 1.44 2.00 24 26 24 27 25 29 30 32 0.2 0.6 10 16 14 27 25 30 23 22 24 29 0.2 5 13 24 - Isolation Parameter Middle to High Middle to Low High to Low Ta = +25+/-5°C TDK Spec Min. Typ. Max. 5000 20 28 1606 15 19 1606 24 28 - Frequency (MHz) (dB) 4800 (dB) 1559 (dB) 1559 to to to TDK Technology - Proprietary and Confidential Information of TDK Group Companies Apr. 2016 Ver.7.1 TDK Corporation 　 TPX205950MT-7010A1 ■ FREQUENCY CHARACTERISTICS ( Measurement ) Middle - Band Attenuation Insertion Loss 960 1605 1990 2170 3600 4800 7500 10000 0 5 10 15 20 25 MHz MHz MHz MHz MHz MHz MHz MHz 11.7 19.7 1.8 0.9 9.1 29.3 25.1 12.7 dB dB dB dB dB dB dB dB 30 0.0 0.5 2400 MHz 2500 MHz 1.25 1.14 4900 MHz 5950 MHz 0.52 dB 0.64 dB 4900 MHz 5950 MHz 1.36 1.44 1605 MHz 0.47 dB 1610 MHz 1.38 2.0 2.5 3.0 2000 2200 2400 2600 2800 3000 VSWR 2.5 40 2.0 45 1.5 50 0.45 dB 0.37 dB 1.5 3.0 35 2400 MHz 2500 MHz 1.0 1.0 500 2500 4500 6500 8500 10500 2000 2200 2400 2600 2800 3000 High - Band Attenuation Insertion Loss 960 1710 2170 8100 9800 11800 0 5 10 15 20 MHz MHz MHz MHz MHz MHz 27.2 29.1 32.6 15.8 37.1 30.2 dB dB dB dB dB dB 0.0 0.5 1.0 1.5 2.0 2.5 3.0 4000 5000 6000 7000 25 VSWR 30 3.0 35 2.5 40 2.0 45 1.5 50 1.0 500 2500 4500 6500 8500 10500 4000 5000 6000 7000 Low - Band Attenuation Insertion Loss 0 0.0 1850 MHz 2400 MHz 4800 MHz 5 10 3.1 dB 16.5 dB 23.1 dB 15 0.5 1.0 1.5 2.0 2.5 3.0 20 1000 1500 2000 2500 25 VSWR 30 3.0 35 2.5 40 2.0 45 1.5 50 1.0 500 1500 2500 3500 4500 5500 1000 1500 2000 2500 Isolation Isolation 4800 MHz 5000 MHz High - Middle 28 dB 28 dB 1559 MHz 1606 MHz Low - Middle 19 dB 23 dB 0 5 1559 MHz 1606 MHz Low - High 28 dB 28 dB 10 15 20 25 30 35 40 45 50 0 1000 2000 3000 4000 5000 6000 7000 8000 TDK Technology - Proprietary and Confidential Information of TDK Group Companies Apr. 2016 Ver.7.1 TDK Corporation 　 TPX205950MT-7010A1 ■ RECOMMENDED LAND PATTERN Unit[mm] Thru hole Resist Direction Mark Surface DUT Material, Layer Thickness Top Resist Resist Cupper Surface Pattern 0.035mm FR-4 0.10mm Cupper Inner GND 0.018mm FR-4 0.30mm Cupper Bottom GND 0.035mm ■ ENVIROMENT INFORMATION RoHS Statement RoHS Compliance TDK Technology - Proprietary and Confidential Information of TDK Group Companies Apr. 2016 Ver.7.1 TDK Corporation 　 TPX205950MT-7010A1 ■ RECOMMENDED REFLOW PROFILE Pb free solder Soaking Temp. Time t1 T1 T2 150°C 180°C 60 to 120sec Working Temp. Time T3 t2 230°C more than 30sec Soldering Temp. Time T4 t3 Peak Temp. T5 247 to 253°C within 10sec 260°C Max. TDK Technology - Proprietary and Confidential Information of TDK Group Companies 　 Apr. 2016 Ver.7.1 TDK Corporation TPX205950MT-7010A1 ■ PACKAGING STYLE Reel Dimensions Carrier Tape STANDARD PACKAGE QUANTITY ( pieces/reel ) 2,000 TDK Technology - Proprietary and Confidential Information of TDK Group Companies REMINDERS FOR USING THESE PRODUCTS Before using these products, be sure to request the delivery specifications. SAFETY REMINDERS Please pay sufficient attention to the warnings for safe designing when using these products. REMINDERS The products listed on this specification sheet are intended for use in general electronic equipment (AV equipment, telecommunications equipment, home appliances, amusement equipment, computer equipment, personal equipment, office equipment, measurement equipment, industrial robots) under a normal operation and use condition. The products are not designed or warranted to meet the requirements of the applications listed below, whose performance and/or quality require a more stringent level of safety or reliability, or whose failure, malfunction or trouble could cause serious damage to society, person or property. Please understand that we are not responsible for any damage or liability caused by use of the products in any of the applications below or for any other use exceeding the range or conditions set forth in this specification sheet. 1. 2. 3. 4. 5. 6. 7. 8. 9. 10. 11. 12. 13. Aerospace/Aviation equipment Transportation equipment (cars, electric trains, ships, etc.) Medical equipment Power-generation control equipment Atomic energy-related equipment Seabed equipment Transportation control equipment Public information-processing equipment Military equipment Electric heating apparatus, burning equipment Disaster prevention/crime prevention equipment Safety equipment Other applications that are not considered general-purpose applications When using this product in general-purpose applications, you are kindly requested to take into consideration securing protection circuit/equipment or providing backup circuits, etc., to ensure higher safety. TDK Technology - Proprietary and Confidential Information of TDK Group Companies
