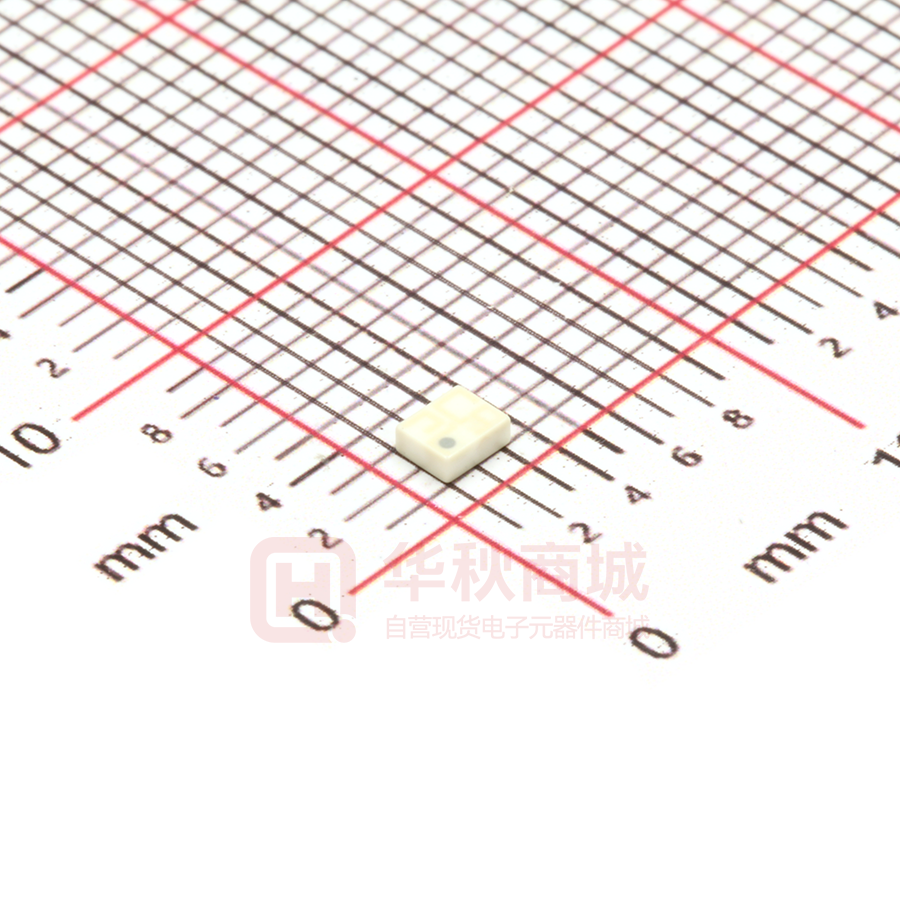

TPX255850MT-7013A3

Jul. 2017 Ver.3.0a TDK Corporation 　 Multilayer Triplexer For Band 5+8 / Band 1+3+7 / Band 3GHz~5GHz TPX Series P/N: 2.5x2.0mm [EIA 1008] TYPE TPX255850MT-7013A3 All specifications are subject to change without notice. TDK Technology - Proprietary and Confidential Information of TDK Group Companies Jul. 2017 Ver.3.0a TDK Corporation 　 TPX255850MT-7013A3 ■ SHAPES AND DIMENSIONS [TTop View] [Side View] [Bottom View] (E) (W) (5) (6) (7) (4) (9) (8)) (3) (2) (C) (D) (1) (B) (L) (A) (T) Dimensions (mm) L W T A B C D E 2.50 2.00 0.90 0.40 0.55 0.40 0.30 0.90 +/-0.10 +/-0.10 +/-0.10 +/-0.10 +/-0.10 +/-0.10 +/-0.10 +/-0.10 Terminal functions High-Band Port (1) GND (2) Middle-Band Port (3) GND (4) Low-Band Port (5) (6) (7) (8) (9) GND Common Port GND GND ■ TERMINATION FINISH Material Au plate All specifications are subject to change without notice. TDK Technology - Proprietary and Confidential Information of TDK Group Companies Jul. 2017 Ver.3.0a TDK Corporation 　 TPX255850MT-7013A3 ■ ELECTRICAL CHARACTERISTICS ( Measurement ) Low-Band Parameter Frequency (MHz) Insertion Loss (dB) 450 to 960 Insertion Loss (dB) ( –40 to +85 °C ) VSWR ( Low-Band Port ) Attenuation (dB) 450 to 960 450 to 960 1710 to 3400 to 5150 to 2690 3800 5850 Characteristic Impedance (ohm) Ta = +25+/-5°C TDK Spec Min. Typ. Max. 0.34 0.45 0.55 1.16 1.7 15 18 20 28 13 17 50 (Nominal) Middle-Band Parameter Frequency (MHz) Insertion Loss (dB) 1710 to 2690 Insertion Loss (dB) ( –40 to +85 °C ) VSWR ( Middle-Band Port ) Attenuation (dB) 1710 to 2690 1710 to 2690 450 to 3400 to 5150 to 960 3800 5850 Characteristic Impedance (ohm) Ta = +25+/-5°C Request Min. Typ. Max. 0.58 0.75 0.90 1.35 1.7 15 18 13 16 13 17 50 (Nominal) All specifications are subject to change without notice. TDK Technology - Proprietary and Confidential Information of TDK Group Companies Jul. 2017 Ver.3.0a TDK Corporation 　 TPX255850MT-7013A3 ■ ELECTRICAL CHARACTERISTICS ( Measurement ) High-Band Parameter Insertion Loss (dB) Insertion Loss (dB) ( –40 to +85 °C ) VSWR ( High-Band Port ) Attenuation (dB) Frequency (MHz) 3400 5150 3400 5150 3400 5150 450 1710 to to to to to to to to 3800 5850 3800 5850 3800 5850 960 2690 Characteristic Impedance (ohm) Ta = +25+/-5°C Request Min. Typ. Max. 0.73 0.90 0.35 0.65 1.10 0.80 1.38 2.0 1.18 2.0 17 21 15 18 50 (Nominal) Common Parameter Isolation (dB) Middle to High Middle to Low High to Low VSWR ( Common Port ) Characteristic Impedance (ohm) Ta = +25+/-5°C Frequency (MHz) 1710 3400 5150 450 1710 450 703 803 3400 5150 450 1710 3400 5150 to to to to to to to to to to to to to to 2690 3800 5850 960 2690 703 803 960 3800 5850 960 2690 3800 5850 Request Min. Typ. Max. 15 18 13 18 13 19 15 19 15 18 20 24 20 23 17 21 20 29 13 17 1.19 1.7 1.35 1.7 1.32 2.0 1.13 2.0 50 (Nominal) All specifications are subject to change without notice. TDK Technology - Proprietary and Confidential Information of TDK Group Companies Jul. 2017 Ver.3.0a TDK Corporation 　 TPX255850MT-7013A3 ■ MAXIMUM RATINGS Parameter Operating temperature (°C) Storage temperature (°C) Power Handling (W) Common Port Low-Band Port Middle-Band Port High-Band Port Human Body Model : HBM @Each Port (V) Machine Model : MM @Each Port (V) Charged Device Model : CDM @Each Port (V) TDK Spec Min. Max. –40 to +85 °C –40 to +85 °C 4 1 1 4 1 1 -1000 1000 -150 150 -500 500 Conditions Duty 50% at 450~960MHz CW at 1710~2690MHz CW at 3400~5850MHz Duty 50% CW CW 100pF / 1500ohm 200pF / 0ohm Relative humidity : 60%RH max Ambient temperature : +25+/-5°C All specifications are subject to change without notice. TDK Technology - Proprietary and Confidential Information of TDK Group Companies 　 Jul. 2017 Ver.3.0a TDK Corporation TPX255850MT-7013A3 ■ FREQUENCY CHARACTERISTICS All specifications are subject to change without notice. TDK Technology - Proprietary and Confidential Information of TDK Group Companies 　 Jul. 2017 Ver.3.0a TDK Corporation TPX255850MT-7013A3 ■ FREQUENCY CHARACTERISTICS All specifications are subject to change without notice. TDK Technology - Proprietary and Confidential Information of TDK Group Companies 　 Jul. 2017 Ver.3.0a TDK Corporation TPX255850MT-7013A3 ■ FREQUENCY CHARACTERISTICS All specifications are subject to change without notice. TDK Technology - Proprietary and Confidential Information of TDK Group Companies 　 Jul. 2017 Ver.3.0a TDK Corporation TPX255850MT-7013A3 ■ FREQUENCY CHARACTERISTICS All specifications are subject to change without notice. TDK Technology - Proprietary and Confidential Information of TDK Group Companies 　 Jul. 2017 Ver.3.0a TDK Corporation TPX255850MT-7013A3 ■ FREQUENCY CHARACTERISTICS All specifications are subject to change without notice. TDK Technology - Proprietary and Confidential Information of TDK Group Companies Jul. 2017 Ver.3.0a TDK Corporation 　 TPX255850MT-7013A3 ■ FREQUENCY CHARACTERISTICS Low band: S11 Low band: S22 Mid band: S11 Mid band: S33 High band: S11 High band: S44 All specifications are subject to change without notice. TDK Technology - Proprietary and Confidential Information of TDK Group Companies Jul. 2017 Ver.3.0a TDK Corporation 　 TPX255850MT-7013A3 ■ RECOMMENDED LAND PATTERN ■ EVALUATION BOARD Thru Hole Resist Surface DUT Direction Mark Material, Layer Thickness Top Resist Resist Copper Surface Pattern 0.035mm FR-4 0.10mm Copper Inner GND 0.018mm FR-4 0.30mm Copper Bottom GND 0.035mm ■ ENVIRONMENT INFORMATION RoHS Statement RoHS Compliance All specifications are subject to change without notice. TDK Technology - Proprietary and Confidential Information of TDK Group Companies 　 TDK Corporation TPX255850MT-7013A3 ■ RECOMMENDED REFLOW PROFILE 3oC/sec or lower Preheating Temp. T1 T2 Time t1 150°C 200°C 60 to 120sec 6oC/sec or lower Soldering Critical zone (T3 to T4) Peak Time Temp. Time Temp. T3 t2 T4 t3 * 217°C 60 to 120sec 240 to 260°C 30 sec Max * t3 : Time within 5°C of actual peak temperature The maximum number of reflow is 3. Note: Lead free solder is recommended. Recommended solder is Sn-3.0Ag-0.5Cu. (M705 by Senju Metal Industry) All specifications are subject to change without notice. TDK Technology - Proprietary and Confidential Information of TDK Group Companies Jul. 2017 Ver.3.0a TDK Corporation 　 TPX255850MT-7013A3 ■ PACKAGING STYLE Reel Dimensions Carrier Tape Sprocket hole Loading Direction J E K C D A B H t Dimensions (mm) A B C 2.2 2.7 8.0 +/-0.05 D 3.5 +/-0.05 +0.3/-0.1 +/-0.05 G F E 1.75 F 4.0 G 2.0 H 4.0 J 1.5 +/-0.1 +/-0.1 +/-0.05 +/-0.1 +0.1/-0 K t 1.15 0.25 MAX +/-0.05 STANDARD PACKAGE QUANTITY ( pieces/reel ) 2,000 All specifications are subject to change without notice. TDK Technology - Proprietary and Confidential Information of TDK Group Companies REMINDERS FOR USING THESE PRODUCTS Before using these products, be sure to request the delivery specifications. SAFETY REMINDERS Please pay sufficient attention to the warnings for safe designing when using these products. REMINDERS The products listed on this specification sheet are intended for use in general electronic equipment (AV equipment, telecommunications equipment, home appliances, amusement equipment, computer equipment, personal equipment, office equipment, measurement equipment, industrial robots) under a normal operation and use condition. The products are not designed or warranted to meet the requirements of the applications listed below, whose performance and/or quality require a more stringent level of safety or reliability, or whose failure, malfunction or trouble could cause serious damage to society, person or property. Please understand that we are not responsible for any damage or liability caused by use of the products in any of the applications below or for any other use exceeding the range or conditions set forth in this specification sheet. 1. 2. 3. 4. 5. 6. 7. 8. 9. 10. 11. 12. 13. Aerospace/Aviation equipment Transportation equipment (cars, electric trains, ships, etc.) Medical equipment Power-generation control equipment Atomic energy-related equipment Seabed equipment Transportation control equipment Public information-processing equipment Military equipment Electric heating apparatus, burning equipment Disaster prevention/crime prevention equipment Safety equipment Other applications that are not considered general-purpose applications When using this product in general-purpose applications, you are kindly requested to take into consideration securing protection circuit/equipment or providing backup circuits, etc., to ensure higher safety. All specifications are subject to change without notice. TDK Technology - Proprietary and Confidential Information of TDK Group Companies
