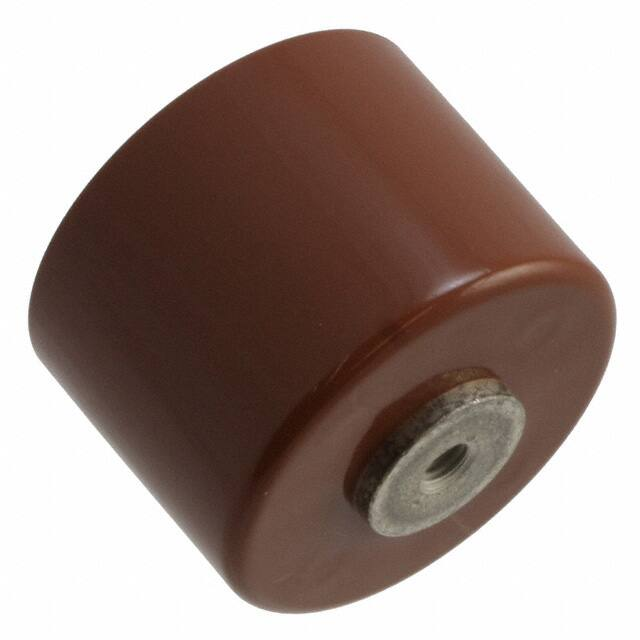

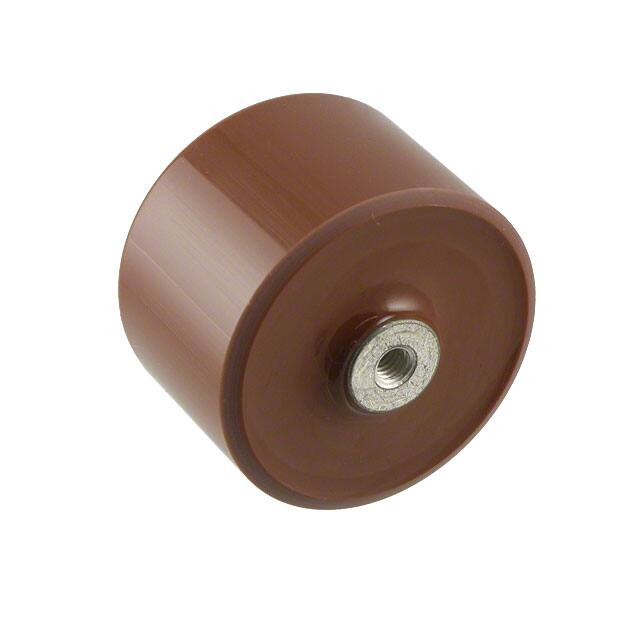

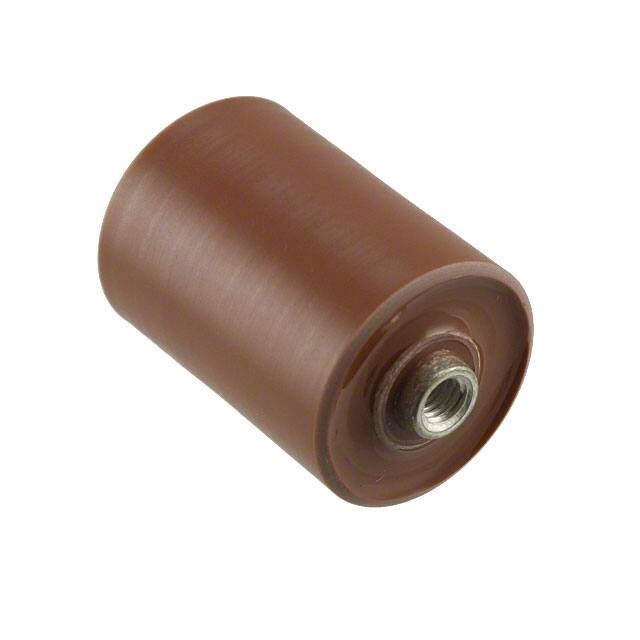

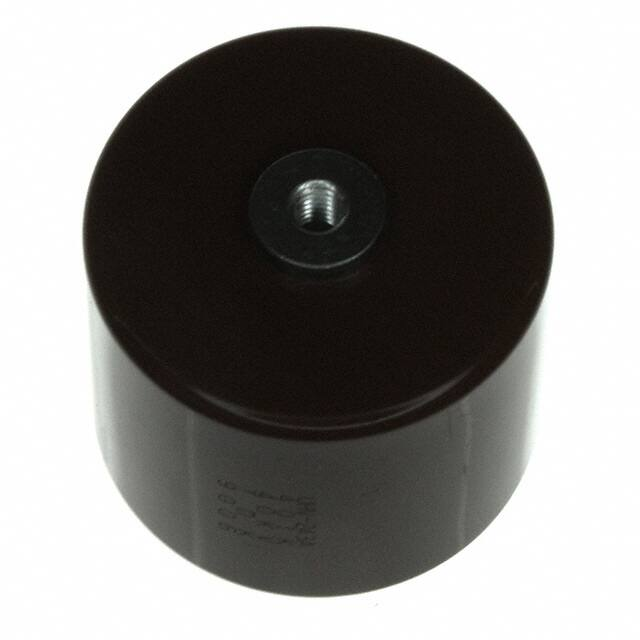

UHV-7A

C A P A C I T O R S Ultra high voltage ceramic capacitors For high voltage power supplies/lasers UHV series FEATURES Lineup of rated voltage Edc: 20 to 50kV Low ESR, low loss and low distortion factor Molded type metal screw terminals for easy mounting Uses high-reliability mold resin APPLICATION High-voltage power circuits (for medical devices, lithography, industrial analyzers) PART NUMBER CONSTRUCTION 607 11 ZT 201 Product category Internal code Temperature characteristic Nominal capacitance 201 200pF 941 940pF 252 2500pF 402 4000pF Ultra high voltage ceramic capacitors  ZT Z5T(+10 to +85°C, +22,-33%) K 4D Capacitance Rated voltage tolerance K ±10% 4D 20kV 4F 30kV 4G 40kV 4H 50kV D A Voltage classification DC voltage D specification Insulation structure A Mold type Please refer to P-3 about the product dimensions. OPERATING TEMPERATURE RANGE Series UHV Operating temperature(°C) –30 to +85 Storage temperature(°C) –30 to +85 The maximum operating temperature of +85°C includes capacitor self-generated heat of up to 20°C. PRODUCT APPEARANCE Please be sure to request delivery specifications that provide further details on the features and specifications of the products for proper and safe use. Please note that the contents may change without any prior notice due to reasons such as upgrading. (1/4) 20211006 uhv_uhv_en.fm C A P A C I T O R S UHV series ELECTRICAL CHARACTERISTICS CHARACTERISTICS SPECIFICATION TABLE Class 2 (Temperature stable) Temperature characteristic: Z5T (+10 to +85°C, +22,33%) Part numbers 60711ZT201K4DDA 60716ZT401K4DDA 60721ZT701K4DDA 60725ZT102K4DDA 60729ZT142K4DDA 60739ZT252K4DDA 60750ZT402K4DDA 60713ZT201K4FDA 60719ZT401K4FDA 60725ZT701K4FDA 60729ZT941K4FDA 60739ZT172K4FDA 60750ZT272K4FDA 60711ZT101K4GDA 60716ZT201K4GDA 60722ZT401K4GDA 60729ZT701K4GDA 60739ZT132K4GDA 60750ZT202K4GDA 60712ZT101K4HDA 60718ZT201K4HDA 60726ZT401K4HDA 60729ZT561K4HDA 60739ZT102K4HDA 60750ZT172K4HDA  Rated voltage Capacitance Withstanding voltage (kVDC) 20 20 20 20 20 20 20 30 30 30 30 30 30 40 40 40 40 40 40 50 50 50 50 50 50 (pF) 200±10% 400±10% 700±10% 1000±10% 1400±10% 2500±10% 4000±10% 200±10% 400±10% 700±10% 940±10% 1700±10% 2700±10% 100±10% 200±10% 400±10% 700±10% 1300±10% 2000±10% 100±10% 200±10% 400±10% 560±10% 1000±10% 1700±10% [1min. insulating liquid] (kVDC) 30 30 30 30 30 30 30 45 45 45 45 45 45 60 60 60 60 60 60 75 75 75 75 75 75 Sub part numbers UHV-221A UHV-222A UHV-223A UHV-224A UHV-1A UHV-2A UHV-3A UHV-231A UHV-232A UHV-233A UHV-4A UHV-5A UHV-6A UHV-241A UHV-242A UHV-243A UHV-7A UHV-8A UHV-9A UHV-251A UHV-252A UHV-253A UHV-10A UHV-11A UHV-12A Dissipation factor(tan) Insulation resistance (%) max. 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 (M) min. 10,000 10,000 10,000 10,000 10,000 10,000 10,000 10,000 10,000 10,000 10,000 10,000 10,000 10,000 10,000 10,000 10,000 10,000 10,000 10,000 10,000 10,000 10,000 10,000 10,000 AC corona starting voltage [3pC ] (kVAC) min. 10 10 10 10 10 10 10 15 15 15 15 15 15 20 20 20 20 20 20 25 25 25 25 25 25 pC : Pico coulomb TEMPERATURE CHARACTERISTIC DC VOLTAGE CHARACTERISTIC 50 10 0 Capacitance change rate(%) 30 Capacitance change rate(%) Z5T 10 –10 –30 –50 –50 –10 –20 –30 0 50 Temperature(°C) 100 –40 100%=Rated voltage 0 50 100 Rated voltage(%) 150 Please be sure to request delivery specifications that provide further details on the features and specifications of the products for proper and safe use. Please note that the contents may change without any prior notice due to reasons such as upgrading. (2/4) 20211006 uhv_uhv_en.fm C A P A C I T O R S UHV series SHAPE & DIMENSIONS MARKINGS Female thread UHV-5A 172K DC30kV TDK 1234 ød±0.5 T±2 øD±1 L±1 Part numbers 60711ZT201K4DDA 60716ZT401K4DDA 60721ZT701K4DDA 60725ZT102K4DDA 60729ZT142K4DDA 60739ZT252K4DDA 60750ZT402K4DDA 60713ZT201K4FDA 60719ZT401K4FDA 60725ZT701K4FDA 60729ZT941K4FDA 60739ZT172K4FDA 60750ZT272K4FDA 60711ZT101K4GDA 60716ZT201K4GDA 60722ZT401K4GDA 60729ZT701K4GDA 60739ZT132K4GDA 60750ZT202K4GDA 60712ZT101K4HDA 60718ZT201K4HDA 60726ZT401K4HDA 60729ZT561K4HDA 60739ZT102K4HDA 60750ZT172K4HDA Sub part numbers UHV-221A UHV-222A UHV-223A UHV-224A UHV-1A UHV-2A UHV-3A UHV-231A UHV-232A UHV-233A UHV-4A UHV-5A UHV-6A UHV-241A UHV-242A UHV-243A UHV-7A UHV-8A UHV-9A UHV-251A UHV-252A UHV-253A UHV-10A UHV-11A UHV-12A øD (mm) 20 25 30 34 38 48 60 25 30 34 38 48 60 20 25 34 38 48 60 20 30 34 38 48 60 ød (mm) 6 8 10 10 15 15 15 8 10 10 15 15 15 6 8 10 15 15 15 6 10 10 15 15 15 T (mm) 19 19 19 19 19 19 19 22 22 22 22 22 22 28 28 28 28 28 28 31 31 31 31 31 31 L (mm) 23 23 23 23 23 23 23 26 26 26 26.2 26 26 32 32 32 32 32 32 35 35 35 35 35.2 35 Sub part number Nominal capacitance and tolerance code Rated voltage Manufacturer’s name (TDK or TDK logo mark) Lot number Internal screw ISO M4 ISO M4 ISO M4 ISO M4 ISO M5 ISO M5 ISO M5 ISO M4 ISO M4 ISO M4 ISO M5 ISO M5 ISO M5 ISO M4 ISO M4 ISO M4 ISO M5 ISO M5 ISO M5 ISO M4 ISO M4 ISO M4 ISO M5 ISO M5 ISO M5 Please be sure to request delivery specifications that provide further details on the features and specifications of the products for proper and safe use. Please note that the contents may change without any prior notice due to reasons such as upgrading. (3/4) 20211006 uhv_uhv_en.fm C A P A C I T O R S REMINDERS FOR USING THESE PRODUCTS Before using these products, be sure to request the delivery specifications. SAFETY REMINDERS Please pay sufficient attention to the warnings for safe designing when using this products. REMINDERS (1) During transportation and storage • Do not transport or store where the prodcuts will be exposed to high temperature or high humidity. • Do not expose to poisonous gases such as H2SO4, HCl, or HNO3. • Avoid excessive impact such as that caused by falling. (2) During operation • Avoid contact with electrolytes such as perspiration. Do not touch with bare hands. • Avoid excessive impact such as that caused by falling. • Do not apply solder to stud terminals. • Do not re-machine the terminals. (3) Usage • Make sure that the prodcuts are not exposed to radiant heat from chambers or transformers. • Please contact us when using in SF6 gas. (4) Others The products listed on this catalog are not designed or warranted to meet the requirements of the applications listed below, whose performance and/or quality require a more stringent level of safety or reliability, or whose failure, malfunction or trouble could cause serious damage to society, person or property. If you intend to use the products in the applications listed below or if you have special requirements exceeding the range or conditions set forth in the each catalog, please contact us. (1) Aerospace/aviation equipment (2) Transportation equipment (cars, electric trains, ships, etc.) (3) Medical equipment (excepting Pharmaceutical Affairs Law classification Class1,2) (4) Power-generation control equipment (5) Atomic energy-related equipment (6) Seabed equipment (7) Transportation control equipment (8) Public information-processing equipment (9) Military equipment (10) Electric heating apparatus, burning equipment (11) Disaster prevention/crime prevention equipment (12) Safety equipment (13) Other applications that are not considered general-purpose applications When designing your equipment even for general-purpose applications, you are kindly requested to take into consideration securing protection circuit/device or providing backup circuits in your equipment. Please be sure to request delivery specifications that provide further details on the features and specifications of the products for proper and safe use. Please note that the contents may change without any prior notice due to reasons such as upgrading. (4/4) 20211006 uhv_uhv_en.fm
