(1/1)

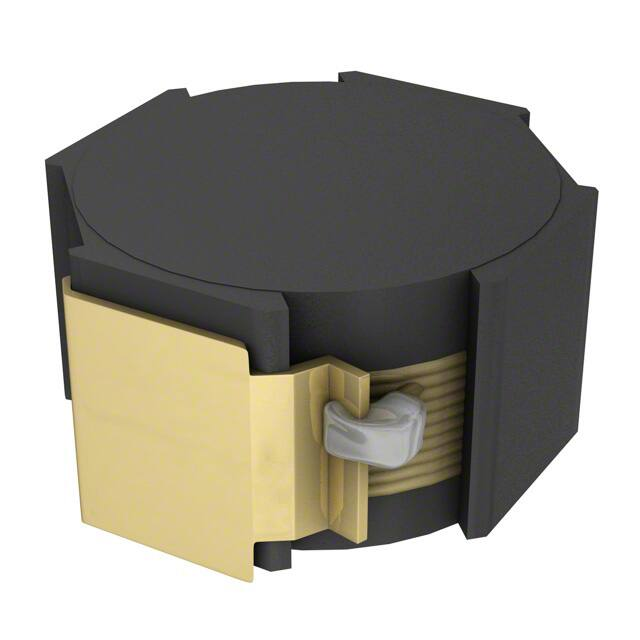

SMD Inductors(Coils)
For Power Line(Wound, Magnetic Shielded)
Conformity to RoHS Directive
VLF Series VLF12060
SHAPES AND DIMENSIONS
11.7±0.3
FEATURES
• Mount area: 11.7.0× 12.0mm
Low profile: 6.0mm max. height
• Compare to SLF12565(TDK conventional product) type
Low loss and large current capability design
DC resistance: 0.88× SLF12565
Rated DC current: 1.43× SLF12565
• High magnetic shield construction should actualize high resolution for EMC protection.
• Available for automatic mounting in tape and real package.
• The products contain no lead and also support lead-free
soldering.
• It is a product conforming to RoHS directive.
12.0±0.3
6.0max.
Dimensions in mm
RECOMMENDED PC BOARD PATTERN
5.4
APPLICATIONS
Note book computers, amusement equipment, DVD players,
VRMs, plasma displays, etc.
7.0
12.6
Dimensions in mm
ELECTRICAL CHARACTERISTICS
Part No.
Inductance
(µH)
Inductance
tolerance(%)
Test frequency
(kHz)
VLF12060T-1R8N120
VLF12060T-2R7N100
VLF12060T-3R9N9R0
VLF12060T-4R7N7R7
VLF12060T-6R8N7R2
VLF12060T-100M6R2
VLF12060T-150M5R0
VLF12060T-220M4R1
VLF12060T-330M3R4
VLF12060T-470M2R8
VLF12060T-680M2R3
VLF12060T-101M1R9
VLF12060T-151M1R6
VLF12060T-221M1R3
VLF12060T-331M1R0
1.8
2.7
3.9
4.7
6.8
10
15
22
33
47
68
100
150
220
330
±30
±30
±30
±30
±30
±20
±20
±20
±20
±20
±20
±20
±20
±20
±20
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
DC resistance(mΩ)
max.
typ.
4.4
6.4
8.4
11.6
13.1
16
26
36
53
71
100
152
215
352
464
3.6
5.3
7.0
9.6
10.9
13.9
22.3
31.4
46.1
62.2
87.5
132.4
187.1
306.8
404
Rated current(A)∗
Based on inductance
change max.
14.6
12
9.9
9.1
7.5
6.2
5.0
4.1
3.4
2.8
2.3
1.9
1.6
1.3
1.0
Based on temperature
rise typ.
12
10
9
7.7
7.2
6.4
5.0
4.2
3.5
3.0
2.5
2.0
1.7
1.3
1.1
∗
Rated current: Value obtained when current flows and the temperature has risen to 40°C or when DC current flows and the nominal value of inductance
has fallen by 30%, whichever is smaller.
• Operating temperature range: –40 to +105°C (Including self-temperature rise)
• Conformity to RoHS Directive: This means that, in conformity with EU Directive 2002/95/EC, lead, cadmium, mercury, hexavalent chromium, and specific
bromine-based flame retardants, PBB and PBDE, have not been used, except for exempted applications.
• All specifications are subject to change without notice.
002-02 / 20080629 / e531_vlf12060.fm
