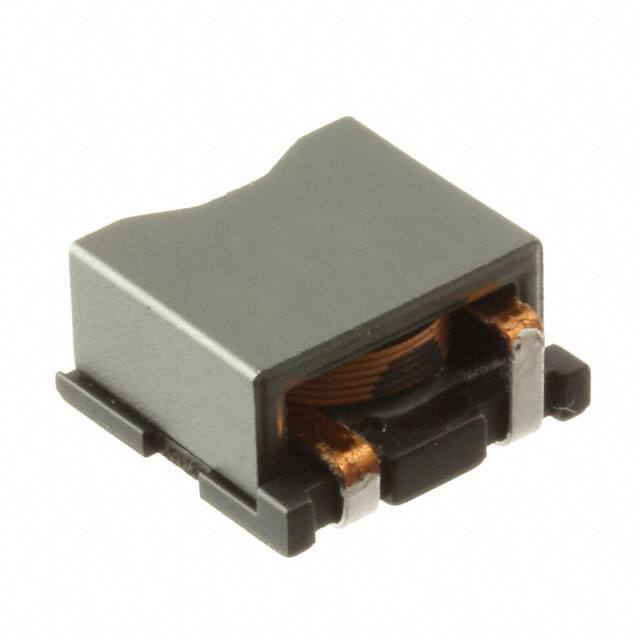

VLM10555T-R56M120-3

1 of 3 Creation Date :July 03 2014 VLM10555T-R56M120-3 Applications Commercial Grade Feature Wire Wound Magnetic Shield Ferrite Core Series VLM Series / VLM10555-3 Type Status PROD Size Length(L) 10.30mm +0.20mm Width(W) 10.60mm +/-0.20mm Thickness(T) 5.40mm +/-0.20mm Recommended Land Pattern (A) 2.60mm Nom. Recommended Land Pattern (B) 3.40mm Nom. Recommended Land Pattern (C) 3.00mm Nom. Recommended Land Pattern (D) 6.10mm Nom. Recommended Land Pattern (E) 1.90mm Nom. Recommended Land Pattern (F) 1.80mm Nom. Electrical Characteristics Inductance 560nH +/-20% at 100kHz Rated Current (L Change) [Max.] 34A (25% Down) Rated Current (Temperature Rise) [Typ.] 12A (40degC Rise) Rated Current (Temperature Rise) [Max.] DC Resistance [Nom.] 2.1mΩ DC Resistance [Max.] 2.5mΩ Other Operating Temp. Range (Including Self-Temp. Rise) -40 to 125degC Soldering Method Reflow, Iron Soldering AEC Q200 No Packing Blister (Plastic)Taping [330mm Reel] Package Quantity 500Pcs Min. Weight 1.7g •This PDF document was created based on the data listed on the TDK Corporation website. •All specifications are subject to change without notice. Copyright(c) TDK Corporation. All rights reserved 2 of 3 Creation Date :July 03 2014 VLM10555T-R56M120-3 VLM10555T-R56M120-3 VLM10555T-R56M120-3 VLM10555T-R56M120-3 VLM10555T-R56M120-3 •This PDF document was created based on the data listed on the TDK Corporation website. •All specifications are subject to change without notice. Copyright(c) TDK Corporation. All rights reserved 3 of 3 Creation Date :July 03 2014 VLM10555T-R56M120-3 VLM10555T-R56M120-3(Amb. Temp. = 20degc) VLM10555T-R56M120-3(Amb. Temp. = 20degc) •This PDF document was created based on the data listed on the TDK Corporation website. •All specifications are subject to change without notice. Copyright(c) TDK Corporation. All rights reserved VLM10555T-R56M120-3(DC = 0A) VLM10555T-R56M120-3(DC = 6A)
