Inductors for Power Circuits
Wound Ferrite
VLS-E series
VLS201610E
VLS201612E
VLS2010E
VLS2012E
VLS252008E
VLS252010E
VLS252012E
VLS252015E
VLS3010E
VLS3012E
VLS3015E
VLS4012E
(1/52)
I
N
D
U
C
T
O
R
S
REMINDERS FOR USING THESE PRODUCTS
Before using these products, be sure to request the delivery specifications.
SAFETY REMINDERS
Please pay sufficient attention to the warnings for safe designing when using these products.
REMINDERS
The storage period is less than 12 months. Be sure to follow the storage conditions (Temperature: 5 to 40°C, Humidity: 10 to 75% RH
or less).
If the storage period elapses, the soldering of the terminal electrodes may deteriorate.
Do not use or store in locations where there are conditions such as gas corrosion (salt, acid, alkali, etc.).
Before soldering, be sure to preheat components.
The preheating temperature should be set so that the temperature difference between the solder temperature and chip temperature
does not exceed 150°C.
Soldering corrections after mounting should be within the range of the conditions determined in the specifications.
If overheated, a short circuit, performance deterioration, or lifespan shortening may occur.
When embedding a printed circuit board where a chip is mounted to a set, be sure that residual stress is not given to the chip due to
the overall distortion of the printed circuit board and partial distortion such as at screw tightening portions.
Self heating (temperature increase) occurs when the power is turned ON, so the tolerance should be sufficient for the set thermal
design.
Carefully lay out the coil for the circuit board design of the non-magnetic shield type.
A malfunction may occur due to magnetic interference.
Use a wrist band to discharge static electricity in your body through the grounding wire.
Do not expose the products to magnets or magnetic fields.
Do not use for a purpose outside of the contents regulated in the delivery specifications.
The products listed on this catalog are intended for use in general electronic equipment (AV equipment, telecommunications
equipment, home appliances, amusement equipment, computer equipment, personal equipment, office equipment, measurement
equipment, industrial robots) under a normal operation and use condition.
The products are not designed or warranted to meet the requirements of the applications listed below, whose performance and/or
quality require a more stringent level of safety or reliability, or whose failure, malfunction or trouble could cause serious damage to
society, person or property.
If you intend to use the products in the applications listed below or if you have special requirements exceeding the range or conditions
set forth in the each catalog, please contact us.
(1) Aerospace/Aviation equipment
(2) Transportation equipment (cars, electric trains, ships, etc.)
(3) Medical equipment
(4) Power-generation control equipment
(5) Atomic energy-related equipment
(6) Seabed equipment
(7) Transportation control equipment
(8) Public information-processing equipment
(9) Military equipment
(10) Electric heating apparatus, burning equipment
(11) Disaster prevention/crime prevention equipment
(12) Safety equipment
(13) Other applications that are not considered general-purpose
applications
When designing your equipment even for general-purpose applications, you are kindly requested to take into consideration securing
protection circuit/device or providing backup circuits in your equipment.
001-01 / 20130516 / e531_vls.fm
(2/52)
I
N
D
U
C
T
O
R
S
Product compatible with RoHS directive
Halogen-free
Compatible with lead-free solders
Inductors for Power Circuits
Wound Ferrite
Overview of the VLS-E Series
FEATURES
Magnetic shield type wound inductor for power circuits.
Low-profile product lineup with max. heights of 0.8mm, 0.95mm, 1.0mm, 1.2mm, and 1.5mm allowing for different usages.
High magnetic shield construction and compatible with high-density mounting.
APPLICATION
Smart phones, tablet terminals, HDDs, SSDs, DVCs, DSCs, mobile display panels, portable game devices, compact power supply
modules, other
PART NUMBER CONSTRUCTION
VLS
Series name
201610
L×W×H Dimensions
(mm)
201610
2.0×1.6×1.0
201612
2.0×1.6×1.2
2010
2.0×2.0×1.0
2012
2.0×2.0×1.2
252008
2.5×2.0×0.8
252010
2.5×2.0×1.0
252012
2.5×2.0×1.2
252015
2.5×2.0×1.5
3010
3.0×3.0×1.0
3012
3.0×3.0×1.2
3015
3.0×3.0×1.5
4012
4.0×4.0×1.2
E
T
internal code
Packaging style
T
Taping
-
R47
N
Inductance
(µH)
R47
0.47
2R2
2.2
100
10
Inductance
tolerance
OPERATING TEMPERATURE RANGE, PACKAGE QUANTITY, PRODUCT WEIGHT
Temperature range
Package quantity
Operating
Storage
Type
temperature
temperature
(pieces/reel)
（°C）
（°C）
VLS201610E
–40 to +105
–40 to +105
2000
VLS201612E
–40 to +105
–40 to +105
2000
VLS2010E
–40 to +105
–40 to +105
2000
VLS2012E
–40 to +105
–40 to +105
2000
VLS252008E
–40 to +105
–40 to +105
2000
VLS252010E
–40 to +105
–40 to +105
2000
VLS252012E
–40 to +105
–40 to +105
2000
VLS252015E
–40 to +105
–40 to +105
2000
VLS3010E
–40 to +105
–40 to +105
2000
VLS3012E
–40 to +105
–40 to +105
2000
VLS3015E
–40 to +105
–40 to +105
2000
VLS4012E
–40 to +105
–40 to +105
1000
Operating temperature range includes self-temperature rise.
The Storage temperature range is for after the circuit board is mounted.
Individual weight
（mg）
12
14
16
17
17
15
24
28
36
40
52
67
RoHS Directive Compliant Product: See the following for more details related to RoHS Directive compliant products. http://www.tdk.co.jp/rohs/
Halogen-free: Indicates that Cl content is less than 900ppm, Br content is less than 900ppm, and that the total Cl and Br content is less than 1500ppm.
• All specifications are subject to change without notice.
001-01 / 20130516 / e531_vls.fm
(3/52)
I
N
D
U
C
T
O
R
S
Overview of the VLS-E Series
RECOMMENDED REFLOW PROFILE
Preheating
Soldering
Natural
cooling
Peak
T: Temperature
T4
T3
T2
T3
t3
T1
t1
t2
t: Time
Preheating
Temp.
T1
T2
150°C
180°C
Time
t1
60 to 120s
Soldering
Temp.
Time
T3
t2
230°C
30s
Peak
Temp.
T4
260°C
Time
t3
10s
• All specifications are subject to change without notice.
001-01 / 20130516 / e531_vls.fm
(4/52)
I
N
D
U
C
T
O
R
S
VLS-E series
VLS201610E Type
1.6±0.1
SHAPE & DIMENSIONS
(0.65)
0.95max.
2.0±0.1
(0.7)
(0.65)
Dimensions in mm
1.6
RECOMMENDED LAND PATTERN
0.65
0.7
0.65
Dimensions in mm
• All specifications are subject to change without notice.
001-01 / 20130516 / e531_vls.fm
(5/52)
I
N
D
U
C
T
O
R
S
VLS-E series VLS201610E Type
ELECTRICAL CHARACTERISTICS
CHARACTERISTICS SPECIFICATION TABLE
L
(µH)
0.47
0.68
1.0
1.5
2.2
3.3
4.7
6.8
10
Tolerance
±30%
±30%
±30%
±30%
±20%
±20%
±20%
±20%
±20%
Measuring
frequency
(MHz)
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
DC resistance
( )
max.
typ.
0.065
0.054
0.086
0.072
0.119
0.099
0.181
0.151
0.276
0.230
0.458
0.382
0.554
0.462
0.840
0.700
1.380
1.150
Rated current(A)
max.
typ.
Idc1
Idc1
1.85
2.10
1.65
1.85
1.35
1.50
1.10
1.20
0.94
1.05
0.75
0.84
0.64
0.72
0.53
0.59
0.40
0.45
Part No.
Idc2
1.95
1.65
1.40
1.15
0.95
0.73
0.67
0.54
0.42
VLS201610ET-R47N
VLS201610ET-R68N
VLS201610ET-1R0N
VLS201610ET-1R5N
VLS201610ET-2R2M
VLS201610ET-3R3M
VLS201610ET-4R7M
VLS201610ET-6R8M
VLS201610ET-100M
Rated current: smaller value of either Idc1 or Idc2.
Idc1: When based on the inductance change rate (30% below the nominal value)
Idc2: When based on the temperature increase (Temperature increase of 40°C by self heating)
○ Measurement equipment
Measurement item
Product No.
L
4194A
DC resistance
VP-2941A
Rated current Idc1
4285A+42841A+42842C
＊ Equivalent measurement equipment may be used.
Manufacturer
Agilent Technologies
Panasonic
Agilent Technologies
• All specifications are subject to change without notice.
001-01 / 20130516 / e531_vls.fm
(6/52)
I
N
D
U
C
T
O
R
S
VLS-E series VLS201610E Type
ELECTRICAL CHARACTERISTICS
L FREQUENCY CHARACTERISTICS GRAPH
100
100M
6R8M
Inductance(µH)
10
4R7M
3R3M
2R2M
1R5N
1R0N
1
R68N
R47N
0.1
0.01
0.1
1
10
100
1000
Frequency(MHz)
○ Measurement equipment
Product No.
Manufacturer
4294A
Agilent Technologies
＊ Equivalent measurement equipment may be used.
• All specifications are subject to change without notice.
001-01 / 20130516 / e531_vls.fm
(7/52)
I
N
D
U
C
T
O
R
S
VLS-E series VLS201610E Type
ELECTRICAL CHARACTERISTICS
INDUCTANCE VS. DC BIAS CHARACTERISTICS GRAPH
100
100M
Inductance(µH)
10
6R8M
4R7M
3R3M
2R2M
1R5N
1R0N
1
R68N
R47N
0.1
0
0.5
1
1.5
2
2.5
DC current(A)
○ Measurement equipment
Product No.
Manufacturer
4285A+42841A+42842C
Agilent Technologies
＊ Equivalent measurement equipment may be used.
• All specifications are subject to change without notice.
001-01 / 20130516 / e531_vls.fm
(8/52)
I
N
D
U
C
T
O
R
S
VLS-E series
VLS201612E Type
1.6±0.1
SHAPE & DIMENSIONS
(0.65)
1.2max.
2.0±0.1
(0.7)
(0.65)
Dimensions in mm
1.6
RECOMMENDED LAND PATTERN
0.65
0.7
0.65
Dimensions in mm
• All specifications are subject to change without notice.
001-01 / 20130516 / e531_vls.fm
(9/52)
I
N
D
U
C
T
O
R
S
VLS-E series VLS201612E Type
ELECTRICAL CHARACTERISTICS
CHARACTERISTICS SPECIFICATION TABLE
L
(µH)
0.47
0.68
1.0
1.5
2.2
3.3
4.7
6.8
10
tolerance
±30%
±30%
±30%
±30%
±20%
±20%
±20%
±20%
±20%
Measuring
frequency
(MHz)
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
DC resistance
( )
max.
typ.
0.063
0.052
0.072
0.060
0.093
0.077
0.159
0.132
0.195
0.162
0.357
0.297
0.438
0.365
0.708
0.590
1.026
0.855
Rated current(A)
max.
typ.
Idc1
Idc1
1.90
2.15
1.70
1.90
1.50
1.65
1.20
1.30
1.05
1.15
0.79
0.88
0.70
0.78
0.58
0.65
0.47
0.53
Part No.
Idc2
2.00
1.85
1.65
1.25
1.15
0.85
0.75
0.60
0.50
VLS201612ET-R47N
VLS201612ET-R68N
VLS201612ET-1R0N
VLS201612ET-1R5N
VLS201612ET-2R2M
VLS201612ET-3R3M
VLS201612ET-4R7M
VLS201612ET-6R8M
VLS201612ET-100M
Rated current: smaller value of either Idc1 or Idc2.
Idc1: When based on the inductance change rate (30% below the nominal value)
Idc2: When based on the temperature increase (Temperature increase of 40°C by self heating)
○ Measurement equipment
Measurement item
Product No.
L
4194A
DC resistance
VP-2941A
Rated current Idc1
4285A+42841A+42842C
＊ Equivalent measurement equipment may be used.
Manufacturer
Agilent Technologies
Panasonic
Agilent Technologies
• All specifications are subject to change without notice.
001-01 / 20130516 / e531_vls.fm
(10/52)
I
N
D
U
C
T
O
R
S
VLS-E series VLS201612E Type
ELECTRICAL CHARACTERISTICS
L FREQUENCY CHARACTERISTICS GRAPH
100
100M
6R8M
4R7M
Inductance(µH)
10
3R3M
2R2M
1R5N
1R0N
1
R68N
R47N
0.1
0.01
0.1
1
10
100
1000
Frequency(MHz)
○ Measurement equipment
Product No.
Manufacturer
4294A
Agilent Technologies
＊ Equivalent measurement equipment may be used.
• All specifications are subject to change without notice.
001-01 / 20130516 / e531_vls.fm
(11/52)
I
N
D
U
C
T
O
R
S
VLS-E series VLS201612E Type
ELECTRICAL CHARACTERISTICS
INDUCTANCE VS. DC BIAS CHARACTERISTICS GRAPH
100
Inductance(µH)
10
100M
6R8M
4R7M
3R3M
2R2M
1R5N
1
1R0N
R68N
R47N
0.1
0
0.5
1
1.5
2
2.5
DC current(A)
○ Measurement equipment
Product No.
Manufacturer
4285A+42841A+42842C
Agilent Technologies
＊ Equivalent measurement equipment may be used.
• All specifications are subject to change without notice.
001-01 / 20130516 / e531_vls.fm
(12/52)
I
N
D
U
C
T
O
R
S
VLS-E series
VLS2010E Type
2.0±0.1
SHAPE & DIMENSIONS
(0.65)
(0.7)
(0.65)
1.0max.
2.0±0.1
Dimensions in mm
1.6
RECOMMENDED LAND PATTERN
0.65
0.7
0.65
Dimensions in mm
• All specifications are subject to change without notice.
001-01 / 20130516 / e531_vls.fm
(13/52)
I
N
D
U
C
T
O
R
S
VLS-E series VLS2010E Type
ELECTRICAL CHARACTERISTICS
CHARACTERISTICS SPECIFICATION TABLE
L
(µH)
0.56
1.0
1.5
2.2
3.3
4.7
6.8
10
15
22
Tolerance
±30%
±30%
±30%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
Measuring
frequency
(MHz)
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
DC resistance
( )
max.
typ.
0.060
0.050
0.108
0.090
0.156
0.130
0.228
0.190
0.348
0.290
0.408
0.340
0.648
0.540
0.936
0.780
1.476
1.230
2.040
1.700
Rated current(A)
max.
typ.
Idc1
Idc1
2.00
2.25
1.45
1.65
1.20
1.30
1.00
1.10
0.83
0.93
0.70
0.78
0.57
0.64
0.47
0.52
0.40
0.44
0.33
0.37
Part No.
Idc2
2.05
1.55
1.25
1.05
0.86
0.79
0.63
0.52
0.41
0.35

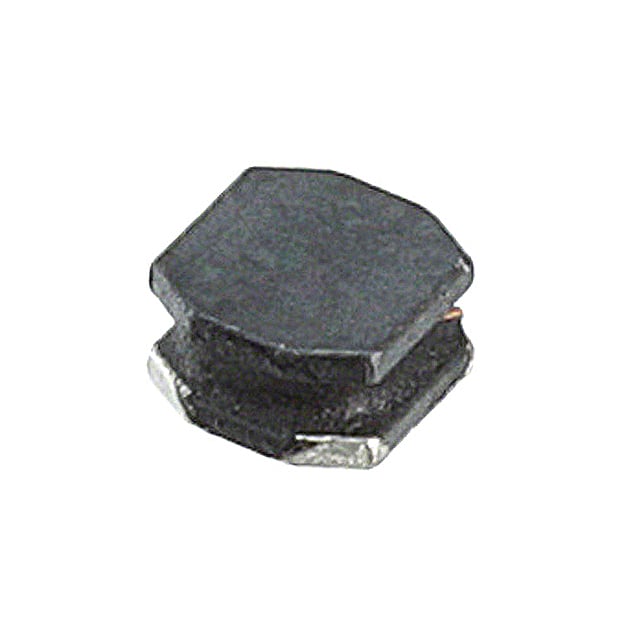

VLS2010ET-R56N
VLS2010ET-1R0N
VLS2010ET-1R5N
VLS2010ET-2R2M
VLS2010ET-3R3M
VLS2010ET-4R7M
VLS2010ET-6R8M
VLS2010ET-100M
VLS2010ET-150M
VLS2010ET-220M
Rated current: smaller value of either Idc1 or Idc2.
Idc1: When based on the inductance change rate (30% below the nominal value)
Idc2: When based on the temperature increase (Temperature increase of 40°C by self heating)
○ Measurement equipment
Measurement item
Product No.
L
4194A
DC resistance
VP-2941A
Rated current Idc1
4285A+42841A+42842C
＊ Equivalent measurement equipment may be used.
Manufacturer
Agilent Technologies
Panasonic
Agilent Technologies
• All specifications are subject to change without notice.
001-01 / 20130516 / e531_vls.fm
(14/52)
I
N
D
U
C
T
O
R
S
VLS-E series VLS2010E Type
ELECTRICAL CHARACTERISTICS
L FREQUENCY CHARACTERISTICS GRAPH
100
220M
150M
100M
6R8M
Inductance(µH)
10
4R7M
3R3M
2R2M
1R5N
1R0N
1
R56N
0.1
0.01
0.01
0.1
1
10
100
1000
Frequency(MHz)
○ Measurement equipment
Product No.
Manufacturer
4294A
Agilent Technologies
＊ Equivalent measurement equipment may be used.
• All specifications are subject to change without notice.
001-01 / 20130516 / e531_vls.fm
(15/52)
I
N
D
U
C
T
O
R
S
VLS-E series VLS2010E Type
ELECTRICAL CHARACTERISTICS
INDUCTANCE VS. DC BIAS CHARACTERISTICS GRAPH
100
220M
150M
Inductance(µH)
10
100M
6R8M
4R7M
3R3M
2R2M
1R5N
1
1R0N
R56N
0.1
0
0.5
1
1.5
2
2.5
DC current(A)
○ Measurement equipment
Product No.
Manufacturer
4285A+42841A+42842C
Agilent Technologies
＊ Equivalent measurement equipment may be used.
• All specifications are subject to change without notice.
001-01 / 20130516 / e531_vls.fm
(16/52)
I
N
D
U
C
T
O
R
S
(0.7)
(0.65)
VLS-E series
VLS2012E Type
2.0±0.1
SHAPE & DIMENSIONS
(0.65)
1.2max.
2.0±0.1
Dimensions in mm
2.0
RECOMMENDED LAND PATTERN
0.65
0.7
0.65
Dimensions in mm
• All specifications are subject to change without notice.
001-01 / 20130516 / e531_vls.fm
(17/52)
I
N
D
U
C
T
O
R
S
VLS-E series VLS2012E Type
ELECTRICAL CHARACTERISTICS
CHARACTERISTICS SPECIFICATION TABLE
L
(µH)
0.47
0.68
1.0
1.5
2.2
3.3
4.7
6.8
10
15
22
Tolerance
±30%
±30%
±30%
±30%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
Measuring
frequency
(MHz)
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
DC resistance
( )
max.
typ.
0.059
0.049
0.066
0.055
0.086
0.071
0.108
0.090
0.153
0.127
0.228
0.190
0.336
0.280
0.498
0.415
0.834
0.695
1.062
0.885
1.764
1.470
Rated current(A)
max.
typ.
Idc1
Idc1
2.05
2.25
1.70
1.90
1.45
1.65
1.20
1.30
1.00
1.10
0.84
0.93
0.70
0.78
0.57
0.64
0.47
0.52
0.40
0.44
0.33
0.37
Part No.
Idc2
2.00
1.85
1.65
1.45
1.25
1.00
0.84
0.69
0.53
0.47
0.35
VLS2012ET-R47N
VLS2012ET-R68N
VLS2012ET-1R0N
VLS2012ET-1R5N
VLS2012ET-2R2M
VLS2012ET-3R3M
VLS2012ET-4R7M
VLS2012ET-6R8M
VLS2012ET-100M
VLS2012ET-150M
VLS2012ET-220M
Rated current: smaller value of either Idc1 or Idc2.
Idc1: When based on the inductance change rate (30% below the nominal value)
Idc2: When based on the temperature increase (Temperature increase of 40°C by self heating)
○ Measurement equipment
Measurement item
Product No.
L
4194A
DC resistance
VP-2941A
Rated current Idc1
4285A+42841A+42842C
＊ Equivalent measurement equipment may be used.
Manufacturer
Agilent Technologies
Panasonic
Agilent Technologies
• All specifications are subject to change without notice.
001-01 / 20130516 / e531_vls.fm
(18/52)
I
N
D
U
C
T
O
R
S
VLS-E series VLS2012E Type
ELECTRICAL CHARACTERISTICS
L FREQUENCY CHARACTERISTICS GRAPH
100
220M
150M
100M
6R8M
4R7M
10
3R3M
2R2M
1R5N
1R0N
1
Inductance(µH)
R68N
R47N
0.1
0.01
0.001
0.1
1
10
Frequency(MHz)
100
1000
○ Measurement equipment
Product No.
Manufacturer
4294A
Agilent Technologies
＊ Equivalent measurement equipment may be used.
• All specifications are subject to change without notice.
001-01 / 20130516 / e531_vls.fm
(19/52)
I
N
D
U
C
T
O
R
S
VLS-E series VLS2012EType
ELECTRICAL CHARACTERISTICS
INDUCTANCE VS. DC BIAS CHARACTERISTICS GRAPH
100
220M
150M
10
100M
Inductance(µH)
6R8M
4R7M
3R3M
2R2M
1R5N
1
1R0N
R68N
R47N
0.1
0
0.5
1
1.5
2
2.5
DC current(A)
○ Measurement equipment
Product No.
Manufacturer
4285A+42841A+42842C
Agilent Technologies
＊ Equivalent measurement equipment may be used.
• All specifications are subject to change without notice.
001-01 / 20130516 / e531_vls.fm
(20/52)
I
N
D
U
C
T
O
R
S
VLS-E series
VLS252008E Type
2.0±0.1
SHAPE & DIMENSIONS
(0.85)
0.8max.
2.5±0.1
(0.8)
(0.85)
Dimensions in mm
2.0
RECOMMENDED LAND PATTERN
0.85
0.8
0.85
Dimensions in mm
• All specifications are subject to change without notice.
001-01 / 20130516 / e531_vls.fm
(21/52)
I
N
D
U
C
T
O
R
S
VLS-E series VLS252008E Type
ELECTRICAL CHARACTERISTICS
CHARACTERISTICS SPECIFICATION TABLE
L
(µH)
0.47
1.0
1.5
2.2
3.3
4.7
6.8
10.0
Tolerance
±30%
±30%
±30%
±20%
±20%
±20%
±20%
±20%
Measuring
frequency
(MHz)
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
DC resistance
( )
max.
typ.
0.140
0.116
0.219
0.182
0.248
0.206
0.290
0.241
0.416
0.346
0.580
0.483
0.818
0.681
1.232
1.026
Rated current(A)
max.
typ.
Idc1
Idc1
1.65
1.80
1.20
1.35
1.00
1.10
0.77
0.86
0.73
0.82
0.61
0.68
0.49
0.55
0.43
0.48
Part No.
Idc2
1.20
0.97
0.91
0.84
0.70
0.59
0.50
0.41
VLS252008ET-R47N
VLS252008ET-1R0N
VLS252008ET-1R5N
VLS252008ET-2R2M
VLS252008ET-3R3M
VLS252008ET-4R7M
VLS252008ET-6R8M
VLS252008ET-100M
Rated current: smaller value of either Idc1 or Idc2.
Idc1: When based on the inductance change rate (30% below the nominal value)
Idc2: When based on the temperature increase (Temperature increase of 40°C by self heating)
○ Measurement equipment
Measurement item
Product No.
L
4194A
DC resistance
VP-2941A
Rated current Idc1
4285A+42841A+42842C
＊ Equivalent measurement equipment may be used.
Manufacturer
Agilent Technologies
Panasonic
Agilent Technologies
• All specifications are subject to change without notice.
001-01 / 20130516 / e531_vls.fm
(22/52)
I
N
D
U
C
T
O
R
S
VLS-E series VLS252008E Type
ELECTRICAL CHARACTERISTICS
L FREQUENCY CHARACTERISTICS GRAPH
100
100M
6R8M
4R7M
Inductance(µH)
10
3R3M
2R2M
1R5N
1
1R0N
R47N
0.1
0.1
1
10
Frequency(MHz)
100
1000
○ Measurement equipment
Product No.
Manufacturer
4294A
Agilent Technologies
＊ Equivalent measurement equipment may be used.
• All specifications are subject to change without notice.
001-01 / 20130516 / e531_vls.fm
(23/52)
I
N
D
U
C
T
O
R
S
VLS-E series VLS252008E Type
ELECTRICAL CHARACTERISTICS
INDUCTANCE VS. DC BIAS CHARACTERISTICS GRAPH
100
Inductance(µH)
10
100M
6R8M
4R7M
3R3M
2R2M
1R5N
1
1R0N
R47N
0.1
0
0.5
1
1.5
2
2.5
DC current(A)
○ Measurement equipment
Product No.
Manufacturer
4285A+42841A+42842C
Agilent Technologies
＊ Equivalent measurement equipment may be used.
• All specifications are subject to change without notice.
001-01 / 20130516 / e531_vls.fm
(24/52)
I
N
D
U
C
T
O
R
S
VLS-E series
VLS252010E Type
2.0±0.1
SHAPE & DIMENSIONS
(0.85)
1.0max.
2.5±0.1
(0.8)
(0.85)
Dimensions in mm
2.0
RECOMMENDED LAND PATTERN
0.85
0.8
0.85
Dimensions in mm
• All specifications are subject to change without notice.
001-01 / 20130516 / e531_vls.fm
(25/52)
I
N
D
U
C
T
O
R
S
VLS-E series VLS252010E Type
ELECTRICAL CHARACTERISTICS
CHARACTERISTICS SPECIFICATION TABLE
L
(µH)
0.47
0.68
1.0
1.5
2.2
3.3
4.7
6.8
10
Tolerance
±30%
±30%
±30%
±30%
±20%
±20%
±20%
±20%
±20%
Measuring
frequency
(MHz)
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
DC resistance
( )
max.
typ.
0.046
0.038
0.062
0.052
0.084
0.070
0.128
0.107
0.190
0.158
0.275
0.229
0.398
0.332
0.532
0.443
0.854
0.712
Rated current(A)
max.
typ.
Idc1
Idc1
2.50
2.80
2.05
2.30
1.75
1.90
1.45
1.60
1.20
1.30
0.94
1.05
0.80
0.89
0.68
0.76
0.56
0.63
Part No.
Idc2
2.65
2.20
1.90
1.50
1.20
1.00
0.82
0.71
0.55
VLS252010ET-R47N
VLS252010ET-R68N
VLS252010ET-1R0N
VLS252010ET-1R5N
VLS252010ET-2R2M
VLS252010ET-3R3M
VLS252010ET-4R7M
VLS252010ET-6R8M
VLS252010ET-100M
Rated current: smaller value of either Idc1 or Idc2.
Idc1: When based on the inductance change rate (30% below the nominal value)
Idc2: When based on the temperature increase (Temperature increase of 40°C by self heating)
○ Measurement equipment
Measurement item
Product No.
L
4194A
DC resistance
VP-2941A
Rated current Idc1
4285A+42841A+42842C
＊ Equivalent measurement equipment may be used.
Manufacturer
Agilent Technologies
Panasonic
Agilent Technologies
• All specifications are subject to change without notice.
001-01 / 20130516 / e531_vls.fm
(26/52)
I
N
D
U
C
T
O
R
S
VLS-E series VLS252010E Type
ELECTRICAL CHARACTERISTICS
L FREQUENCY CHARACTERISTICS GRAPH
100
100M
6R8M
Inductance(µH)
10
4R7M
3R3M
2R2M
1R5N
1R0N
1
R68N
R47N
0.1
0.01
0.1
1
10
100
1000
Frequency(MHz)
○ Measurement equipment
Product No.
Manufacturer
4294A
Agilent Technologies
＊ Equivalent measurement equipment may be used.
• All specifications are subject to change without notice.
001-01 / 20130516 / e531_vls.fm
(27/52)
I
N
D
U
C
T
O
R
S
VLS-E series VLS252010E Type
ELECTRICAL CHARACTERISTICS
INDUCTANCE VS. DC BIAS CHARACTERISTICS GRAPH
100
Inductance(µH)
10
100M
6R8M
4R7M
3R3M
2R2M
1R5N
1
1R0N
R68N
0.1
0
0.5
1
1.5
DC current(A)
2
2.5
R47N
3
○ Measurement equipment
Product No.
Manufacturer
4285A+42841A+42842C
Agilent Technologies
＊ Equivalent measurement equipment may be used.
• All specifications are subject to change without notice.
001-01 / 20130516 / e531_vls.fm
(28/52)
I
N
D
U
C
T
O
R
S
VLS-E series
VLS252012E Type
2.0±0.1
SHAPE & DIMENSIONS
(0.85)
1.2max.
2.5±0.1
(0.8)
(0.85)
Dimensions in mm
2.0
RECOMMENDED LAND PATTERN
0.85
0.8
0.85
Dimensions in mm
• All specifications are subject to change without notice.
001-01 / 20130516 / e531_vls.fm
(29/52)
I
N
D
U
C
T
O
R
S
VLS-E series VLS252012E Type
ELECTRICAL CHARACTERISTICS
CHARACTERISTICS SPECIFICATION TABLE
L
(µH)
0.47
1.0
1.5
2.2
3.3
4.7
6.8
10
Tolerance
±30%
±30%
±30%
±20%
±20%
±20%
±20%
±20%
Measuring
frequency
(MHz)
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
DC resistance
( )
max.
typ.
0.056
0.047
0.087
0.073
0.126
0.105
0.154
0.129
0.272
0.227
0.405
0.338
0.612
0.510
0.756
0.630
Rated current(A)
max.
typ.
Idc1
Idc1
2.75
3.10
2.20
2.45
1.80
2.00
1.55
1.75
1.25
1.40
1.05
1.20
0.85
0.95
0.73
0.82
Part No.
Idc2
2.15
1.70
1.45
1.30
0.98
0.81
0.65
0.59
VLS252012ET-R47N
VLS252012ET-1R0N
VLS252012ET-1R5N
VLS252012ET-2R2M
VLS252012ET-3R3M
VLS252012ET-4R7M
VLS252012ET-6R8M
VLS252012ET-100M
Rated current: smaller value of either Idc1 or Idc2.
Idc1: When based on the inductance change rate (30% below the nominal value)
Idc2: When based on the temperature increase (Temperature increase of 40°C by self heating)
○ Measurement equipment
Measurement item
Product No.
L
4194A
DC resistance
VP-2941A
Rated current Idc1
4285A+42841A+42842C
＊ Equivalent measurement equipment may be used.
Manufacturer
Agilent Technologies
Panasonic
Agilent Technologies
• All specifications are subject to change without notice.
001-01 / 20130516 / e531_vls.fm
(30/52)
I
N
D
U
C
T
O
R
S
VLS-E series VLS252012E Type
ELECTRICAL CHARACTERISTICS
L FREQUENCY CHARACTERISTICS GRAPH
100
100M
6R8M
4R7M
Inductance(µH)
10
3R3M
2R2M
1R5N
1R0N
1
R47N
0.1
0.01
0.1
1
10
100
1000
Frequency(MHz)
○ Measurement equipment
Product No.
Manufacturer
4294A
Agilent Technologies
＊ Equivalent measurement equipment may be used.
• All specifications are subject to change without notice.
001-01 / 20130516 / e531_vls.fm
(31/52)
I
N
D
U
C
T
O
R
S
VLS-E series VLS252012E Type
ELECTRICAL CHARACTERISTICS
INDUCTANCE VS. DC BIAS CHARACTERISTICS GRAPH
100
Inductance(µH)
10
100M
6R8M
4R7M
3R3M
2R2M
1R5N
1
1R0N
R47N
0.1
0
0.5
1
1.5
2
DC current(A)
2.5
3
3.5
4
○ Measurement equipment
Product No.
Manufacturer
4285A+42841A+42842C
Agilent Technologies
＊ Equivalent measurement equipment may be used.
• All specifications are subject to change without notice.
001-01 / 20130516 / e531_vls.fm
(32/52)
I
N
D
U
C
T
O
R
S
VLS-E series
VLS252015E Type
2.0±0.1
SHAPE & DIMENSIONS
(0.85)
1.5max.
2.5±0.1
(0.8)
(0.85)
Dimensions in mm
2.0
RECOMMENDED LAND PATTERN
0.85
0.8
0.85
Dimensions in mm
• All specifications are subject to change without notice.
001-01 / 20130516 / e531_vls.fm
(33/52)
I
N
D
U
C
T
O
R
S
VLS-E series VLS252015E Type
ELECTRICAL CHARACTERISTICS
CHARACTERISTICS SPECIFICATION TABLE
L
(µH)
1.0
1.5
2.2
3.3
4.7
6.8
10
Tolerance
±30%
±30%
±20%
±20%
±20%
±20%
±20%
Measuring
frequency
(MHz)
1.0
1.0
1.0
1.0
1.0
1.0
1.0
DC resistance
( )
max.
typ.
0.082
0.068
0.120
0.100
0.160
0.133
0.219
0.182
0.318
0.265
0.480
0.400
0.588
0.490
Rated current(A)
max.
typ.
Idc1
Idc1
1.95
2.20
1.75
1.95
1.50
1.70
1.20
1.35
1.00
1.15
0.85
0.95
0.72
0.80
Part No.
Idc2
1.75
1.45
1.25
1.05
0.89
0.73
0.66
VLS252015ET-1R0N
VLS252015ET-1R5N
VLS252015ET-2R2M
VLS252015ET-3R3M
VLS252015ET-4R7M
VLS252015ET-6R8M
VLS252015ET-100M
Rated current: smaller value of either Idc1 or Idc2.
Idc1: When based on the inductance change rate (30% below the nominal value)
Idc2: When based on the temperature increase (Temperature increase of 40°C by self heating)
○ Measurement equipment
Measurement item
Product No.
L
4194A
DC resistance
VP-2941A
Rated current Idc1
4285A+42841A+42842C
＊ Equivalent measurement equipment may be used.
Manufacturer
Agilent Technologies
Panasonic
Agilent Technologies
• All specifications are subject to change without notice.
001-01 / 20130516 / e531_vls.fm
(34/52)
I
N
D
U
C
T
O
R
S
VLS-E series VLS252015E Type
ELECTRICAL CHARACTERISTICS
L FREQUENCY CHARACTERISTICS GRAPH
100
100M
6R8M
4R7M
3R3M
2R2M
Inductance(µH)
10
1R5N
1R0N
1
0.1
0.01
0.01
0.1
1
10
100
1000
Frequency(MHz)
○ Measurement equipment
Product No.
Manufacturer
4294A
Agilent Technologies
＊ Equivalent measurement equipment may be used.
• All specifications are subject to change without notice.
001-01 / 20130516 / e531_vls.fm
(35/52)
I
N
D
U
C
T
O
R
S
VLS-E series VLS252015E Type
ELECTRICAL CHARACTERISTICS
INDUCTANCE VS. DC BIAS CHARACTERISTICS GRAPH
100
Inductance(µH)
10
100M
6R8M
4R7M
3R3M
2R2M
1R5N
1
1R0N
0.1
0
0.5
1
1.5
2
2.5
DC current(A)
○ Measurement equipment
Product No.
Manufacturer
4285A+42841A+42842C
Agilent Technologies
＊ Equivalent measurement equipment may be used.
• All specifications are subject to change without notice.
001-01 / 20130516 / e531_vls.fm
(36/52)
I
N
D
U
C
T
O
R
S
VLS-E series
VLS3010E Type
3.0±0.1
SHAPE & DIMENSIONS
(0.9)
(1.2)
(0.9)
1.0max.
3.0±0.1
Dimensions in mm
3.0
RECOMMENDED LAND PATTERN
1.0
1.0
1.0
Dimensions in mm
• All specifications are subject to change without notice.
001-01 / 20130516 / e531_vls.fm
(37/52)
I
N
D
U
C
T
O
R
S
VLS-E series VLS3010E Type
ELECTRICAL CHARACTERISTICS
CHARACTERISTICS SPECIFICATION TABLE
L
(µH)
1.0
1.5
2.2
3.3
4.7
6.8
10
15
22
tolerance
±30%
±30%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
Measuring
frequency
(MHz)
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
DC resistance
( )
max.
typ.
0.072
0.060
0.085
0.071
0.116
0.097
0.156
0.130
0.204
0.170
0.312
0.260
0.468
0.390
0.612
0.510
0.900
0.750
Rated current(A)
max.
typ.
Idc1
Idc1
1.60
1.80
1.35
1.50
1.20
1.30
1.00
1.10
0.81
0.90
0.69
0.77
0.56
0.63
0.48
0.54
0.38
0.43
Part No.
Idc2
2.10
1.90
1.70
1.50
1.30
1.00
0.80
0.70
0.60
VLS3010ET-1R0N
VLS3010ET-1R5N
VLS3010ET-2R2M
VLS3010ET-3R3M
VLS3010ET-4R7M
VLS3010ET-6R8M
VLS3010ET-100M
VLS3010ET-150M
VLS3010ET-220M
Rated current: smaller value of either Idc1 or Idc2.
Idc1: When based on the inductance change rate (30% below the nominal value)
Idc2: When based on the temperature increase (Temperature increase of 40°C by self heating)
○ Measurement equipment
Measurement item
Product No.
L
4194A
DC resistance
VP-2941A
Rated current Idc1
4285A+42841A+42842C
＊ Equivalent measurement equipment may be used.
Manufacturer
Agilent Technologies
Panasonic
Agilent Technologies
• All specifications are subject to change without notice.
001-01 / 20130516 / e531_vls.fm
(38/52)
I
N
D
U
C
T
O
R
S
VLS-E series VLS3010E Type
ELECTRICAL CHARACTERISTICS
L FREQUENCY CHARACTERISTICS GRAPH
100
220M
150M
100M
6R8M
Inductance(µH)
10
4R7M
3R3M
2R2M
1R5N
1
0.1
0.01
1R0N
0.1
1
10
100
1000
Frequency(MHz)
○ Measurement equipment
Product No.
Manufacturer
4294A
Agilent Technologies
＊ Equivalent measurement equipment may be used.
• All specifications are subject to change without notice.
001-01 / 20130516 / e531_vls.fm
(39/52)
I
N
D
U
C
T
O
R
S
VLS-E series VLS3010E Type
ELECTRICAL CHARACTERISTICS
INDUCTANCE VS. DC BIAS CHARACTERISTICS GRAPH
100
220M
150M
Inductance(µH)
10
100M
6R8M
4R7M
3R3M
2R2M
1
1R5N
1R0N
0.1
0
0.5
1
1.5
2
2.5
DC current(A)
○ Measurement equipment
Product No.
Manufacturer
4285A+42841A+42842C
Agilent Technologies
＊ Equivalent measurement equipment may be used.
• All specifications are subject to change without notice.
001-01 / 20130516 / e531_vls.fm
(40/52)
I
N
D
U
C
T
O
R
S
(1.2)
(0.9)
VLS-E series
VLS3012E Type
3.0±0.1
SHAPE & DIMENSIONS
(0.9)
1.2max.
3.0±0.1
Dimensions in mm
3.0
RECOMMENDED LAND PATTERN
1.0
1.0
1.0
Dimensions in mm
• All specifications are subject to change without notice.
001-01 / 20130516 / e531_vls.fm
(41/52)
I
N
D
U
C
T
O
R
S
VLS-E series VLS3012E Type
ELECTRICAL CHARACTERISTICS
CHARACTERISTICS SPECIFICATION TABLE
L
(µH)
1.0
1.5
2.2
3.3
4.7
6.8
10
15
22
33
47
Tolerance
±30%
±30%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
Measuring
frequency
(MHz)
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
DC resistance
( )
max.
typ.
0.068
0.056
0.076
0.063
0.096
0.080
0.120
0.100
0.156
0.130
0.228
0.190
0.336
0.280
0.516
0.430
0.756
0.630
1.248
1.040
1.500
1.250
Rated current(A)
max.
typ.
Idc1
Idc1
1.90
2.15
1.50
1.70
1.35
1.50
1.05
1.20
0.95
1.05
0.81
0.90
0.64
0.76
0.55
0.62
0.44
0.49
0.37
0.41
0.31
0.35
Part No.
Idc2
2.00
1.85
1.70
1.55
1.30
1.05
0.89
0.74
0.61
0.48
0.44
VLS3012ET-1R0N
VLS3012ET-1R5N
VLS3012ET-2R2M
VLS3012ET-3R3M
VLS3012ET-4R7M
VLS3012ET-6R8M
VLS3012ET-100M
VLS3012ET-150M
VLS3012ET-220M
VLS3012ET-330M
VLS3012ET-470M
Rated current: smaller value of either Idc1 or Idc2.
Idc1: When based on the inductance change rate (30% below the nominal value)
Idc2: When based on the temperature increase (Temperature increase of 40°C by self heating)
○ Measurement equipment
Measurement item
Product No.
L
4194A
DC resistance
VP-2941A
Rated current Idc1
4285A+42841A+42842C
＊ Equivalent measurement equipment may be used.
Manufacturer
Agilent Technologies
Panasonic
Agilent Technologies
• All specifications are subject to change without notice.
001-01 / 20130516 / e531_vls.fm
(42/52)
I
N
D
U
C
T
O
R
S
VLS-E series VLS3012E Type
ELECTRICAL CHARACTERISTICS
L FREQUENCY CHARACTERISTICS GRAPH
1000
100
470M
330M
Inductance(µH)
220M
150M
10
100M
6R8M
4R7M
3R3M
2R2M
1R5N
1
1R0N
0.1
0.01
0.1
1
10
100
1000
Frequency(MHz)
○ Measurement equipment
Product No.
Manufacturer
4294A
Agilent Technologies
＊ Equivalent measurement equipment may be used.
• All specifications are subject to change without notice.
001-01 / 20130516 / e531_vls.fm
(43/52)
I
N
D
U
C
T
O
R
S
VLS-E series VLS3012E Type
ELECTRICAL CHARACTERISTICS
INDUCTANCE VS. DC BIAS CHARACTERISTICS GRAPH
100
470M
330M
220M
150M
10
100M
Inductance(µH)
6R8M
4R7M
3R3M
2R2M
1R5N
1
0.1
1R0N
0
0.5
1
1.5
DC current(A)
2
2.5
3
○ Measurement equipment
Product No.
Manufacturer
4285A+42841A+42842C
Agilent Technologies
＊ Equivalent measurement equipment may be used.
• All specifications are subject to change without notice.
001-01 / 20130516 / e531_vls.fm
(44/52)
I
N
D
U
C
T
O
R
S
VLS-E series
VLS3015E Type
3.0±0.1
SHAPE & DIMENSIONS
(0.9)
1.5max.
3.0±0.1
(1.2)
(0.9)
Dimensions in mm
3.0
RECOMMENDED LAND PATTERN
1.0
1.0
1.0
Dimensions in mm
• All specifications are subject to change without notice.
001-01 / 20130516 / e531_vls.fm
(45/52)
I
N
D
U
C
T
O
R
S
VLS-E series VLS3015E Type
ELECTRICAL CHARACTERISTICS
CHARACTERISTICS SPECIFICATION TABLE
L
(µH)
1.0
1.5
2.2
3.3
4.7
6.8
10
15
22
33
47
tolerance
±30%
±30%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
Measuring
frequency
(MHz)
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
DC resistance
( )
max.
typ.
0.058
0.048
0.075
0.062
0.084
0.070
0.112
0.093
0.136
0.113
0.216
0.180
0.288
0.240
0.456
0.380
0.660
0.550
0.984
0.820
1.500
1.250
Rated current(A)
max.
typ.
Idc1
Idc1
2.00
2.20
1.50
1.70
1.35
1.50
1.15
1.30
1.00
1.10
0.92
1.00
0.70
0.78
0.58
0.65
0.48
0.54
0.39
0.43
0.32
0.35
Part No.
Idc2
2.10
1.85
1.75
1.50
1.35
1.05
0.94
0.75
0.62
0.51
0.41
VLS3015ET-1R0N
VLS3015ET-1R5N
VLS3015ET-2R2M
VLS3015ET-3R3M
VLS3015ET-4R7M
VLS3015ET-6R8M
VLS3015ET-100M
VLS3015ET-150M
VLS3015ET-220M
VLS3015ET-330M
VLS3015ET-470M
Rated current: smaller value of either Idc1 or Idc2.
Idc1: When based on the inductance change rate (30% below the nominal value)
Idc2: When based on the temperature increase (Temperature increase of 40°C by self heating)
○ Measurement equipment
Measurement item
Product No.
L
4194A
DC resistance
VP-2941A
Rated current Idc1
4285A+42841A+42842C
＊ Equivalent measurement equipment may be used.
Manufacturer
Agilent Technologies
Panasonic
Agilent Technologies
• All specifications are subject to change without notice.
001-01 / 20130516 / e531_vls.fm
(46/52)
I
N
D
U
C
T
O
R
S
VLS-E series VLS3015E Type
ELECTRICAL CHARACTERISTICS
L FREQUENCY CHARACTERISTICS GRAPH
1000
100
470M
330M
Inductance(µH)
220M
150M
100M
10
6R8M
4R7M
3R3M
2R2M
1R5N
1
1R0N
0.1
0.01
0.1
1
10
100
1000
Frequency(MHz)
○ Measurement equipment
Product No.
Manufacturer
4294A
Agilent Technologies
＊ Equivalent measurement equipment may be used.
• All specifications are subject to change without notice.
001-01 / 20130516 / e531_vls.fm
(47/52)
I
N
D
U
C
T
O
R
S
VLS-E series VLS3015E Type
ELECTRICAL CHARACTERISTICS
INDUCTANCE VS. DC BIAS CHARACTERISTICS GRAPH
100
470M
330M
220M
150M
10
100M
Inductance(µH)
6R8M
4R7M
3R3M
2R2M
1R5N
1
0.1
1R0N
0
0.5
1
1.5
2
2.5
DC current(A)
○ Measurement equipment
Product No.
Manufacturer
4285A+42841A+42842C
Agilent Technologies
＊ Equivalent measurement equipment may be used.
• All specifications are subject to change without notice.
001-01 / 20130516 / e531_vls.fm
(48/52)
I
N
D
U
C
T
O
R
S
VLS-E series
VLS4012E Type
4.0±0.1
SHAPE & DIMENSIONS
(1.3)
(1.4)
(1.3)
1.2max.
4.0±0.1
Dimensions in mm
4.0
RECOMMENDED LAND PATTERN
1.3
1.4
1.3
Dimensions in mm
• All specifications are subject to change without notice.
001-01 / 20130516 / e531_vls.fm
(49/52)
I
N
D
U
C
T
O
R
S
VLS-E series VLS4012E Type
ELECTRICAL CHARACTERISTICS
CHARACTERISTICS SPECIFICATION TABLE
L
(µH)
1.0
1.5
2.2
3.3
4.7
6.8
10
15
22
33
47
Tolerance
±30%
±30%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
Measuring
frequency
(MHz)
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
DC resistance
( )
max.
typ.
0.060
0.050
0.072
0.060
0.081
0.067
0.102
0.085
0.118
0.098
0.156
0.130
0.228
0.190
0.372
0.310
0.468
0.390
0.804
0.670
1.020
0.850
Rated current(A)
max.
typ.
Idc1
Idc1
2.50
2.80
2.10
2.30
1.70
1.90
1.40
1.60
1.20
1.40
1.00
1.20
0.89
0.99
0.70
0.78
0.63
0.70
0.47
0.53
0.41
0.46
Part No.
Idc2
2.65
2.45
2.20
2.00
1.90
1.60
1.33
1.05
0.95
0.70
0.61
VLS4012ET-1R0N
VLS4012ET-1R5N
VLS4012ET-2R2M
VLS4012ET-3R3M
VLS4012ET-4R7M
VLS4012ET-6R8M
VLS4012ET-100M
VLS4012ET-150M
VLS4012ET-220M
VLS4012ET-330M
VLS4012ET-470M
Rated current: smaller value of either Idc1 or Idc2.
Idc1: When based on the inductance change rate (30% below the nominal value)
Idc2: When based on the temperature increase (Temperature increase of 40°C by self heating)
○ Measurement equipment
Measurement item
Product No.
L
4194A
DC resistance
VP-2941A
Rated current Idc1
4285A+42841A+42842C
＊ Equivalent measurement equipment may be used.
Manufacturer
Agilent Technologies
Panasonic
Agilent Technologies
• All specifications are subject to change without notice.
001-01 / 20130516 / e531_vls.fm
(50/52)
I
N
D
U
C
T
O
R
S
VLS-E series VLS4012E Type
ELECTRICAL CHARACTERISTICS
L FREQUENCY CHARACTERISTICS GRAPH
1000
100
470M
Inductance(µH)
330M
220M
150M
10
100M
6R8M
4R7M
3R3M
2R2M
1R5N
1
1R0N
0.1
0.01
0.1
1
10
100
1000
Frequency(MHz)
○ Measurement equipment
Product No.
Manufacturer
4294A
Agilent Technologies
＊ Equivalent measurement equipment may be used.
• All specifications are subject to change without notice.
001-01 / 20130516 / e531_vls.fm
(51/52)
I
N
D
U
C
T
O
R
S
VLS-E series VLS4012E Type
ELECTRICAL CHARACTERISTICS
INDUCTANCE VS. DC BIAS CHARACTERISTICS GRAPH
100
470M
330M
220M
150M
10
100M
Inductance(µH)
6R8M
4R7M
3R3M
2R2M
1R5N
1
0.1
1R0N
0
0.5
1
1.5
2
2.5
3
3.5
DC current(A)
○ Measurement equipment
Product No.
Manufacturer
4285A+42841A+42842C
Agilent Technologies
＊ Equivalent measurement equipment may be used.
• All specifications are subject to change without notice.
001-01 / 20130516 / e531_vls.fm
(52/52)
I
N
D
U
C
T
O
R
S
VLS-E series
Packaging Style
REEL DIMENSIONS
B
Type
VLS201610E
VLS201612E
VLS2010E
VLS2012E
VLS252008E
VLS252010E
VLS252012E
VLS252015E
VLS3010E
VLS3012E
VLS3015E
VLS4012E
C
2.0±0.5
(1.0)
ø13.0±0.5
A
ø180
ø180
ø180
ø180
ø180
ø180
ø180
ø180
ø180
ø180
ø180
ø180
B
13
13
13
13
13
13
13
13
13
13
13
17
C
ø60
ø60
ø60
ø60
ø60
ø60
ø60
ø60
ø60
ø60
ø60
ø60
D
9
9
9
9
9
9
9
9
9
9
9
13
E
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
E
D
* These values are typical values.
ø21.0±0.8
A
Dimensions in mm
P2
P0
P1
K
B0
W
F
øD0
E
TAPE DIMENSIONS
t
A0
Type
VLS201610E
VLS201612E
VLS2010E
VLS2012E
VLS252008E
VLS252010E
VLS252012E
VLS252015E
VLS3010E
VLS3012E
VLS3015E
VLS4012E
A0
1.8
1.8
2.2
2.2
2.15
2.15
2.15
2.15
3.2
3.2
3.2
4.25
B0
2.2
2.2
2.2
2.2
2.7
2.7
2.7
2.7
3.2
3.2
3.2
4.25
øD0
1.5+0.10/-0
1.5+0.10/-0
1.5+0.10/-0
1.5+0.10/-0
1.5+0.10/-0
1.5+0.10/-0
1.5+0.10/-0
1.5+0.10/-0
1.5+0.10/-0
1.5+0.10/-0
1.5+0.10/-0
1.5+0.10/-0
E
1.75±0.1
1.75±0.1
1.75±0.1
1.75±0.1
1.75±0.1
1.75±0.1
1.75±0.1
1.75±0.1
1.75±0.1
1.75±0.1
1.75±0.1
1.75±0.1
F
3.5±0.05
3.5±0.05
3.5±0.05
3.5±0.05
3.5±0.05
3.5±0.05
3.5±0.05
3.5±0.05
3.5±0.05
3.5±0.05
3.5±0.05
5.5±0.05
Dimensions in mm
P0
4.0±0.1
4.0±0.1
4.0±0.1
4.0±0.1
4.0±0.1
4.0±0.1
4.0±0.1
4.0±0.1
4.0±0.1
4.0±0.1
4.0±0.1
4.0±0.1
P1
4.0±0.1
4.0±0.1
4.0±0.1
4.0±0.1
4.0±0.1
4.0±0.1
4.0±0.1
4.0±0.1
4.0±0.1
4.0±0.1
4.0±0.1
8.0±0.1
P2
2.00±0.05
2.00±0.05
2.00±0.05
2.00±0.05
2.00±0.05
2.00±0.05
2.00±0.05
2.00±0.05
2.00±0.05
2.00±0.05
2.00±0.05
2.00±0.05
W
8.0±0.2
8.0±0.2
8.0±0.2
8.0±0.2
8.0±0.2
8.0±0.2
8.0±0.2
8.0±0.2
8.0±0.2
8.0±0.2
8.0±0.2
12.0±0.2
K
1.1
1.3
1.1
1.35
0.95
1.15
1.35
1.65
1.15
1.35
1.65
1.35
t
0.25
0.25
0.25
0.25
0.25
0.3
0.3
0.3
0.25
0.25
0.25
0.3
• All specifications are subject to change without notice.
001-01 / 20130516 / e531_vls.fm
