WTM905525-12F2-12V-G 数据手册
W i r e l e s s P o w e r Tr a n s f e r
May 2019
Wireless Power Transfer
Tx Coil Modules (WPC Compliant)
WTM905525-12F2-12V-G
Wireless Power Transfer
Wireless Power Transfer
Tx Coil Modules (WPC Compliant)
RoHS
REACH
SVHC-Free
Cl
Br
Pb
Halogen
Free
Lead
Free
WTM905525-12F2-12V-G
FEATURES

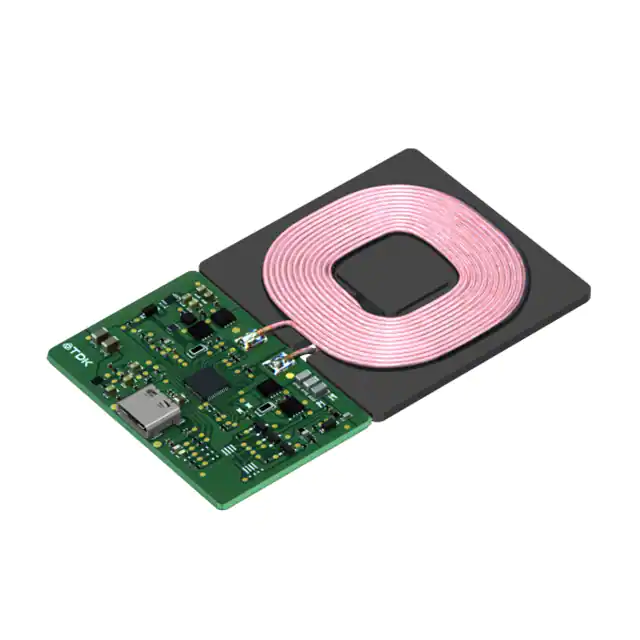

Turnkey solution for wireless power transfer, including transmitter coil and circuit
12V input wireless power consortium (WPC1.2.2) type MP-A2 transmitter system
Fully WPC compliant, including foreign object detection (FOD) method
APPLICATIONS
Information and communication products
Industrial, medical and other products
SHAPE & DIMENSIONS
Top view
Side view
Bottom view
4.34max.
87.00±2.0
52.00±1.0
52.00±1.0
5.00typ.
Dimensions in mm
AIR COIL SPECIFICATIONS
Number of Coils
1
Wire Diameters
ø0.08mm x 105 strands
Coil Turns
12 / layer, total 1 layer
Description of icons: See the following for more details. https://product.tdk.com/info/en/environment/icon.html
• All specifications are subject to change without notice.
• Before using these products, be sure to request the delivery specifications.
20190515 / wlc_tx_wtm905525-12f2-12v-g_en.fm
Wireless Power Transfer
WTM905525-12F2-12V-G
MAXIMUM RATINGS
Operating Temperature / Humidity
–30 to +70°C / 10 to 95% R.H.
Storage Temperature / Humidity
–40 to +85°C / 10 to 95% R.H.
ELECTRICAL CHARACTERISTICS
Tx Module
Input Voltage
(V)
12
WPC Compliant
Yes
Transfer Power
(W)
15
Efficiency
(%) typ.
75
Test Environment :
Test Instrument : Chroma 8000 system or EQUIVALENT
Ambient Temperature : 20 to 30 °C
Relative Humidity : 25 to 75 %R.H.
Rx module : WRM483265-10F5-12V-G
Tx & Rx coil distance : 3.4mm
IC INFORMATIONS
IC
P9242-R
Manufacturer
IDT (Integrated Device Technology)
* Please contact us for more detail.
PACKAGING : BOX TYPE
Dimensions (mm)
Tray
Small carton
Outer carton
365x275x10
388x281.5x40
404x298x108
Quantity (pcs)
Qty per tray
Qty per small carton
Qty per outer carton
10
30
60
OTHERS
Weight
(g) typ.
50
• All specifications are subject to change without notice.
• Before using these products, be sure to request the delivery specifications.
20190515 / wlc_tx_wtm905525-12f2-12v-g_en.fm
Wireless Power Transfer
WTM905525-12F2-12V-G
BLOCK DIAGRAMS
EEPROM
Control logic
SCL
(External control)
OSC
Half Bridge
In1
Transmitter coil
SDA
ISNS
Half Bridge
5V DC
LDO5/18/33
PWM generator
12V
Adapter
In2
GND
PIN LAYOUTS
Pin Configuration
(1) Type C connector input (CN1)
• All specifications are subject to change without notice.
• Before using these products, be sure to request the delivery specifications.
20190515 / wlc_tx_wtm905525-12f2-12v-g_en.fm
Wireless Power Transfer
Reminders
Do not use or store in locations where there are conditions such as gas corrosion (salt, acid, alkali, etc.).
Self heating (temperature increase) occurs when the power is turned ON, so the tolerance should be sufficient for the set thermal
design.
Fully caution, if metal piece contacted with top of coil surface then it could be danger of generated heat.
Do not use for a purpose outside of the contents regulated in the delivery specifications.
The products listed on this catalog are intended for use in general electronic equipment (AV equipment, telecommunications equipment, home appliances, amusement equipment, computer equipment, personal equipment, office equipment, measurement equipment, industrial robots) under a normal operation and use condition.
The products are not designed or warranted to meet the requirements of the applications listed below, whose performance and/or quality require a more stringent level of safety or reliability, or whose failure, malfunction or trouble could cause serious damage to society,
person or property.
If you intend to use the products in the applications listed below or if you have special requirements exceeding the range or conditions
set forth in the each catalog, please contact us.
(1) Aerospace/aviation equipment
(2) Transportation equipment (cars, electric trains, ships, etc.)
(3) Medical equipment
(4) Power-generation control equipment
(5) Atomic energy-related equipment
(6) Seabed equipment
(7) Transportation control equipment
(8) Public information-processing equipment
(9) Military equipment
(10) Electric heating apparatus, burning equipment
(11) Disaster prevention/crime prevention equipment
(12) Safety equipment
(13) Other applications that are not considered general-purpose
applications
• All specifications are subject to change without notice.
• Before using these products, be sure to request the delivery specifications.
20190515 / wlc_tx_wtm905525-12f2-12v-g_en.fm
