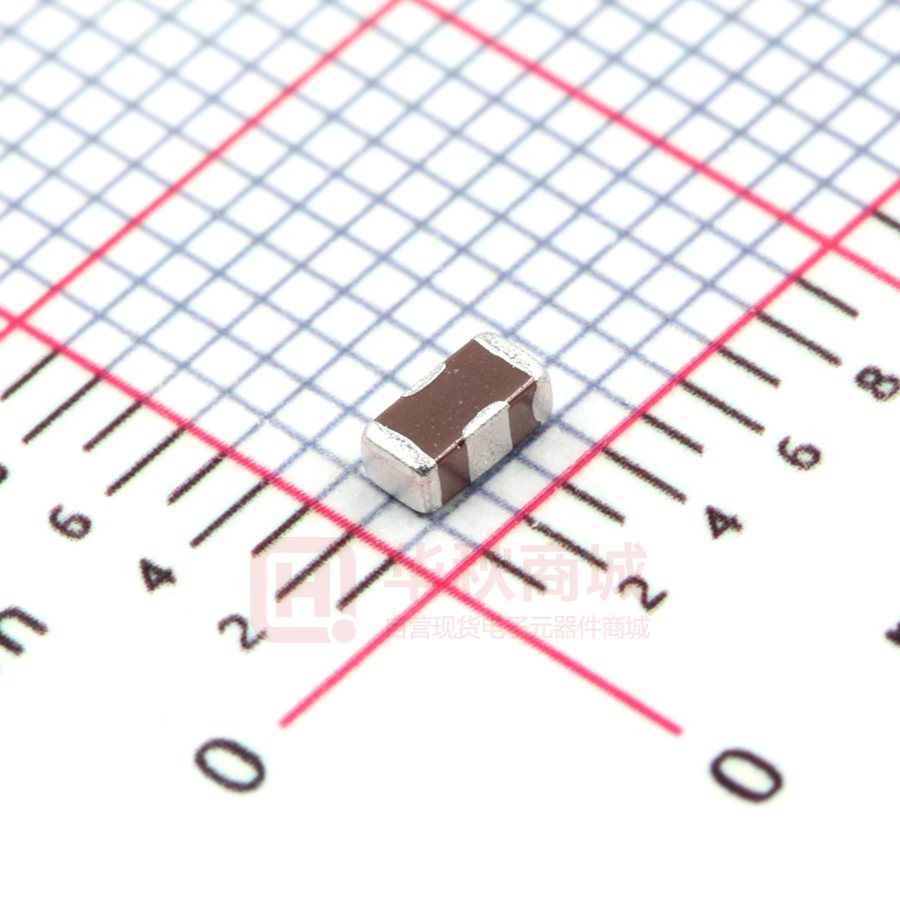

YFF31HC2A105MT000N

E M C C o m p o n e n t s July 2015 3-terminal Filters For Large-current Power Line YFF-HC Series YFF31HC 3216 [1206 inch]* Feed through filter * Dimensions Code JIS[EIA] (1/4) E M C C o m p o n e n t s 3-terminal Filters Conformity to RoHS Directive Lead-free Compatible For Large-current Power Line Overview of YFF-HC Series FEATURES Small and high-performance EMC components. Good attenuation characteristic in a wide band range. For large current (6A to 10A) applications. APPLICATIONS Power line of AV (LCD, PDP) products and information products (PC, server). Countermeasures against power-supply noise of communications infrastructure PA. PART NUMBER IDENTIFICATION YFF Series name 31 L×W dimensions Code mm 31 3.2×1.6 HC 2A 105 Product internal code Large HC current Rated voltage Code V Capacitance Code pF 1H 50 103 10,000 2A 100 153 15,000 1,000,000 (1.0μF) 105 M T Tolerance Taping M ±20％ 0 TDK internal code N Reel size Code mm 0 ø178 9 ø330 Internal electrode Ni PACKAGING STYLE AND SPECIFICATIONS Type YFF31HC Package quantity (piece/reel) ø178 ø330 2,000 10,000 Single weight (g) 0.0342 Conformity to RoHS Directive: This means that, in conformity with EU Directive 2002/95/EC, lead, cadmium, mercury, hexavalent chromium, and specific bromine-based flame retardants, PBB and PBDE, have not been used, except for exempted applications. Please contact our Sales office when your application is considered the following: The device’s failure or malfunction may directly endanger human life (e.g. application for automobile/aircraft/medical/nuclear power devices, etc.) Please be sure to request delivery specifications that provide further details on the features and specifications of the products for proper and safe use. Please note that the contents may change without any prior notice due to reasons such as upgrading. 20150713 / eemc_3tf_yff-hc.fm (2/4) E M C C o m p o n e n t s Overview of YFF-HC Series RECOMMENDED SOLDERING CONDITION REFLOW SOLDERING Soldering Preheating Slow cooling (Natural cooling) 150˚C max. Temperature(˚C) 260˚C max. 0 60 seconds or more 10s max. HAND SOLDERING PRECAUTIONS FOR USE Before soldering, be sure to preheat components. The 'T preheating temperature must be 150°C max. with attention paid to thermal shock. Natural cooling of components in the air is recommended. On the other hand, when dipping them in a solvent for purposes, such as cleaning, make sure that the temperature difference ('T) is 100° When performing hand soldering for circuit modification, apply the soldering iron to the copper foil area of the printed circuit board for 3 seconds or less. The temperature of the iron tip should not exceed 300°C. Use a wrist band to discharge static electricity in your body through the grounding wire. When incorporating the printed circuit board on which this product is mounted into a frame, etc., do not apply stress to the product through local bending of the board by tightening of screws, etc. 0 150˚C max. Temperature(˚C) 300 Preheating Make as short as possilble (within three seconds) Please be sure to request delivery specifications that provide further details on the features and specifications of the products for proper and safe use. Please note that the contents may change without any prior notice due to reasons such as upgrading. 20150713 / eemc_3tf_yff-hc.fm (3/4) E M C C o m p o n e n t s YFF-HC Series YFF31HC Type(Feed Through Filter) SHAPES AND DIMENSIONS RECOMMENDED LAND PATTERN 1.20± 0.30 0.40± 0.30 1.40 0.80 0.90 1 IN/OUT 1.30 1.60±0.20 GND 4 3 OUT/IN Land pattern+Solder resist Land pattern 2 GND 3.20± 0.20 2.50 Dimensions in mm 1.30±0.20 1.20 * Make sure to connect the GND terminal of this product and the GND of the mounting circuit board by using through holes so that the distance between them is the shortest. ELECTRICAL CHARACTERISTICS CHARACTERISTICS SPECIFICATION TABLE Insertion loss 40dB bandwidth (MHz) 0.8 to 2000 7 to 2000 40 to 2000 60 to 2000 Rated voltage Edc (V) 100 100 50 100 Rated current Idc (A) 6 10 10 10 Operating temperature range (°C) –55 to 125 –55 to 125 –55 to 125 –55 to 125 Storage temperature range(After mount) (°C) –55 to 125 –55 to 125 –55 to 125 –55 to 125 Part No. YFF31HC2A105MT00 □ N YFF31HC2A104MT00 □ N YFF31HC1H153MT00 □ N YFF31HC2A103MT00 □ N The part numbers are TDK’s standard specification products. : Please specify reel size code, 0 (ø178) or 9 (ø330) ELECTRICAL CHARACTERISTICS GRAPH (EXAMPLE) INSERTION LOSS vs. FREQUENCY CHARACTERISTICS 0 12 2A103 20 1H153 10 30 Rated Current(A) Insertion Loss(dB) 10 40 50 60 2A104 2A105 70 80 90 0.1 RATED CURRENT vs. TEMPERATURE CHARACTERISTICS (DERATING) 2A103, 2A104, 1H153 8 6 2A105 4 2 1 10 100 Frequency (MHz) 1000 10000 0 –55 –35 –15 5 25 45 65 85 Ambient temperature(°C) 105 125 Please be sure to request delivery specifications that provide further details on the features and specifications of the products for proper and safe use. Please note that the contents may change without any prior notice due to reasons such as upgrading. 20150713 / eemc_3tf_yff-hc.fm (4/4) E M C C o m p o n e n t s YFF-HC Series Packing Style REEL DIMENSIONS C B E r W D t A Dimensions in mm Reel ø178 ø330 A ø178±2.0 ø382 max.(ø330 nom.) B ø60±2.0 ø50 min. C ø13±0.5 ø13±0.5 D ø21±0.8 ø21±0.8 E 2.0±0.5 2.0±0.5 W 9.0±0.3 10.0±1.5 t 2.0±0.5 2.0±0.5 r 1.0 1.0 TAPE DIMENSIONS Plastic tape J Square punch hole for component mounting D B C E Round sprocket holes t A H G F Q K Dimensions in mm Type YFF31HC A B C D 1.90 typ. 3.50 typ. 8.00±0.30 3.5±0.05 E F G 1.75±0.10 4.00±0.10 2.0±0.05 H J 4.00±0.10 ø1.5+0.10/–0 K t Q 2.50 max. 0.30 max. ø0.50 min. Please be sure to request delivery specifications that provide further details on the features and specifications of the products for proper and safe use. Please note that the contents may change without any prior notice due to reasons such as upgrading. 20150713 / eemc_3tf_yff-hc.fm
