10-00343

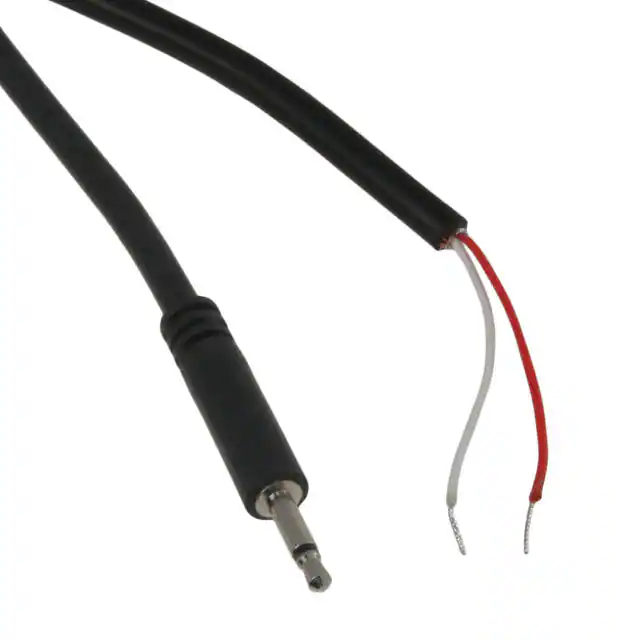

part number: 10-00343 description: Cable, 1830 mm, 2.5 mm 50-00032 slim mono plug to stripped tinned, 28 AWG, shielded Specifications: plug description (1) plug overmold (2) cable description (4) cable outer diameter cable color cable length twist tie (3) date: unit: page: rev: 05/24/10 mm 1 of 2 A mono plug, 2.5 mm, 23 mm long, brass, nickel plated, molding style, P/N 50-00032 inner: 30P, PVC, black; outer: 60P, PVC, black AWG #28 (0.12 x 7), 2 conductor (red, white), shield wire, aluminum-mylar shield, 1F, PVC jacket, black Ø3.8 mm black 1830 ± 50 black, 89 ± 3 Notes: Function test: no open, no reversed polarity, no short circuit, no INT RoHS compliant Mechanical drawing: Wire diagram: Initial Date tolerance X: ±0.5 mm .X: ±0.3 mm .XX: ±0.05 mm applicable unless otherwise indicated in specification or on drawings 29033 Avenue Sherman Ste 203 Valencia, CA 91355 ph 661.702.0035 fx 661.702.0038 www.tensility.com part number: 10-00343 description: Cable, 1830 mm, 2.5 mm 50-00032 slim mono plug to stripped tinned, 28 AWG, shielded date: unit: page: rev: 05/24/10 mm 2 of 2 A Revision notes: Rev A Date May 24, 2010 Description initial release Specification Approval Spec sign-off verifies that you have reviewed the entire specification, tested a sample of the product, and confirm that it meets your requirements. This specification reflects the part as it will be ordered. Orders will not be processed until the specification pages have been initialed and the approval page has been signed. This specification is confidential and is not to be transmitted without prior approval from Tensility. Signature Name Title Date 29033 Avenue Sherman Ste 203 Valencia, CA 91355 ph 661.702.0035 fx 661.702.0038 www.tensility.com
