PART NUMBER
DESCRIPTION
QTY.
1
50-00430
Connector, USB AB mini receptacle
1
2
50-00428
Connector, USB A micro male
1
COMPONENT NOTES
3
30-00088
Wire, 4C, 1PR + 2C, 28 AWG, UL2725, 30V, 80C, 3.6 mm, shielded, VW-1, PVC, 79A, USB 2.0
1
4
24-00059
Overmold, jack, USB mini AB
1
PVC, black
5
24-00064
Overmold, plug, USB micro A
1
PVC, black
100 ±15
5.5 ±0.50
1
3.6
1
5
1
4
5
5
3
2
Drain wire
Drain wire
Wiring diagram
50-00430
1
2
3
5
Shell
Notes:
Cables individually tied and bundled in groups of 10
Functionally equivalent components may be substituted
Revision:
A
Date:
8/26/2011
Description:
Initial release
A1
1/28/2014
Corrected shield type
A2
10/24/2018
Removed label
5
Wire Color
Prepared:
AW
Verified:
GL
Digitally signed by AW
Date: 2018.11.01
10:56:33 -07'00'
Digitally signed by GL
Date: 2018.11.02
08:41:32 -07'00'
Dimensions are in
millimeters.
Tolerances:
0.5 mm
X:
X.X:
0.3 mm
X.XX: 0.05 mm
4
50-00428
Red
White
Green
Black
Drain & Shield
1
2
3
4&5
Shell
Notes:
RoHS compliant
Function test: no open, no short circuit, no
intermittent
tel
fax
Description:

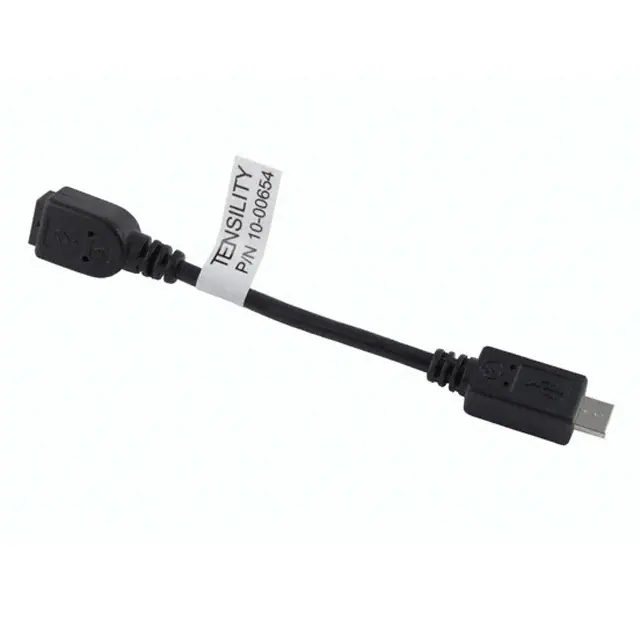

Cable, 100 mm, USB mini A receptacle to USB micro
A male, 28 AWG, 30-00088 wire
3
2
1.541.323.3228
1.541.323.4202
Size:
Part number:
A
10-00654
Scale:
800
web
877.670.7118
tensility.com
Sheet 1 of 1
1:1
1
To see a custom version of this cable assembly, call Tensility at 541-323-3228 or email engineering@tensility.com
