10-00665

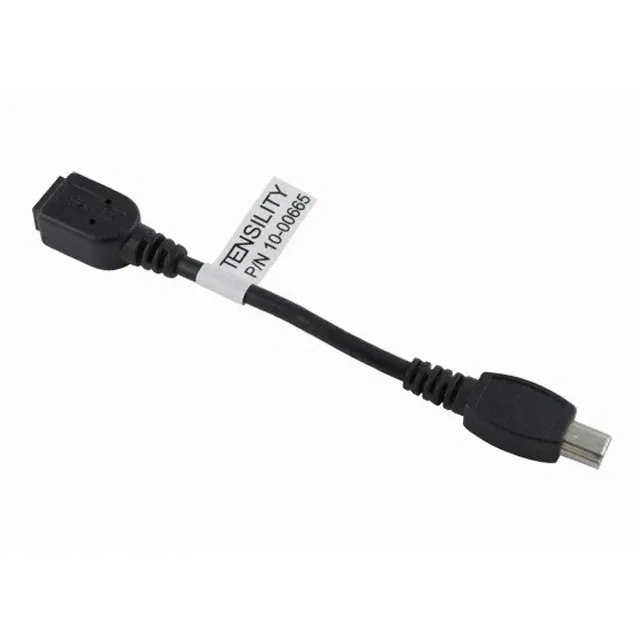

PART NUMBER 50-00431 2 50-00432 3 4 5 DESCRIPTION QTY. 1 Connector, USB B mini receptacle COMPONENT NOTES Connector, USB A mini male 1 30-00088 Wire, 4C, 1PR + 2C, 28 AWG, UL2725, 30V, 80C, 3.6 mm, shielded, VW-1, PVC, 79A, USB 2.0 1 24-00060 Overmold, jack, USB mini B 1 PVC, black 24-00022 Overmold, plug, USB mini A 1 PVC, black 100 ±15 1 3.6 1 5 Drain wire 1 4 3 5 2 5 Drain wire Wiring diagram 50-00431 1 2 3 5 Shell Notes: Cables individually tied and bundled in groups of 10 Functionally equivalent components may be substituted Revision: A Date: 8/25/2011 Description: Prepared: Initial release AW A1 1/29/2014 Correct shield type A2 11/1/2018 Removed label 5 Wire Color Verified: GL Red White Green Black Drain & Shield 1 2 3 4&5 Shell Notes: Digitally signed by AW Date: 2018.11.01 11:46:58 -07'00' Digitally signed by GL Date: 2018.11.02 09:16:19 -07'00' Dimensions are in millimeters. Tolerances: 0.5 mm X: 0.3 mm X.X: X.XX: 0.05 mm 4 50-00432 RoHS compliant Function test: no open, no short circuit, no intermittent tel fax Description: Cable, 100 mm, USB mini B 5P receptacle to USB mini A male, 28 AWG, 30-00088 wire 3 Size: Part number: A 10-00665 Scale: 2 1.541.323.3228 1.541.323.4202 800 web 877.670.7118 tensility.com 1:1 Sheet 1 of 1 1 To see a custom version of this cable assembly, call Tensility at 541-323-3228 or email engineering@tensility.com ITEM NO. 1
