10-03216

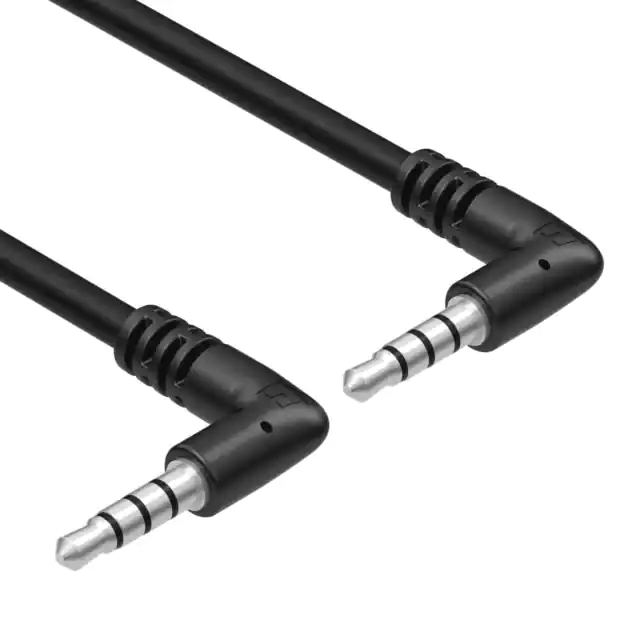

PART NUMBER 50-00397 DESCRIPTION Connector, 4C audio plug, 3.5xL20.7 mm, brass, nickel plated, molding style QTY. 2 2 30-00179 Wire, 3C BC, 28 AWG, 300V, 80C, 3.8 mm, foil + shield, PVC 1 3 24-00085 Overmold 2 NOTES PVC, black +150 6000 0 3 1 14 2 0.5 ±0.50 3.8 3 14 1 6.5 6. 5 3. 5 3.5 50-00397 Notes: Functionally equivalent components may be substituted Revision: A Date: 2/21/2019 14.5 ±0.50 21 ±1 0.5 ±0.50 14.5 ±0.50 21 ±1 Description: Initial release A Prepared: AW Verified: GL Digitally signed by AW Date: 2019.02.21 11:21:11 -08'00' Digitally signed by GL Date: 2019.03.07 10:36:28 -08'00' Dimensions are in millimeters. Tolerances: X: 0.5 mm 0.3 mm X.X: X.XX: 0.05 mm 5 4 B A B C D C D Wiring Diagram wire color 50-00397 red white green shield A B C D Notes: RoHS compliant Function test: no open, no short circuit, no intermittent tel fax Description: Cable, 6000 mm, 3.5 mm 4C 90° 50-00397 audio plug to same, 28 AWG, 30-00179 wire 3 Size: Part number: A 10-03216 Scale: 2 1.541.323.3228 1.541.323.4202 800 web 877.670.7118 tensility.com Sheet 1 of 1 1:1 1 To see a custom version of this cable assembly, call Tensility at 541-323-3228 or email engineering@tensility.com ITEM NO. 1
