Ratings
Voltage: 300 V
Temperature: 80 °C
Flammability: VW-1
Conductor
Conductor count: 3
Gauge: 28 AWG, 0.089 mm2
Material: bare copper strands
Strand size: Ø 0.127 mm x 7
Insulator
Material: SR-PVC
Color: red, white, green
Diameter: 0.85 ±0.1 mm
Nominal thickness: 0.24 mm
Shield
Type: spiral & shield
Material: bare copper strands & aluminum mylar
Stranding: Ø0.127 x 50
Coverage: 100% minimum
Outer jacket
Material: PVC
Color: black
Diameter: 3.8 ±0.3 mm
Nominal thickness: 0.83 mm
3.8 ±0.30
0.85 ±0.10
Tests
Spark test: 3.0 kV
Max resistance at 20 °C: 240 ohm/km
Insulation tensile strength: 2.11 kgf/mm2
Jacket tensile strength: 1.05 kgf/mm2
After aging at 113 ±2 °C for 7 days:
Minimum tensile strength 70 % original
Minimum elongation 65 % original
Heat shock: 121 ±1 °C /1 hour, no observed
degradation
Deformation: 121 ±1 °C /1 hour, ≤ 50 %
Cold bend: -10 ±1 °C /1 hour, no observed cracking
Dielectric test: 2000 Vac for 1 minute without
breakdown
7
0.12
0. 1
Date:
Description:
A
3/28/2012
initial release
A1
2/25/2015
updated spec format
A2
10/19/2015
updated tolerances
A3
8/10/2016
corrected jacket color
A4
8/22/2016
modified insulator material
5
Shield
Foil
Use: Internal wiring or external interconnection of
electronic equipment.
Revision:
Jacket
Prepared:
GL
2016.09.06 13:54:55 -07'00'
Verified:
4
x 50
x
27
Insulator
Conductor
7
Notes:
RoHS and REACH compliant
AG
2016.09.06 15:17:06 -07'00'
Function test: no open, no short circuit, no
intermittent
Dimensions are in
millimeters.
Tolerances:
X:
0.5 mm
X.X:
0.3 mm
X.XX: 0.05 mm
Description:

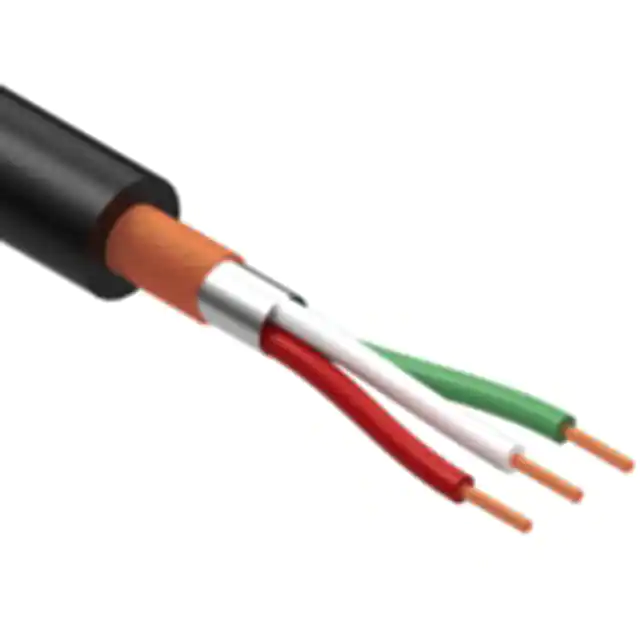

Wire, 3C BC, 28 AWG, 300V, 80C, 3.8 mm, foil +
shield, PVC
3
tel
fax
Size:
Part number:
A
30-00179
Scale:
2
1.541.323.3228
1.541.323.4202
800
web
877.670.7118
tensility.com
1:1
Sheet 1 of 1
