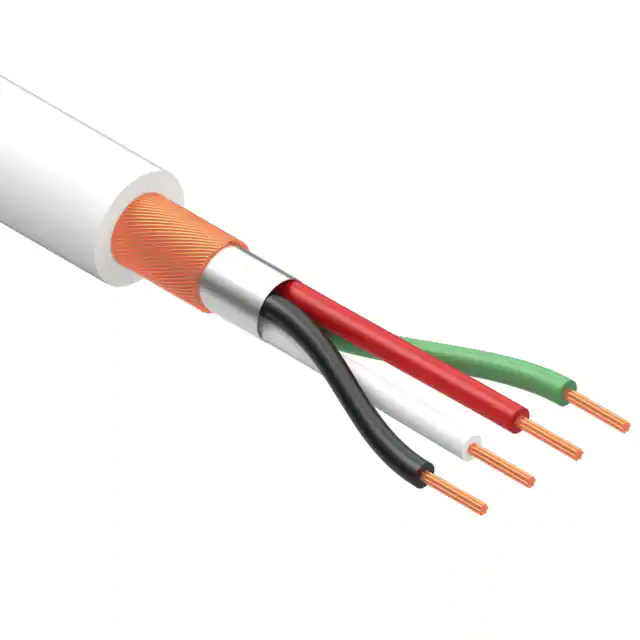

30-00181

厂商：
TENSILITY
封装：
-
描述：
30-00181

数据手册：

下载30-00181.pdf

立即购买

详情介绍
数据手册
价格&库存

30-00181 数据手册

Ratings Voltage: 300 V Temperature: 80° C Flammability: VW-1 Conductor Conductor count: 4 Gauge: 28 AWG, 0.089 mm2 Material: bare copper strands Strand size: Ø 0.127 mm x 7 Insulator Material: SR-PVC Color: red, white, green, black Diameter: 0.85 ±0.1 mm Nominal thickness: 0.24 mm Shield Type: spiral & foil Material: bare copper strands & aluminum mylar Stranding: Ø0.127 x 55 Coverage: 100% minimum Outer jacket Material: PVC Color: white Diameter: 3.8 ±0.3 mm Nominal thickness: 0.73 mm 3.8 ±0.30 Tests Spark test: 3.0 kV Max resistance at 20 °C: 240 ohm/km Insulation tensile strength: 2.11 kgf/mm2 Jacket tensile strength: 1.05 kgf/mm2 After aging at 113 ±2 °C for 7 days: Minimum tensile strength 70 % original Minimum elongation 65 % original Heat shock: 121 ±1 °C /1 hour, no observed degradation Deformation: 121 ±1 °C /1 hour, ≤ 50 % Cold bend: -10 ±1 °C /1 hour, no observed cracking Dielectric test: 2000 Vac for 1 minute without breakdown Jacket Date: Description: A 4/28/2012 Initial release A1 3/20/2014 Updated shielding and resistance rating A2 7/22/2015 Updated spec format A3 10/15/2015 Updated tolerances A4 9/2/2016 Modified insulator material 5 0.85 ±0.10 Foil 7x 0.12 Use: Internal wiring or external interconnection of electronic equipment. Revision: Shield 2 0. 1 Prepared: GL 2016.09.06 14:04:50 -07'00' Verified: Dimensions are in millimeters. Tolerances: X: 0.5 mm X.X: 0.3 mm X.XX: 0.05 mm AG 2016.09.06 15:22:47 -07'00' 4 55 7x Insulator 7 Conductor Notes: RoHS and REACH compliant Function test: no open, no short circuit, no intermittent tel fax Description: Wire, 4C BC, 28 AWG, 300V, 80°C, 3.8 mm, foil + shield, PVC, white 3 Size: Part number: A 30-00181 Scale: 2 1.541.323.3228 1.541.323.4202 800 web 877.670.7118 tensility.com Sheet 1 of 1 1:1 1

下载 PDF

30-00181

物料型号为A30-00181。

器件简介包括电压等级300V、温度等级80°C、可燃性等级VW-1、导体数4根、导体规格28 AWG、0.089 mm²、材料为裸铜丝、绝缘体材料为SR-PVC、颜色有红、白、绿、黑、直径0.85±0.1mm、标称厚度0.24mm。

屏蔽层类型为螺旋和箔片、材料为裸铜丝和铝箔、绞合Ø0.127×55、覆盖率至少100%。

外护套材料为PVC、颜色为白色、直径3.8±0.3mm、标称厚度0.73mm。

参数特性包括火花测试3.0kV、20°C时最大电阻240欧姆/公里、绝缘体抗拉强度2.11 kgf/mm²、护套抗拉强度1.05 kgf/mm²。

老化测试在113±2°C下持续7天，抗拉强度和延伸率分别不低于原始值的70%和65%。

热冲击测试在121±1°C下持续1小时，无明显退化；变形测试在121±1°C下持续1小时，变化率不超过50%；冷弯测试在-10±1°C下持续1小时，无裂纹。

耐电压测试2000Vac持续1分钟无击穿。

功能详解为内部布线或电子设备的外部互连。

应用信息为内部布线或电子设备的外部互连。
