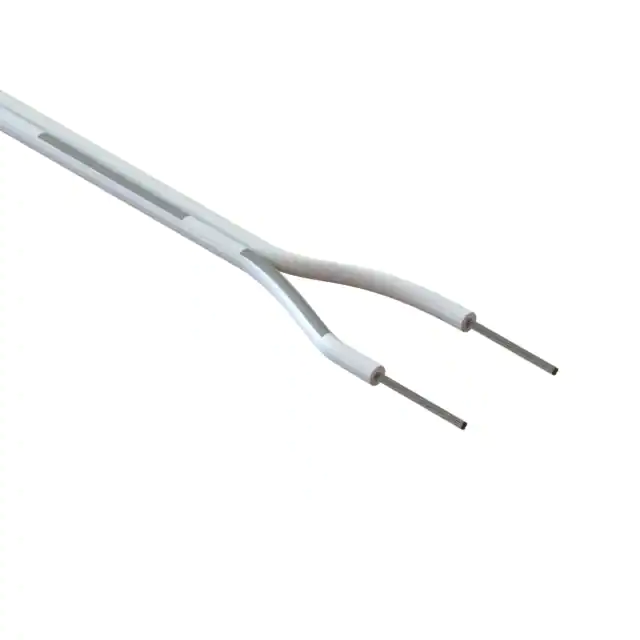

30-00402

Conductor Conductor count: 2 Gauge: 22 AWG 0.34 mm2 Material: tinned copper strands 0.16 x 17 Strand size: Resistance at 20 °C: 59.4 Ω /km max Outer jacket Material: PVC Color: white Diameter: 3.6 ±0.20 mm Nominal thickness: 0.49 mm Resistance at 20 °C: 10 MΩ /km min Wire marking: E339579 UL AWM STYLE 2468 22 AWG 80°C 300V VW-1 - - - cUL AWM I A 80°C 300V FT1 TENSILITY Tests Insulation tensile strength: 2.11 kgf/mm2 Jacket tensile strength: 1.05 kgf/mm2 After aging at 113 ±2 °C for 7 days: Minimum tensile strength 70 % original Minimum elongation 65 % original Heat shock: 121 ±1 °C /1 hour, no observed degradation Deformation: 121 ±1 °C /1 hour, ≤ 50 % Cold bend: -10 ±2 °C /1 hour, no observed cracking Stripe Marking 1.8 ±0.10 Jacket Conductor 0. 1 3.6 ±0.20 Revision: Date: Description: A 06/13/2014 Initial release A1 01/08/2016 Corrected tolerances A2 09/06/2018 Increased operating temperature range 5 Prepared: AW Verified: PS Digitally signed by AW Date: 2018.09.06 13:31:56 -07'00' Digitally signed by PS Date: 2018.09.06 14:10:44 -07'00' Dimensions are in millimeters. Tolerances: 0.5 mm X: X.X: 0.3 mm X.XX: 0.05 mm 4 6x 17 Notes: RoHS and REACH compliant Function test: no open, no short circuit, no intermittent tel fax Description: Wire, 2C TS, 22 AWG, UL2468, 300V, 80C, 3.6 mm, VW-1, PVC, white 3 2 1.541.323.3228 1.541.323.4202 Size: Part number: A 30-00402 Scale: 800 web 877.670.7118 tensility.com 12:1 Sheet 1 of 1 1 To see a custom version of this cable assembly, call Tensility at 541-323-3228 or email engineering@tensility.com Ratings Voltage: 300 V Temperature: -25 ~ 80 °C Flammability: VW-1
