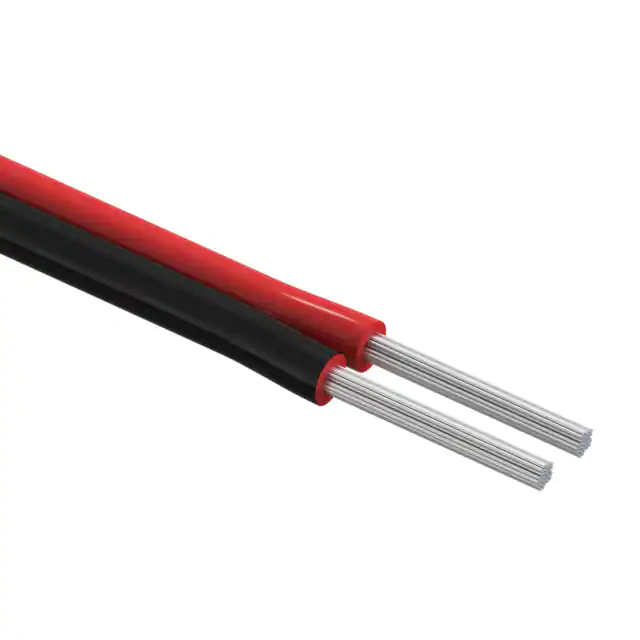

30-00415

Conductor Conductor count: 2 Gauge: 18 AWG 0.82 mm2 Material: tinned copper strands Strand size: 0.16x41 Resistance at 20 °C: 23.2 Ω /km max Insulation Material: PVC Color: red, black Diameter: 4.4 ±0.20 mm Nominal thickness: 0.50 mm Resistance at 20 °C: 10 MΩ /km min Wire marking: E339579 UL AWM STYLE 2468 18 AWG 80°C 300V VW-1 - - - cUL AWM I A 80°C 300V FT1 TENSILITY Tests Insulation tensile strength: 2.11 kgf/mm2 Jacket tensile strength: 1.05 kgf/mm2 After aging at 113 ±2 °C for 7 days: Minimum tensile strength 70 % original Minimum elongation 65 % original Heat shock: 121 ±1 °C /1 hour, no observed degradation Deformation: 121 ±1 °C /1 hour, ≤ 50 % Cold bend: -10 ±2 °C /1 hour, no observed cracking 4.4 ±0.20 Marking Insulation 2.2 ±0.15 Conductor 0.16x Black Red Revision: A Date: 7/22/2014 A1 10/13/2014 A2 A3 Description: Notes: Prepared: AG Initial release Digitally signed by AG Date: 2018.09.07 12:23:09 -07'00' Verified: Changed jacket construction PS 9/8/2015 Updated jacket tolerance 9/7/2018 Increased operating temperature range Dimensions are in millimeters. Tolerances: X: 0.5 mm X.X: 0.3 mm X.XX: 0.05 mm 5 4 41 Digitally signed by PS Date: 2018.09.07 12:29:42 -07'00' RoHS and REACH compliant Function test: no open, no short circuit, no intermittent tel fax Description: Wire, 2C TS, 18 AWG, UL2468, 300V, 80°C, 4.4 mm, VW-1, PVC, red and black 3 2 1.541.323.3228 1.541.323.4202 Size: Part number: A 30-00415 Scale: 800 web 877.670.7118 tensility.com Sheet 1 of 1 10:1 1 To see a custom version of this cable assembly, call Tensility at 541-323-3228 or email engineering@tensility.com Ratings Voltage: 300 V Temperature: -25 ~ 80 °C Flammability: VW-1
