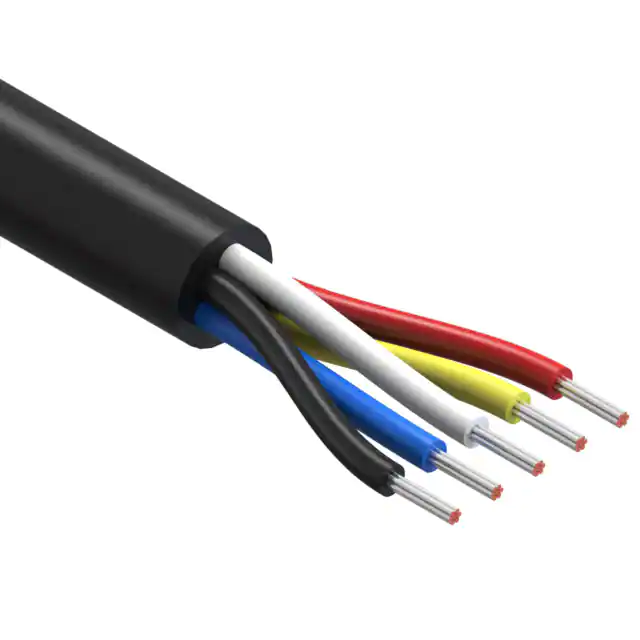

30-00501

Conductor Conductor count: 5 Gauge: 24 AWG 0.22 mm2 Material: tinned copper strands Strand size: 0.16 x 11 Resistance at 20 °C: 94.2 Ω /km max Insulator Material: PVC Color: black, white, red, yellow, blue Diameter: 1.2 ±0.10 mm Nominal thickness: 0.28 mm Resistance at 20 °C: 10 MΩ /km min Filler Material: cotton rope 4.9 ±0.20 1.2 ±0.10 Outer jacket Material: PVC Color: black Diameter: 4.9 ±0.20 mm Nominal thickness: 0.83 mm Wire marking: E339579 UL AWM STYLE 2464 24 AWG 80°C 300V VW-1 - - - cUL AWM I/II A 80°C 300V FT1 TENSILITY Tests Insulation tensile strength: 2.11 kgf/mm2 Jacket tensile strength: 1.05 kgf/mm2 After aging at 113 ±2 °C for 7 days: Minimum tensile strength 70 % original Minimum elongation 65 % original Heat shock: 121 ±1 °C /1 hour, no observed degradation Deformation: 121 ±1 °C /1 hour, ≤ 50 % Cold bend: -10 ±2 °C /1 hour, no observed cracking Conductor 0. 16 x 11 Jacket Filler Revision: Date: Description: A 10/14/2015 Initial release A1 1/22/2016 Updated stranding A2 09/06/2018 Increased operating temperature range 5 Prepared: RS Verified: CH Digitally signed by RS Date: 2018.09.06 14:02:53 -07'00' Digitally signed by CH Date: 2018.09.06 15:15:55 -07'00' Dimensions are in millimeters. Tolerances: 0.5 mm X: X.X: 0.3 mm X.XX: 0.05 mm 4 Insulator Notes: RoHS and REACH compliant Function test: no open, no short circuit, no intermittent tel fax Description: Wire, 5C TS, 24 AWG, UL2464, 300V, 80C, 4.9 mm, VW-1, PVC 3 2 1.541.323.3228 1.541.323.4202 Size: Part number: A 30-00501 Scale: 800 web 877.670.7118 tensility.com 1:2 Sheet 1 of 1 1 To see a custom version of this cable assembly, call Tensility at 541-323-3228 or email engineering@tensility.com Ratings Voltage: 300 V Temperature: -25 ~ 80 °C Flammability: VW-1
