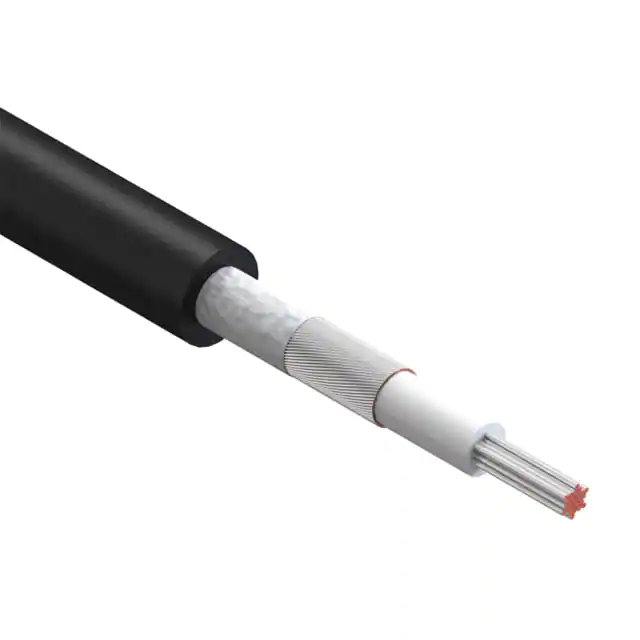

30-00561

Ratings Voltage: 300 V Operating temperature: -20° to 80 °C Conductor Gauge: 20 AWG, 0.52 mm2 Material: tinned copper strands Strand size: Ø 0.178 mm Strand count: 21 Max resistance at 20 °C: 36.7 Ω/km Cotton paper Insulator Material: PVC Color: white Outer diameter: 1.8 ±0.10 mm Min resistance at 20 °C: 10 MΩ/km Shield Jacket Insulation Shield Type: spiral Material: tinned copper strands Strand size: Ø 0.12 mm Strand count: 45 ±2 3.8 ±0.15 Outer jacket Material: TPU, 80 °C Type: extruded, non-integral Color: black Diameter: 3.8 ±0.15 mm Conductor 1.8 ±0.10 Wire marking: E339579 AWM STYLE 10846 80°C 300V VW-1 - - - C AWM I/II A 80°C 300V FT1 TENSILITY Tests Voltage test: 300 V Spark test: 3.0 kV Tensile strength: 1.05 kgf/mm2 After aging at 113 ±2 °C for 7 days: Minimum tensile strength 70 % original Minimum elongation 65 % original Heat shock: 121 ±1 °C /1 hour, no observed degradation Deformation: 121 ±1 °C /1 hour, ≤ 50 % Cold bend: -10 ±1 °C /1 hour, no observed cracking Flammability: FT1, VW-1 Dielectric test: 1500 V ac for 1 minute without breakdown REVISION DATE 0. 1 PREPARED: DESCRIPTION A 9/2/2015 Initial release A1 9/14/2015 Upgraded fire rating to VW-1/ FT1 3/10/2016 Updated operating temperature range A2 0.18 GL 2016.03.11 10:19:31 -08'00' VERIFIED: PS Digitally signed by PS DN: cn=PS, o, ou, email=QA004@tensility.com, c=US Date: 2016.03.11 11:30:17 -08'00' DIMENSIONS ARE IN MILLIMETERS TOLERANCES: 0.5 mm X: X.X: 0.3 mm X.XX: 0.05 mm 5 4 2x x 21 45 NOTES RoHS and REACH compliant Function test: no open, no short circuit, no intermittent 20802 Sockeye Place #130 Bend, OR 97701 USA tel 541.323.3228 fax 541.323.4202 800 877.670.7118 www.tensility.com Drawing in third angle projected DESCRIPTION: Wire, 1C TS, 20 AWG, UL10846, 300V, 80C, 3.8 mm, shielded, VW-1, TPU SIZE PART NUMBER A 30-00561 SCALE: 12:1 3 2 SHEET 1 OF 1 1
