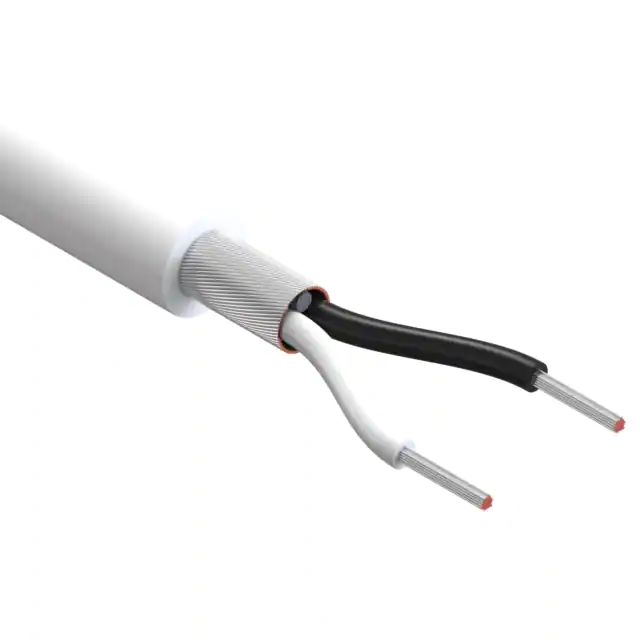

30-00657

Ratings Temperature: -40 ~ 70 °C Voltage: 150 V Conductor Gauge: 26 AWG, 0.13 mm2 Material: tinned copper strands 0.08 x 26 Stranding: Resistance at 20 °C: 150 Ω/km max Insulator Material: HDPE Color: black, white Outer diameter: 0.9 ±0.10 mm Nominal thickness: 0.20 mm Resistance at 20 °C: 1000 MΩ/km min Shield Type: spiral Material: tinned copper strands Strand size: 0.08 mm Coverage: 90 % minimum Outer jacket Material: TPU, 70 °C Color: cool gray 1C Nominal thickness: 0.50 mm Diameter: 3.1 ±0.15 mm 3.1 ±0.15 Jacket Filler Material: aramid fiber Shield 0.9 ±0.10 Tests Tensile strength: 35.7 kgf Dielectric test: 1500 V dc for 1 minute without breakdown Bend test at 200 g, ±90 °, 30 cycles /min: 15,000 cycle minimum Insulator REVISION DATE A 9/30/2015 DESCRIPTION PREPARED: Initial release AG A1 1/13/2016 Updated notes, corrected tolerances A2 1/17/2019 Changed filler material to generic name Digitally signed by AG Date: 2019.01.18 11:31:01 -08'00' Digitally signed by GL Date: 2019.01.18 12:27:27 -08'00' DIMENSIONS ARE IN MILLIMETERS TOLERANCES: X: 0.5 mm 0.3 mm X.X: X.XX: 0.05 mm 5 4 6 Conductor Filler NOTES RoHS and REACH compliant Jacket meets ISO 10993 Biological Compatibility VERIFIED: GL x2 0. 08 8 0 .0 Phthalate and halogen free Function test: no open, no short, no intermittent DESCRIPTION: Wire, 2C TS, 26 AWG, 150V, 70C, 3.1 mm, spiral shield, TPU, white 20802 Sockeye Place #130 Bend, OR 97701 USA tel 541.323.3228 fax 541.323.4202 800 877.670.7118 www.tensility.com SIZE PART NUMBER A 30-00657 SCALE: 1:1 3 2 SHEET 1 OF 1 1
