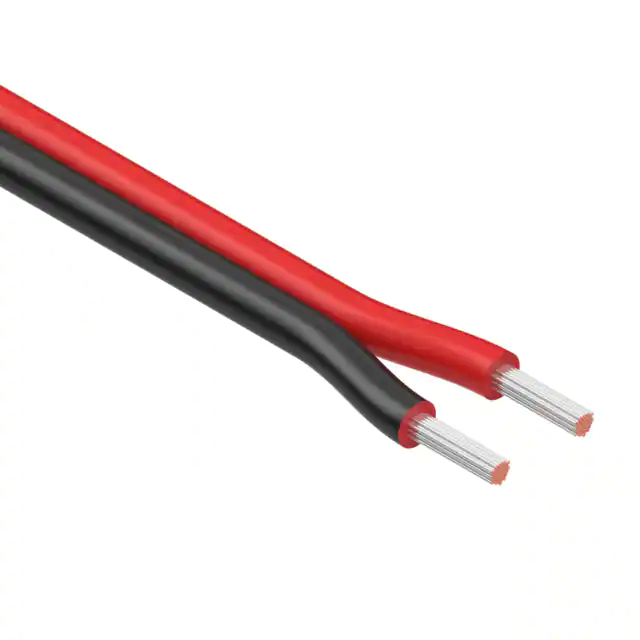

30-00795

Ratings Voltage: 300 V Temperature: -10 to 105 °C Flammability: VW-1 Conductor Conductor count: 2 Gauge: 18 AWG 0.82 mm2 Material: tinned copper strands Strand size: Ø 0.18 mm x 34 Outer jacket Material: PVC/38P Color: red and black Diameter: 4.4 ±0.30 mm (2.2 ±0.15 x 2) Nominal thickness: 0.38 mm Electrical requirements Voltage test: 300 V Spark test: 3.0 kV Conductor maximum resistance at 20 °C: 23.2 ohms/km Jacket resistance at 20 °C: 10 Mohms/km Dielectric test: 2000 Vac for 1 minute with no breakdown Mechanical requirements Jacket tensile strength: 1.05 kgf/mm2 After aging at 136±2 °C for 7 days: Minimum tensile strength 70% of original Minimum elongation 65% of original Environmental requirements Heat shock: 136±1 °C/1 hour, no observed degradation Deformation: 136±1 °C/1 hour, ≤50% Cold bend: -10±2 °C/1 hour, no observed cracking Marking Red Jacket Wire marking: E339579 UL AWM STYLE 2651 18 AWG 105°C 300V VW-1 - - - cUL AWM I A 105°C 300V FT1 TENSILITY 2.2 ±0.15 Conductor 0.18 x 34 4.4 ±0.30 Revision: Date: Description: A 9/2/2016 Initial release A1 12/6/2016 Prepared: GL Digitally signed by GL Date: 2017.10.05 15:29:00 -07'00' Verified: Changed to UL 2651 AG Digitally signed by AG Date: 2017.10.20 10:56:23 -07'00' Dimensions are in millimeters. Tolerances: 0.5 mm X: X.X: 0.3 mm X.XX: 0.05 mm 5 4 Notes: RoHS and REACH compliant Function test: no open, no short circuit, no intermittent tel fax Description: Wire, 2C TS, 18 AWG, UL2651, 300V, 105C, 4.4 mm, VW-1, PVC, red and black 3 2 1.541.323.3228 1.541.323.4202 Size: Part number: A 30-00795 Scale: 800 web 877.670.7118 tensility.com Sheet 1 of 1 15:1 1
