50-00602

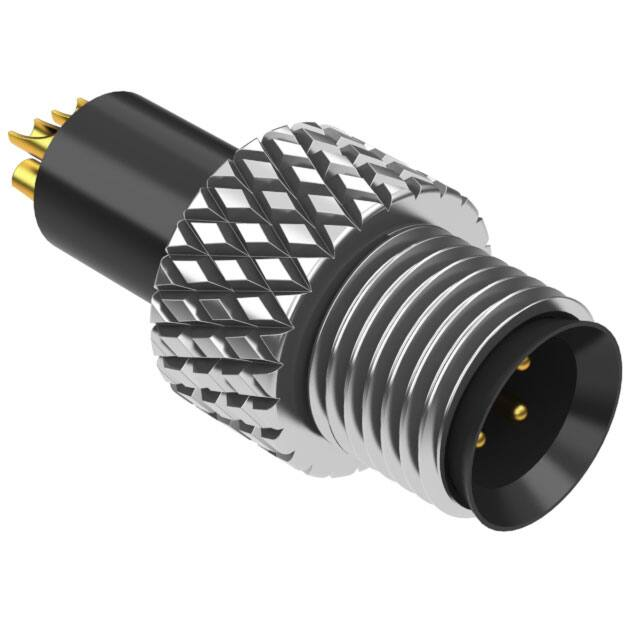

Ratings Voltage: 60 V Current: 1 A Waterproof: IP 67 Operating Temperature Range -40 to 85 °C Materials 1 Insulator: Nylon 66 + 30% glass fiber, black 2 Pin: brass, gold-flashing 3 Shell: brass, nickel plated Electrical Requirements Dielectric strength: 1 min @ 500 Vac Insulation resistance: 10⁸ Ω min Contact resistance: 10 mΩ or less Mechanical Requirements Insertion force: 0.82 kgf max Withdrawal force: 0.62 kgf max Life cycle: 500 mating cycles 1 2 3 Environmental Requirements Cold test: -25 °C for 2 hours without deformation Heat test: 85 °C for 16 hours while maintaining minimum 10⁸ Ω min insulation resistance 14.8 ±0.30 Assembly info Wire guage: 26 AWG max (Ø0.55 mm) 7.9 3.6 4 3 A 1.8 0. 6 3.8 1 A 0.5 M5 x 0.5 5 6.5 2 SECTION A-A Revision: A A1 Date: 8/7/2018 12/10/2018 Description: Prepared: Initial release AG Updated notes Verified: AW Notes: Digitally signed by AG Date: 2018.12.10 15:28:31 -08'00' RoHS compliant Digitally signed by AW Date: 2018.12.12 09:22:21 -08'00' Function test: no open, no short circuit, no intermittent Dimensions are in millimeters. Tolerances: X: 0.3 mm X.X: 0.1 mm X.XX: 0.05 mm 5 4 tel fax Description: Connector, 4 pin M5 plug, 5xL14.8mm, gold plated, molding style, solder cup, IP67 3 2 1.541.323.3228 1.541.323.4202 Size: Part number: A 50-00602 Scale: 800 web 877.670.7118 tensility.com 3:1 Sheet 1 of 1 1
