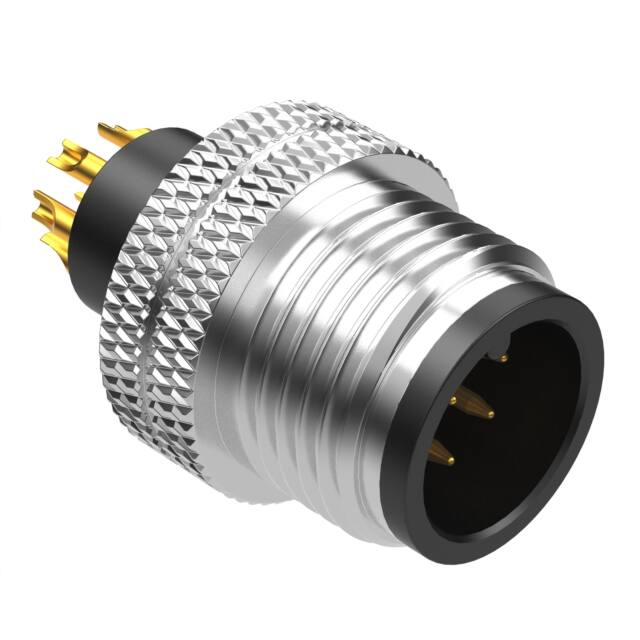

Style M12 Plug 8 pin A-coding Ratings Voltage: 30 V Current: 2 A Operating Temperature Range -40 ~ 105 °C 22 ±1.50 Materials 1 Insulator: Polyamide 66 (PA66), UL94 HB, black 2 Pin: C3604 brass, gold plated 3 Shell: C3604 brass, nickel plated 19 ±0.50 1.2 2 3 Mechanical Requirements Life cycle: 500 mating cycles minimum 4 Environmental Requirements Salt spray test: 35 °C, relative humidity 90-95%, 5% NaCl mist for 48 hrs. Wash parts after test. Maintain mechanical requirements and a contact resistance of less than 10 mΩ. Waterproof: IP67 5 1 8 5 8 ±0.30 Electrical Requirements Dielectric strength: 1 min @ 500 Vac Insulation resistance: 100 MΩ @ 500 Vdc Contact resistance: 10 mΩ or less 8.6 ±0.30 7 6 Front View Not to Scale 14.5 3 Assembly Info Wire gauge: 24 AWG max 1 2 0.8 M12 x 1.0 Revision: A Date: 8/4/2020 Description: Initial release Prepared: JC Verified: AG Notes: Digitally signed by JC Date: 2020.10.23 12:28:07 -07'00' RoHS compliant Digitally signed by AG Date: 2020.10.23 12:56:45 -07'00' Function test: no open, no short circuit, no intermittent Dimensions are in millimeters. Tolerances: 0.3 mm X: 0.1 mm X.X: X.XX: 0.05 mm 5 4 tel fax 1.541.323.3228 1.541.323.4202 800 web 877.670.7118 tensility.com Size: Part number: Description: Connector, 8 pin M12 A-code plug, 12xL22mm, gold 50-00962 A plated, molding style, solder cup, IP67 Scale: 2:1 3 2 Sheet 1 of 1 1
