50-00965

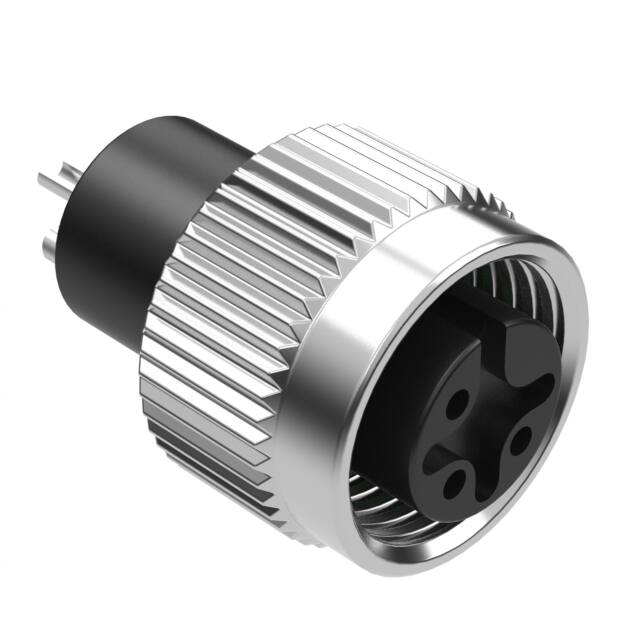

Style M12 Socket 3 pin A-coding Ratings Voltage: 250 V Current: 4 A 1 Operating Temperature Range -40 ~ 85 °C 4 Materials 1 Insulator: TPU, black 2 Pin: C3604 brass, gold plated 3 Shell: C3604 brass, nickel plated 4 O-ring: Nitrile rubber, green 3 Front View Not to Scale 22 ±1 Electrical Requirements Dielectric strength: 1 min @ 500 Vac Insulation resistance: 100 MΩ @ 500 Vdc Contact resistance: 10 mΩ or less 18.5 ±0.50 A Spin-locking feature Slide shell to unlock/lock 10.9 ±0.50 14.5 10 Mechanical Requirements Life cycle: 500 mating cycles minimum 9 ±0.50 Environmental Requirements Salt spray test: 35 °C, relative humidity 90-95%, 5% NaCl mist for 48 hrs. Wash parts after test. Maintain mechanical requirements and a contact resistance of less than 10 mΩ. Waterproof: IP67 1 Assembly Info Wire gauge: 22 AWG max 3 4 1 2 A 1.541.323.3228 1.541.323.4202 800 web M12 x 1.0 SECTION A-A Revision: A Date: 8/4/2020 Description: Prepared: AW Initial release Notes: Digitally signed by AW Date: 2020.10.12 12:34:51 -07'00' RoHS compliant Digitally signed by AG Date: 2020.10.14 11:51:29 -07'00' Function test: no open, no short circuit, no intermittent Verified: AG Dimensions are in millimeters. Tolerances: X: 0.3 mm X.X: 0.1 mm X.XX: 0.05 mm 5 4 tel fax Description: Connector, 4 pin M12 A-code socket, 12xL22mm, gold plated, molding style, solder cup, IP67 3 2 Size: Part number: A 50-00965 Scale: 877.670.7118 tensility.com 2:1 Sheet 1 of 1 1
