Style
M12 Plug
5 pin
A-coding
Ratings
Voltage: 60 V
Current: 4 A
Operating Temperature Range
-40 ~ 85 °C
22 ±1
Materials
1 Insulator: TPU, black
2 Pin: C3604 brass, gold plated
3 Shell: C3604 brass, nickel plated
19 ±0.50
5
2
Mechanical Requirements
Life cycle: 500 mating cycles minimum
3
Environmental Requirements
Salt spray test: 35 °C, relative humidity 90-95%, 5% NaCl
mist for 48 hrs. Wash parts after test. Maintain mechanical
requirements and a contact resistance of less than 10 mΩ.
Waterproof: IP67
5
8 ±0.30
1.2
Electrical Requirements
Dielectric strength: 1 min @ 500 Vac
Insulation resistance: 100 MΩ @ 500 Vdc
Contact resistance: 10 mΩ or less
8.2 ±0.30
1
4
Front View
Not to Scale
Assembly Info
Wire gauge: 22 AWG max
1
3
14.5
Spin-locking feature
Slide shell to unlock/lock
2
1
M12 x 1.0
Revision:
Date:
Description:
A
8/4/2020
Initial release
Prepared:
AW
Digitally signed by AW
Date: 2020.10.12
13:09:58 -07'00'
Verified:
AG
Digitally signed by AG
Date: 2020.10.14 12:17:42
-07'00'
Dimensions are in
millimeters.
Tolerances:
X:
0.3 mm
0.1 mm
X.X:
X.XX: 0.05 mm
5
4
Notes:
RoHS compliant
Function test: no open, no short circuit, no
intermittent
tel
fax
1.541.323.3228
1.541.323.4202
800
web
877.670.7118
tensility.com
Description:
Size: Part number:

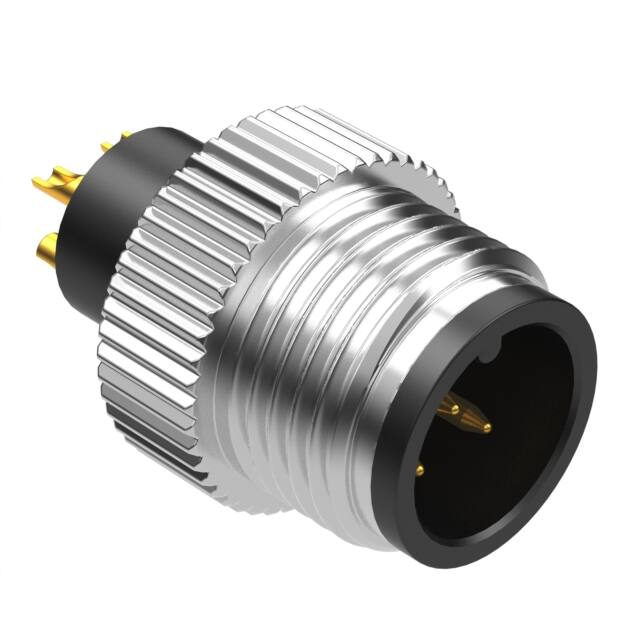

Connector, 5 pin M12 A-code plug, 12xL22mm, gold
50-00974
A
plated, molding style, solder cup, IP67
Scale: 2:1
3
2
Sheet 1 of 1
1
