Style
M12 Socket, shielded
5 pin
A-coding
Ratings
Voltage: 60 V
Current: 4 A
2
1
5
Operating Temperature Range
-40 ~ 105 °C
4
Materials
1 Insulator: Polyamide 66 (PA66), UL94 HB, black
2 Socket: C5191 Phosphor bronze, gold plated
3 Shell: C3604 brass, nickel plated
4 O-ring: Nitrile rubber, green
3
Front View
Not to Scale
22 ±1
18.7 ±0.50
14.5
Electrical Requirements
Dielectric strength: 1 min @ 500 Vac
Insulation resistance: 100 MΩ @ 500 Vdc
Contact resistance: 10 mΩ or less
11 ±0.30
A
9.75 ±0.10
Mechanical Requirements
Life cycle: 500 mating cycles minimum
Environmental Requirements
Salt spray test: 35 °C, relative humidity 90-95%, 5% NaCl
mist for 48 hrs. Wash parts after test. Maintain mechanical
requirements and a contact resistance of less than 10 mΩ.
Waterproof: IP67
1
Assembly Info
Wire gauge: 22 AWG max
A
3
4
1
2
M12 x 1.0
SECTION A-A
Revision:
A
Date:
7/22/2020
Description:
Prepared:
Initial release
JC
Notes:
Digitally signed by JC
Date: 2020.10.23 12:33:12
-07'00'
Verified:
AG
Digitally signed by AG
Date: 2020.10.23 12:59:36
-07'00'
Dimensions are in
millimeters.
Tolerances:
X:
0.3 mm
X.X:
0.1 mm
X.XX: 0.05 mm
5
4
RoHS compliant
Function test: no open, no short circuit, no
intermittent
tel
fax
Description:

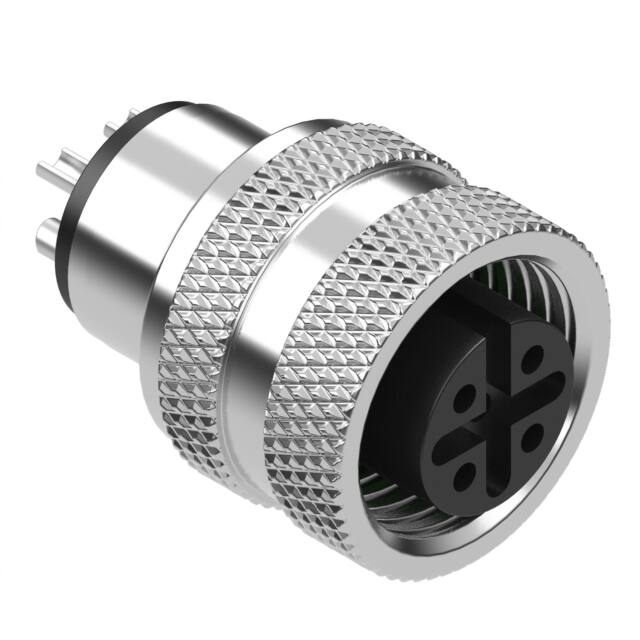

Connector, 5 pin M12 A-code socket, 12xL22mm,
gold plated, molding style, solder cup, IP67,
shielded
3
2
1.541.323.3228
1.541.323.4202
Size:
Part number:
A
50-00981
Scale:
800
web
877.670.7118
tensility.com
2:1
Sheet 1 of 1
1
