50-00982

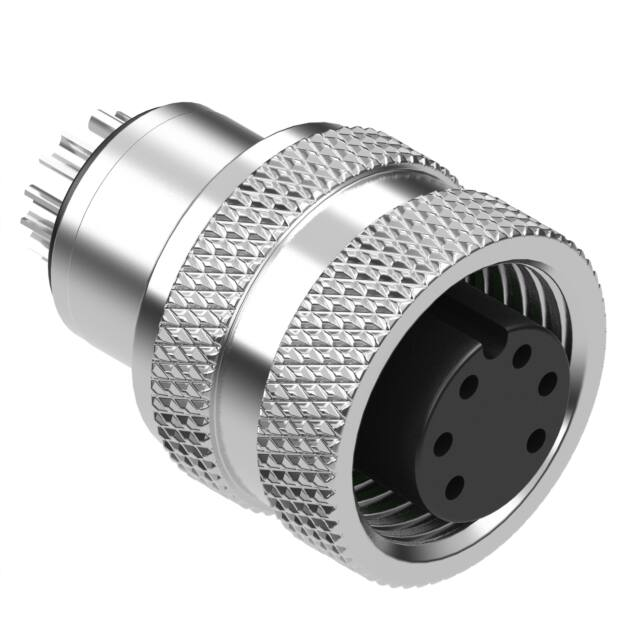

Style M12 Socket, shielded 6 pin A-coding Ratings Voltage: 30 V Current: 2 A 2 1 7 3 6 Operating Temperature Range -40 ~ 105 °C 4 Front View Not to Scale Materials 1 Insulator: Polyamide 66 (PA66), UL94 HB, black 2 Socket: C5191 Phosphor bronze, gold plated 3 Shell: C3604 brass, nickel plated 4 O-ring: Nitrile rubber, green 22 ±1 18.8 14.5 Electrical Requirements Dielectric strength: 1 min @ 500 Vac Insulation resistance: 100 MΩ @ 500 Vdc Contact resistance: 10 mΩ or less A 11 ±0.30 9.75 ±0.10 Mechanical Requirements Life cycle: 500 mating cycles minimum Environmental Requirements Salt spray test: 35 °C, relative humidity 90-95%, 5% NaCl mist for 48 hrs. Wash parts after test. Maintain mechanical requirements and a contact resistance of less than 10 mΩ. Waterproof: IP67 Assembly Info Wire gauge: 24 AWG max 0. 8 A 3 4 1 M12x1.0 2 SECTION A-A Revision: A Date: 7/22/2020 Description: Initial release Notes: Prepared: JC Digitally signed by JC Date: 2020.10.23 12:34:06 -07'00' Verified: AG Digitally signed by AG Date: 2020.10.23 13:00:06 -07'00' Dimensions are in millimeters. Tolerances: X: 0.3 mm X.X: 0.1 mm X.XX: 0.05 mm 5 4 RoHS compliant Function test: no open, no short circuit, no intermittent tel fax Description: Connector, 6 pin M12 A-code socket, 12xL22mm, gold plated, molding style, solder cup, IP67, shielded 3 2 1.541.323.3228 1.541.323.4202 Size: Part number: A 50-00982 Scale: 800 web 877.670.7118 tensility.com 2:1 Sheet 1 of 1 1
