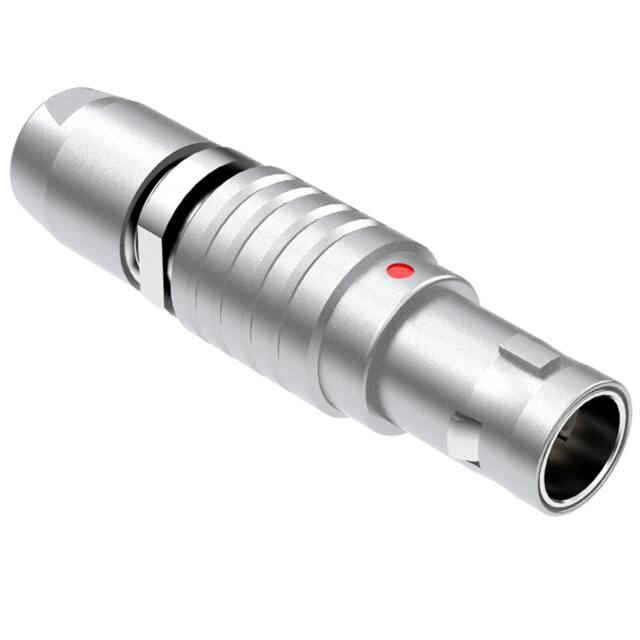

Materials Outer shell: C3604 brass, chrome-plating Latch sleeve: C3604 brass, chrome-plating Split insert carrier 1: C3604 brass, nickel-plating Split insert carrier 2: C3604 brass, nickel-plating Insulator: PPS (Polyphenylene sulfide) UL94 V-0, beige Pin: C38500 brass, 0.2 μm gold-plating, solder cup style Collet: C3604 brass, nickel-plating Collet nut: C3604 brass, chrome-plating outer shell latch sleeve split insert carrier 2 Electrical Requirements Breakdown voltage: 0.85 kV rms (contact to contact), 0.65 kV rms (contact to shell) Dielectric strength: 1 min @ 500 Vac Insulation resistance: 10000 MΩ @ 500 Vdc Contact resistance: 30 mΩ or less, 5000 cycles collet pin insulator split insert carrier 1 Mechanical Requirements Insertion force: 1.02 kgf average Withdrawal force: 0.82 kgf average Latch force: 18.4 kgf average Life cycle: 5000 minimum mating cycles at 300 cycles per hour Shock resistance: 100g, 6 ms Resistance to vibration: 10-2000 Hz, 15g collet nut 36.4 ° 72 A 9.4 Assembly info Wire gauge: 24 AWG max (Ø0.60) Maximum cable jacket Ø: 5.2 mm Maximum collet nut tightening torque: 0.5 Nm 0. 8 10 ±0.10 6.9 Environmental Requirements IP50 rating Mating info Mates with PPL7 series jacks (5 pin, 0° key) 7.9 A 3 A 12/13/2017 Description: Initial Release Prepared: JC Verified: AW 4 4 SECTION A-A Notes: Digitally signed by JC Date: 2020.05.01 16:52:20 -07'00' RoHS compliant Digitally signed by AW Date: 2020.05.05 14:21:13 -07'00' Function test: no open, no short circuit, no intermittent Dimensions are in millimeters. Tolerances: 0.5 mm X: X.X: 0.3 mm X.XX: 0.05 mm 5 Back View 5.2 ±0.20 5 2 Date: M8 x 0.75 0.7 1 Revision: 7 1 0° key alignment tel fax Size: Description: Connector, PPL7, 5C, 0° plug, 7x38 mm, chrome, solder, Ø4.2-5.2 mm wire 3 A Scale: 2 1.541.323.3228 1.541.323.4202 800 web 877.670.7118 tensility.com Part number: 51-00019.52 Sheet 1 of 2 2:1 1 Ratings Voltage: 300 V Current: 3.0 A Operating Temperature Range -55 to 220 °C Testing based on IEC 60512-5-2. Max current curve generated with isolated test article under controlled environmental conditions, and does not take into account external factors such as housings,mating cables, or othercircuitry. Operating current curve (derated by 20% of maximum values) accounts for external factors, and manufacturing variation. Revision: A Date: 12/13/2017 Description: Initial Release Prepared: JC Verified: AW Notes: Digitally signed by JC Date: 2020.05.01 16:51:56 -07'00' RoHS compliant Digitally signed by AW Date: 2020.05.05 14:21:25 -07'00' Function test: no open, no short circuit, no intermittent Dimensions are in millimeters. Tolerances: 0.5 mm X: X.X: 0.3 mm X.XX: 0.05 mm 5 4 tel fax Size: Description: Connector, PPL7, 5C, 0° plug, 7x38 mm, chrome, solder, Ø4.2-5.2 mm wire 3 A Scale: 2 1.541.323.3228 1.541.323.4202 800 web 877.670.7118 tensility.com Part number: 51-00019.52 Sheet 2 of 2 2:1 1
