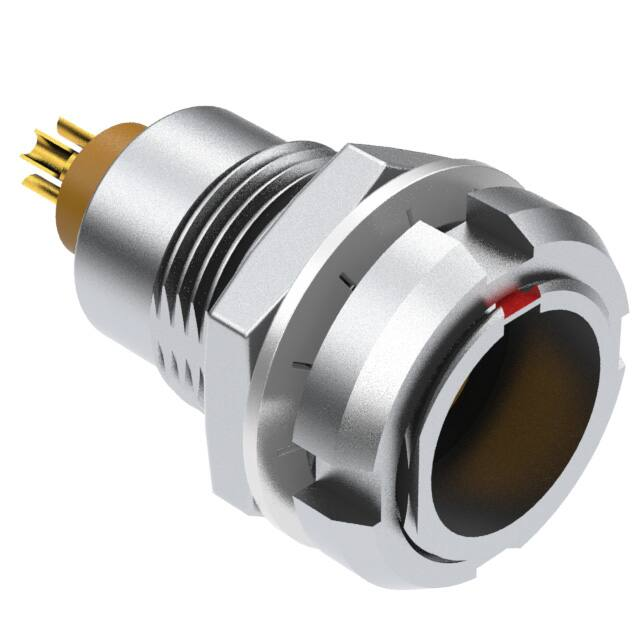

51-00021

Materials Outer shell: C3604 brass, chrome-plating Front nut: C3604 brass, chrome-plating Insulator: PPS (Polyphenylene sulfide) UL94 V-0, beige Pin: C38500 brass, 0.2 μm gold-plated, solder cup style Washer p/n 56-00006: cold rolled steel, nickel-plating Nut p/n 56-00007: C3604 brass, nickel-plating Front nut Shell Insulator Electrical Requirements Breakdown voltage: 0.85 kV rms (contact to contact), 0.70 kV rms (contact to shell) Dielectric strength: 1 min @ 500 Vac Insulation resistance: 10000 MΩ @ 500 Vdc Contact resistance: 30 mΩ or less, 5000 cycles Pin Mechanical Requirements Insertion force: 1.02 kgf average Withdrawal force: 0.82 kgf average Latch force: 18.4 kgf average Life cycle: 5000 minimum mating cycles at 300 cycles per hour Shock resistance: 100g, 6 ms Resistance to vibration: 10-2000 Hz, 15g lock washer hex nut Environmental Requirements IP50 rating 2.54 1.9 2 0. 8 12 .25 Assembly info Wire gauge: 24 AWG max (Ø0.60 mm) 20 ±1 11 10 0.8 8.1 0° key alignment Installation Details Panel thickness: 5.5 mm max Panel cutout Ø: 8.8 - 11.75 mm Connector layout: 8.1 7.9 11 8.8 Mating info Mates with PPL7 series plug (5 pin, 0° key) 1 5 2 8. 8 4 Revision: Date: Description: A 12/13/2017 Initial Release Prepared: JC Verified: AW Digitally signed by JC Date: 2020.05.19 09:25:02 -07'00' Digitally signed by AW Date: 2020.05.19 11:32:32 -07'00' Dimensions are in millimeters. Tolerances: X: 0.5 mm X.X: 0.3 mm X.XX: 0.05 mm 5 4 Back View 3 Notes: RoHS compliant Function test: no open, no short circuit, no intermittent tel fax Description: Connector, PPL7, 5C, 0° panel socket, front-back mount, 7x20 mm, chrome, solder 3 Size: Part number: A 51-00021 Scale: 2 1.541.323.3228 1.541.323.4202 800 web 877.670.7118 tensility.com Sheet 1 of 2 2:1 1 Ratings Voltage: 300 V Current: 3.0 A Operating Temperature Range -55 to 220 °C Testing based on IEC 60512-5-2. Max current curve generated with isolated test article under controlled environmental conditions, and does not take into account external factors such as housings,mating cables, or othercircuitry. Operating current curve (derated by 20% of maximum values) accounts for external factors, and manufacturing variation. Revision: A Date: 12/13/2017 Description: Initial Release Prepared: JC Verified: AW Digitally signed by JC Date: 2020.05.19 09:24:41 -07'00' Digitally signed by AW Date: 2020.05.19 11:32:49 -07'00' Dimensions are in millimeters. Tolerances: X: 0.5 mm X.X: 0.3 mm X.XX: 0.05 mm 5 4 Notes: RoHS compliant Function test: no open, no short circuit, no intermittent tel fax Description: Connector, PPL7, 5C, 0° panel socket, front-back mount, 7x20 mm, chrome, solder 3 Size: Part number: A 51-00021 Scale: 2 1.541.323.3228 1.541.323.4202 800 web 877.670.7118 tensility.com Sheet 2 of 2 2:1 1
