Materials
Outer shell: C3604 brass, chrome-plating
Latch sleeve: C3604 brass, chrome-plating
Split insert carrier 1: C3604 brass, nickel-plating
Split insert carrier 2: C3604 brass, nickel-plating
Insulator: PPS (Polyphenylene sulfide) UL94 V-0, beige
Pin: C38500 brass, 0.2 μm gold-plating, solder cup style
Collet: C3604 brass, nickel-plating
Collet nut: C3604 brass, chrome-plating
outer shell
latch sleeve
split insert carrier 2
Electrical Requirements
Breakdown voltage: 0.85 kV rms (contact to contact), 0.65 kV rms
(contact to shell)
Dielectric strength: 1 min @ 500 Vac
Insulation resistance: 10,000 MΩ @ 500 Vdc
Contact resistance: 30 mΩ or less, 5000 cycles
collet
pin
insulator
split insert carrier 1
Mechanical Requirements
Insertion force: 1.02 kgf average
Withdrawal force: 0.82 kgf average
Latch force: 18.4 kgf average
Life cycle: 5000 minimum mating cycles at 300 cycles per hour
Shock resistance: 100g, 6 ms
Resistance to vibration: 10-2000 Hz, 15g
collet nut
35.29
10 ±0.1
Environmental Requirements
IP50 rating
A
°
60
9.4
Assembly info
Wire gauge: 28 AWG max (Ø0.35)
Maximum cable jacket Ø: 5.2 mm
Maximum collet nut tightening torque: 0.5 Nm
5
6.9
0.4
A
7.9
Mating info
Mates with PPL7 series jacks (7 pin, 0° key)
0° key alignment
7
M8 x 0.75
6
0.5
1
7
5
3
4
SECTION A-A
Back View
Revision:
Date:
Description:
A
12/27/2017
Initial Release
Prepared:
JC
Verified:
AW
Digitally signed by JC
Date: 2020.05.04
12:48:56 -07'00'
Digitally signed by AW
Date: 2020.05.05
15:36:46 -07'00'
Dimensions are in
millimeters.
Tolerances:
X:
0.5 mm
0.3 mm
X.X:
X.XX: 0.05 mm
5
4
5.2 ±0.20
2
Notes:
RoHS compliant
Function test: no open, no short circuit, no
intermittent
tel
fax
Description:

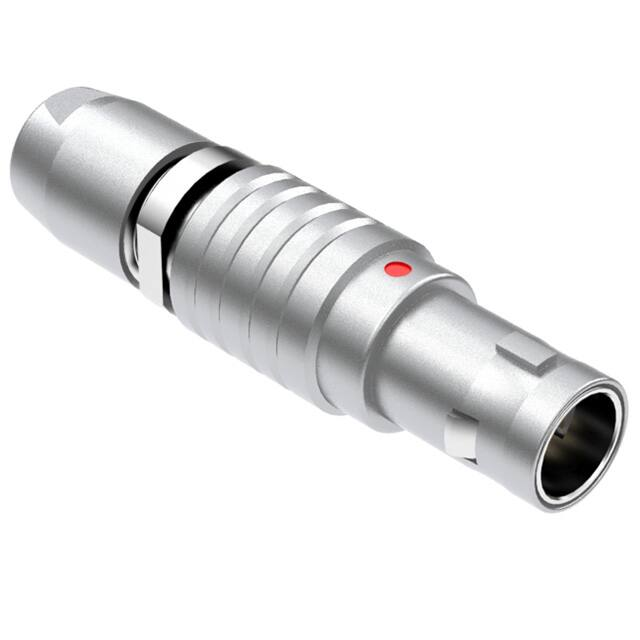

Connector, PPL7, 7C, 0° plug, 7x38 mm, chrome,
solder, Ø4.2-5.2 mm wire
3
Size:
A
Scale:
2
1.541.323.3228
1.541.323.4202
800
web
877.670.7118
tensility.com
Part number:
51-00025.52
2:1
Sheet 1 of 2
1
Ratings
Voltage: 300 V
Current: 2.0 A
Operating Temperature Range
-55 to 220 °C
Testing based on IEC 60512-5-2. Max current curve generated with isolated test article under controlled environmental conditions,
and does not take into account external factors such as housings,mating cables, or othercircuitry. Operating current curve (derated
by 20% of maximum values) accounts for external factors, and manufacturing variation.
Revision:
Date:
Description:
A
12/27/2017
Initial Release
Prepared:
JC
Verified:
AW
Digitally signed by JC
Date: 2020.05.04
12:48:36 -07'00'
Digitally signed by AW
Date: 2020.05.05
15:37:02 -07'00'
Dimensions are in
millimeters.
Tolerances:
0.5 mm
X:
X.X:
0.3 mm
X.XX: 0.05 mm
5
4
Notes:
RoHS compliant
Function test: no open, no short circuit, no
intermittent
tel
fax
Size:
Description:
Connector, PPL7, 7C, 0° plug, 7x38 mm, chrome,
solder, Ø4.2-5.2 mm wire
3
A
Scale:
2
1.541.323.3228
1.541.323.4202
800
web
877.670.7118
tensility.com
Part number:
51-00025.52
Sheet 2 of 2
2:1
1
