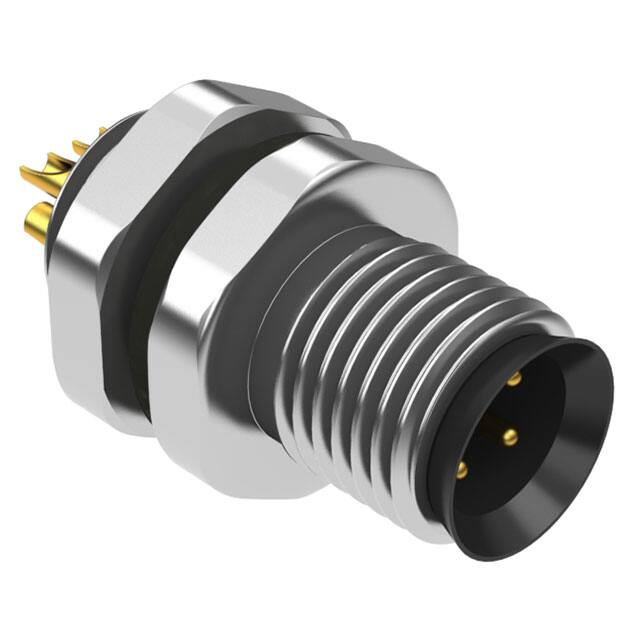

54-00096

Ratings Voltage: 60 V Current: 1 A Waterproof: IP 67 Operating Temperature Range -40 ~ 85 °C Materials 1 Insulator: Nylon 66 + 30% glass fiber, black 2 Pin: brass, gold-flashing 3 Shell: brass, nickel plated 4 O-ring: rubber 5 Hexagonal nut: brass, nickel plated 3 4 5 1 2 Electrical Requirements Dielectric strength: 1 min @ 500 Vac Insulation resistance: 10⁸ Ω min Contact resistance: 10 mΩ or less Mechanical Requirements Insertion force: 0.82 kgf max Withdrawal force: 0.62 kgf max Life cycle: 500 mating cycles 10.9 Environmental Requirements Cold test: -25 °C for 2 hours without deformation Heat test: 85 °C for 16 hours while maintaining minimum 10⁸ Ω insulation resistance 2.1 1.5 4.5 3 4 7 1 5 2 A M5 x 0.5 1.5 A 0. 6 Assembly info Wire guage: 26 AWG max (Ø0.55 mm) Panel cutout: Ø5.1 mm recommended M5 x 0.5 0.5 2.5 max. SECTION A-A Revision: A A1 Date: 8/7/2018 12/10/2018 Description: Prepared: AG Initial release Updated notes Verified: AW Notes: Digitally signed by AG Date: 2018.12.10 14:10:35 -08'00' RoHS compliant Digitally signed by AW Date: 2018.12.12 09:31:54 -08'00' Function test: no open, no short circuit, no intermittent Dimensions are in millimeters. Tolerances: X: 0.3 mm 0.1 mm X.X: X.XX: 0.05 mm 5 4 tel fax Description: Connector, 4 pin M5 plug, 5xL13mm, gold plated, panel mount, solder cup, IP67 3 2 1.541.323.3228 1.541.323.4202 Size: Part number: A 54-00096 Scale: 800 web 877.670.7118 tensility.com 3:1 Sheet 1 of 1 1
