Ratings
Voltage: 60 V
Current: 1 A
Waterproof: IP 67
Operating Temperature Range
-40 ~ 85 °C
4
5
3
2
1
Materials
1 Insulator: Nylon 66 + 30% glass fiber, black
2 Sleeve: brass, gold-flashing
3 Shell: brass, nickel plated
4 O-ring: rubber
5 Hexagonal nut: brass, nickel plated
6 O-ring: rubber
Electrical Requirements
Dielectric strength: 1 min @ 500 Vac
Insulation resistance: 10⁸ Ω min
Contact resistance: 10 mΩ or less
11.6 ±0.30
Mechanical Requirements
Insertion force: 0.82 kgf max
Withdrawal force: 0.62 kgf max
Life cycle: 500 mating cycles
2
2.1
6.8
9
1
Environmental Requirements
Cold test: -25 °C for 2 hours without deformation
Heat test: 85 °C for 16 hours while maintaining minimum 10⁸ Ω
insulation resistance
A
1.5
Assembly info
Wire guage: 26 AWG max (Ø0.55 mm)
Panel cutout: Ø7.1 mm recommended
0. 5
0. 6
4
3
M7 x 0.75
5
A
4 max.
6
M5 x 0.5
SECTION A-A
Revision:
A
Date:
8/7/2018
Description:
Prepared:
Initial release
AG
A1
12/10/2018
Added PCB Layout
A2
12/18/2018
Removed PCB Layout
5
Verified:
JP
Notes:
Digitally signed by AG
Date: 2018.12.18
15:01:45 -08'00'
RoHS compliant
Digitally signed by JP
Date: 2018.12.28
14:22:05 -08'00'
Function test: no open, no short circuit, no
intermittent
Dimensions are in
millimeters.
Tolerances:
X:
0.3 mm
X.X:
0.1 mm
X.XX: 0.05 mm
4
tel
fax
Description:

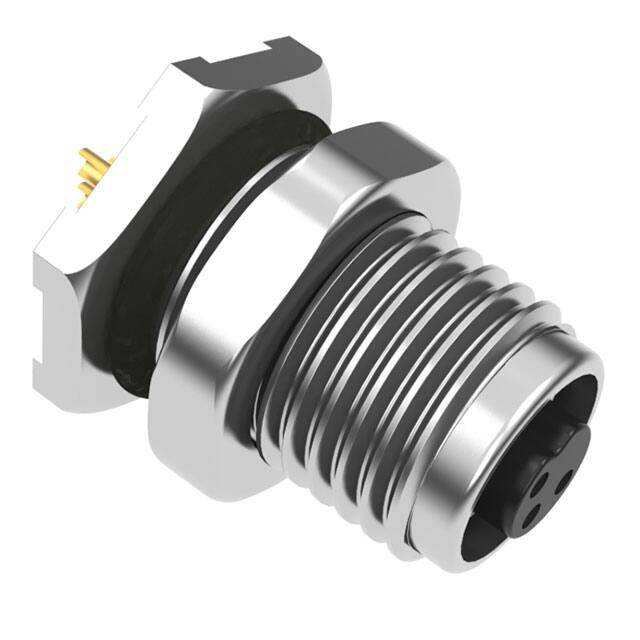

Connector, 3 pin M5 socket, 5xL13.7mm, gold
plated, panel mount, solder cup, IP67
3
Size:
Part number:
A
54-00104
Scale:
2
1.541.323.3228
1.541.323.4202
800
web
877.670.7118
tensility.com
3:1
Sheet 1 of 1
1
