Ratings
Voltage: 60 V
Current: 1 A
Waterproof: IP 67
Operating Temperature Range
-40 ~ 85 °C
Materials
1 Insulator: Nylon 66 + 30% glass fiber, black
2 Pin: brass, gold-flashing
3 Shell: brass, nickel plated
4 O-ring: rubber
5 Hexagonal nut: brass, nickel plated
6 O-ring: rubber
5
4
3
2
Electrical Requirements
Dielectric strength: 1 min @ 500 Vac
Insulation resistance: 10⁸ Ω min
Contact resistance: 10 mΩ or less
1
Mechanical Requirements
Insertion force: 0.82 kgf max
Withdrawal force: 0.62 kgf max
Life cycle: 500 mating cycles
11.6 ±0.30
4
1
2
1.25
6
Assembly info
Wire guage: 26 AWG max (Ø0.55 mm)
Panel cutout: Ø5.1 mm recommended
A
2.1
7
Environmental Requirements
Cold test: -25 °C for 2 hours without deformation
Heat test: 85 °C for 16 hours while maintaining minimum 10⁸ Ω
insulation resistance
0. 5
0. 5
4
3
M5 x 0.5
1.5
1.5
1.25
2 max.
1.25
A
6
M5 x 0.5
1.25
0. 7 ( x
4)
PCB Layout
SECTION A-A
Revision:
Date:
Description:
A
8/7/2018
Initial release
A1
12/7/2018
Prepared:
AG
Digitally signed by AG
Date: 2018.12.11
09:44:25 -08'00'
Verified:
Added PCB layout
AW
Digitally signed by AW
Date: 2018.12.11
09:44:56 -08'00'
Dimensions are in
millimeters.
Tolerances:
X:
0.3 mm
X.X:
0.1 mm
X.XX: 0.05 mm
5
4
Notes:
RoHS compliant
Function test: no open, no short circuit, no
intermittent
tel
fax
Description:

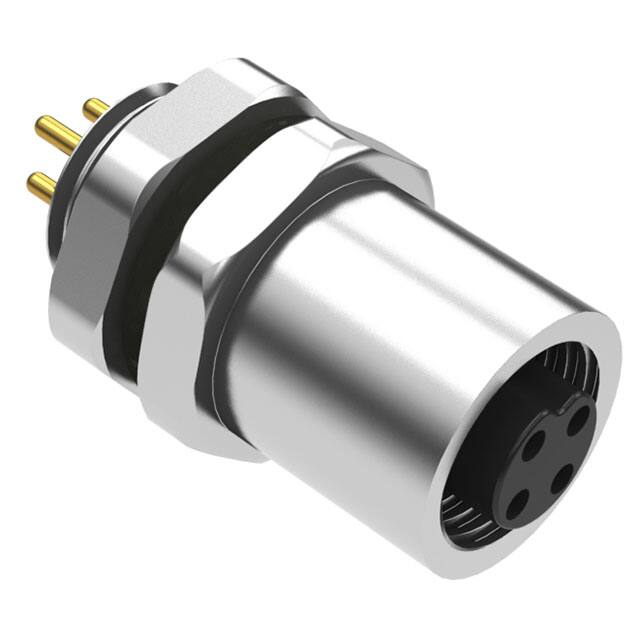

Connector, 4 pin M5 socket, 5xL13.7mm, gold
plated, panel mount, PCB, IP67
3
Size:
Part number:
A
54-00106
Scale:
2
1.541.323.3228
1.541.323.4202
800
web
877.670.7118
tensility.com
3:1
Sheet 1 of 1
1
