54-00177

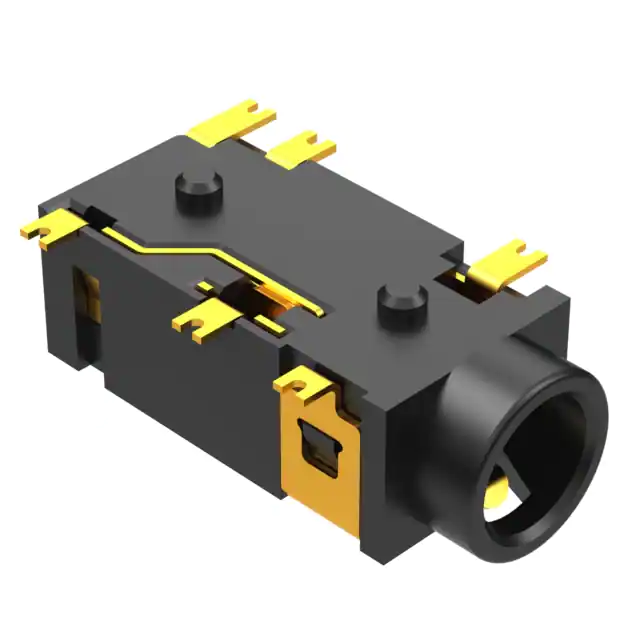

1 3 6 (NC) 1 3 6 5 (NC) 4 5 4 2 2 Unplugged Schematic Plugged Schematic 14 ±0.30 6.3 2.0 5. 0 11.5 9.3 2.1 2 4 (2x) 11 ±0.20 5.5 ±0.20 2.1 ±0.20 (2x) 1.5 2.5 1 TYP 1.3 5 9 7.0 8.3 ±0.30 (6x) 2x1.5 0.6 0.2 2.5 5 4.5 2.3 3.6 7 1 2.1 3 6 5.5 11 P.C.B Layout 2.1 ±0.20 9.3 ±0.20 11.5 ±0.20 Revision: A Date: 3/11/2020 Description: Prepared: Initial release AG Verified: AW Notes: Digitally signed by AG Date: 2020.04.08 11:46:07 -07'00' Digitally signed by AW Date: 2020.04.08 13:54:55 -07'00' Dimensions are in millimeters. Tolerances: 0.5 mm X: X.X: 0.2 mm X.XX: 0.2 mm 5 4 RoHS compliant Function test: no open, no short circuit, no intermittent tel fax Description: Connector, 4C audio jack, 3.5xL14 mm, SMT mount, gold plated 3 2 1.541.323.3228 1.541.323.4202 Size: Part number: A 54-00177 Scale: 800 web 877.670.7118 tensility.com Sheet 1 of 2 3:1 1 Ratings Voltage: 48 V Current: 0.5 A T (°C) Operating Temperature Range -40 ~ 105°C, relative humidity of 85% or less 265 °C 255 °C Materials 1 #1 contact: phosphor bronze, gold plating 2 #2 contact: phosphor bronze, gold plating 3 #3 contact: phosphor bronze, gold plating 4 #4 contact: phosphor bronze, gold plating 5 #5 contact: phosphor bronze, gold plating 6 #6 contact: phosphor bronze, gold plating 7 Housing: PA9T, black, UL 94 V-0 180 °C Max: 10 sec Max: 6 °C/s 2-4 °C/s 6 min Electrical Requirements Dielectric strength: 1 min @ 500 Vac Insulation resistance: 100 MΩ @ 250 Vdc Contact resistance: 30 mΩ or less at 1 KHz Reflow soldering temperature profile Mechanical Requirements Insertion force: 0.3-2 kgf Withdrawal force: 0.3-2 kgf Life cycle: 5000 mating cycles while maintaining 0.3 kgf min. insertion force, 0.2 kgf min. withdrawal force and less than 100 mΩ contact resistance Terminal strength: 500 gf applied in one direction to the tip of the terminal for 1 second without mechanical or electrical damage 1.75 Packaging Detail 2 12 14.3 24 Environmental Requirements Cold test: -40 ±2 °C for 48 hours without deformation Heat test: 70 °C, relative humidity 70-85% for 96 hours without deformation Humidity test: 40 ±2 °C, relative humidity 90-100% for 96 hours without deformation Salt spray test: 35 ±2 °C, 5% NaCl mist for 24 hrs. Wash parts after test. No remarkable corrosion shall be present Tape 24 pieces empty at end of reel Packaging Information 1000 connectors/reel 12 reels/box Revision: A Date: 3/11/2020 Description: Prepared: Initial release AG Verified: AW Notes: Digitally signed by AG Date: 2020.04.08 11:46:22 -07'00' Digitally signed by AW Date: 2020.04.08 13:55:15 -07'00' Dimensions are in millimeters. Tolerances: 0.5 mm X: X.X: 0.3 mm X.XX: 0.2 mm 5 Input Material Direction 1.5 4 11.5 Soldering Solderability: 90% minimum coverage when terminals dipped 2mm in 260 ±5 °C solder bath for 3 ±0.5 seconds Solder bath durability: no deformation when immersed in 255 ±5 °C up to surface of the board 1.6 mm for 5 seconds or less Solder iron durability: no deformation when exposed to 350 ±10 °C for 5 seconds or less 4 RoHS compliant Function test: no open, no short circuit, no intermittent tel fax Description: Connector, 4C audio jack, 3.5xL14 mm, SMT mount, gold plated 3 2 1.541.323.3228 1.541.323.4202 Size: Part number: A 54-00177 Scale: 800 web 877.670.7118 tensility.com Sheet 2 of 2 3:1 1
