54-00178

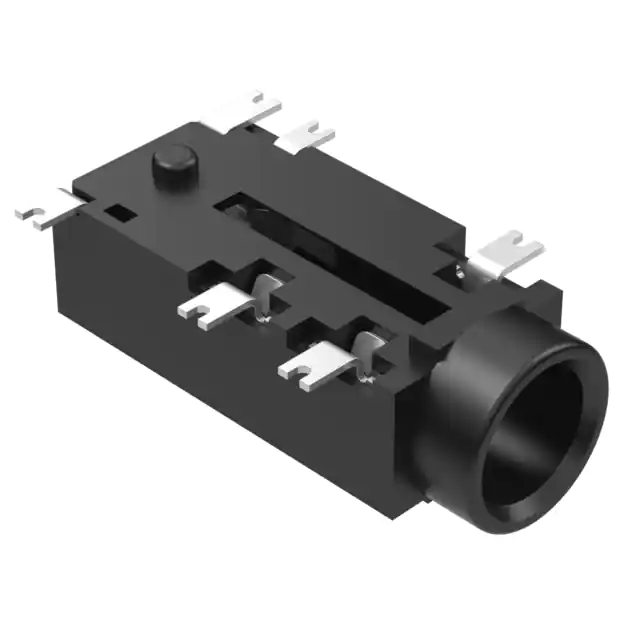

2 3 4 2 3 4 5 6 1 5 6 1 Plugged Schematic 6.2 14 ±0.30 2.0 3.6 1.85 3.7 5.0 0.5 0.9 10.5 11.5 9.4 8.3 2.1 11.5 ±0.20 5.5 ±0.20 1.5 (5x) 1.3 1.1 1 6 1.4 4 3.2 1. 2 5 2 3 9 Unplugged Schematic 4 2.1 5.5 2.1 ±0.20 9.4 Revision: A Date: 3/11/2020 Description: Prepared: Initial release AG Verified: AW 4 P.C.B Layout Notes: Digitally signed by AG Date: 2020.04.08 11:48:34 -07'00' Digitally signed by AW Date: 2020.04.08 12:15:46 -07'00' Dimensions are in millimeters. Tolerances: 0.5 mm X: X.X: 0.2 mm X.XX: 0.2 mm 5 10.5 11.5 RoHS compliant Function test: no open, no short circuit, no intermittent tel fax Description: Connector, 3C audio jack, 3.5xL14 mm, SMT mount, silver plated 3 2 1.541.323.3228 1.541.323.4202 Size: Part number: A 54-00178 Scale: 800 web 877.670.7118 tensility.com Sheet 1 of 2 3:1 1 Ratings Voltage: 48 V Current: 0.5 A T (°C) 265 °C 255 °C Operating Temperature Range -40 ~ 105°C, relative humidity of 85% or less Materials 1 #1 contact: phosphor bronze, silver plating 2 #2 contact: phosphor bronze, silver plating 3 #3 contact: phosphor bronze, silver plating 4 #4 contact: phosphor bronze, silver plating 5 #5 contact: phosphor bronze, silver plating 6 #6 contact: phosphor bronze, silver plating 7 Housing: PA9T, black , UL 94 V-0 180 °C Max: 10 sec 2-4 °C/s Max: 6 °C/s 6 min Electrical Requirements Dielectric strength: 1 min @ 500 Vac Insulation resistance: 100 MΩ @ 250 Vdc Contact resistance: 30 mΩ or less at 1 KHz Reflow soldering temperature profile Mechanical Requirements Insertion force: 0.3-2 kgf Withdrawal force: 0.3-2 kgf Life cycle: 5000 mating cycles while maintaining 0.3 kgf min. insertion force, 0.2 kgf min. withdrawal force and less than 100 mΩ contact resistance Terminal strength: 500 gf applied in one direction to the tip of the terminal for 1 second without mechanical or electrical damage Packaging Detail 12 Soldering Solderability: 90% minimum coverage when terminals dipped 2mm in 260 ±5 °C solder bath for 3 ±0.5 seconds Solder bath durability: no deformation when immersed in 255 ±5 °C up to surface of the board 1.6 mm for 5 seconds or less Solder iron durability: no deformation when exposed to 350 ±10 °C for 5 seconds or less Input Material Direction 14.3 Environmental Requirements Cold test: -40 ±2 °C for 48 hours without deformation Heat test: 70 °C, relative humidity 70-85% for 96 hours without deformation Humidity test: 40 ±2 °C, relative humidity 90-100% for 96 hours without deformation Salt spray test: 35 ±2 °C, 5% NaCl mist for 24 hrs. Wash parts after test. No remarkable corrosion shall be present 1 .5 4 11.5 24 2 24 pieces empty at end of reel 5.4 Packaging Information 1000 connectors/reel 12 reels/box 9.15 Revision: A Date: 3/11/2020 Description: Prepared: AG Initial release Verified: AW Notes: Digitally signed by AG Date: 2020.04.08 11:48:50 -07'00' Digitally signed by AW Date: 2020.04.08 12:15:56 -07'00' Dimensions are in millimeters. Tolerances: 0.5 mm X: X.X: 0.3 mm X.XX: 0.2 mm 5 4 RoHS compliant Function test: no open, no short circuit, no intermittent tel fax Description: Connector, 3C audio jack, 3.5xL14 mm, SMT mount, silver plated 3 2 1.541.323.3228 1.541.323.4202 Size: Part number: A 54-00178 Scale: 800 web 877.670.7118 tensility.com Sheet 2 of 2 1:1 1
