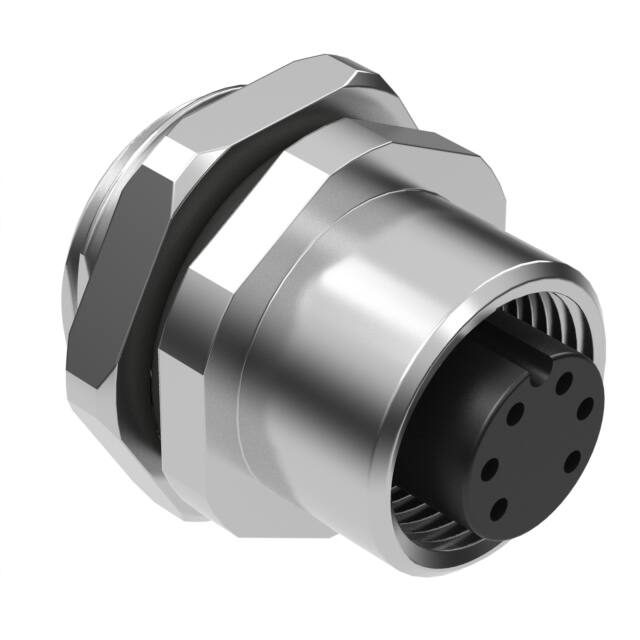

Style M12 Socket, shielded 6 pin A-coding Ratings Voltage: 30 V Current: 2 A 1 2 7 Operating Temperature Range -40~105 °C 3 6 Materials 1 Insulator: Polyamide 66 (PA66), UL94 HB, black 2 Pin: C5191 phosphor bronze, gold plating 3 Shell: C3604 brass, nickel plated 4 Nut: C3604 brass, nickel plated 5 O-ring: Nitrile rubber, green/black 4 21.5 ±1 Front View Not to Scale 19.7 ±0.50 17 2.8 11.7 ±0.50 Electrical Requirements Dielectric strength: 1 min @ 500 Vac Insulation resistance: 100 MΩ @ 500 Vdc Contact resistance: 10 mΩ or less A Mechanical Requirements Life cycle: 500 mating cycles minimum 18 Environmental Requirements Salt spray test: 35 °C, relative humidity 90-95%, 5% NaCl mist for 48 hrs. Wash parts after test. Maintain mechanical requirements and a contact resistance of less than 10 mΩ. Waterproof: IP67 A 13.5 0. 8 Assembly Info Wire gauge: 24 AWG max +0.30 13.5 0 4 +0.30 15.3 0 3 2 1 Panel cutout (PG9) Panel thickness (3.5mm max.) M12 x 1.0 5 5 SECTION A-A Revision: A Date: 10/1/2020 Description: Prepared: Initial release JC Notes: Digitally signed by JC Date: 2020.10.23 12:46:31 -07'00' RoHS compliant Digitally signed by AG Date: 2020.10.23 13:05:39 -07'00' Function test: no open, no short circuit, no intermittent Verified: AG Dimensions are in millimeters. Tolerances: X: 0.3 mm X.X: 0.1 mm X.XX: 0.05 mm 5 4 tel fax Description: Connector, 6 pin M12 A-code socket, 12xL21.5mm, gold plated, panel mount, solder cup, IP67 3 2 1.541.323.3228 1.541.323.4202 Size: Part number: A 54-00183 Scale: 800 web 877.670.7118 tensility.com 2:1 Sheet 1 of 1 1
