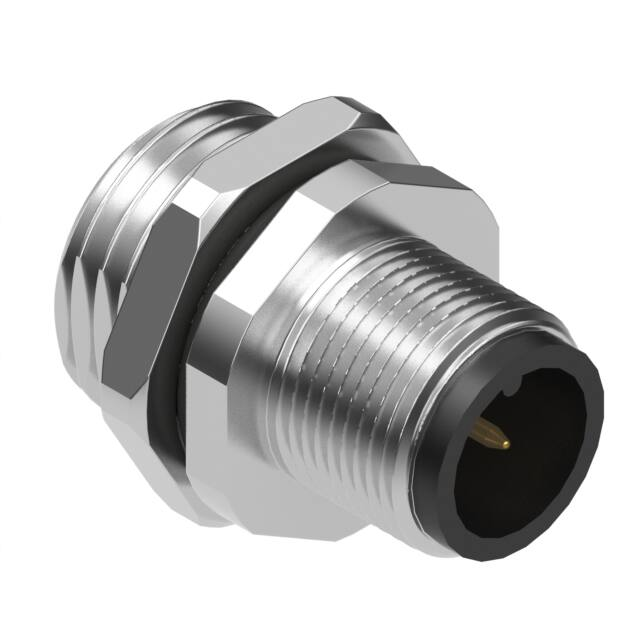

54-00187

Style M12 Plug, shielded 3 pin A-coding Ratings Voltage: 250 V Current: 4 A 1 Operating Temperature Range -40~105 °C 3 Materials 1 Insulator: Polyamide 66 (PA66), UL94 HB, black 2 Pin: C3604 brass, gold plated 3 Shell: C3604 brass, nickel plated 4 Nut: C3604 brass, nickel plated 5 O-ring: Nitrile rubber, black 4 Front View Not to Scale 24 ±1 22 ±0.50 17 Electrical Requirements Dielectric strength: 1 min @ 500 Vac Insulation resistance: 100 MΩ @ 500 Vdc Contact resistance: 10 mΩ or less 2.8 A 13 ±0.50 Mechanical Requirements Life cycle: 500 mating cycles minimum 18 Environmental Requirements Salt spray test: 35 °C, relative humidity 90-95%, 5% NaCl mist for 48 hrs. Wash parts after test. Maintain mechanical requirements and a contact resistance of less than 10 mΩ. Waterproof: IP67 1 Assembly Info Wire gauge: 22 AWG max M12 x 1.0 +0.30 13.5 0 A +0.30 15.3 0 4 2 Panel cutout (PG9) Panel thickness (4.5mm max.) Revision: A Date: 10/1/2020 Description: Prepared: Initial release JC Verified: AG 4 3 5 SECTION A-A Notes: Digitally signed by JC Date: 2020.10.23 12:48:45 -07'00' RoHS compliant Digitally signed by AG Date: 2020.10.23 13:07:00 -07'00' Function test: no open, no short circuit, no intermittent Dimensions are in millimeters. Tolerances: X: 0.3 mm X.X: 0.1 mm X.XX: 0.05 mm 5 1 tel fax 1.541.323.3228 1.541.323.4202 800 web 877.670.7118 tensility.com Size: Part number: Description: Connector, 3 pin M12 A-code plug, 12xL24mm, gold 54-00187 A plated, panel mount, solder cup, IP67 Scale: 2:1 3 2 Sheet 1 of 1 1
