Style
M12 Plug, shielded
6 pin
A-coding
Ratings
Voltage: 30 V
Current: 2 A
2
Operating Temperature Range
-40~105 °C
1
3
7
4
Materials
1 Insulator: Polyamide 66 (PA66), UL94 HB, black
2 Pin: C3604 brass, gold plated
3 Shell: C3604 brass, nickel plated
4 Nut: C3604 brass, nickel plated
5 O-ring: Nitrile rubber, black
6
Front View
Not to Scale
24 ±1
18
22.7 ±0.50
Electrical Requirements
Dielectric strength: 1 min @ 500 Vac
Insulation resistance: 100 MΩ @ 500 Vdc
Contact resistance: 10 mΩ or less
A
2.8
10.2 ±0.50
Mechanical Requirements
Life cycle: 500 mating cycles minimum
Environmental Requirements
Salt spray test: 35 °C, relative humidity 90-95%, 5% NaCl
mist for 48 hrs. Wash parts after test. Maintain mechanical
requirements and a contact resistance of less than 10 mΩ.
Waterproof: IP67
0.8
Assembly Info
Wire gauge: 22 AWG max
M12 x 1.0
+0.30
13.5 0
+0.30
15.3 0
A
2
1
Panel cutout (PG9)
Panel thickness (5.0mm max.)
Revision:
A
Date:
10/2/2020
Description:
Prepared:
Initial release
JC
Digitally signed by AG
Date: 2020.10.23
15:32:47 -07'00'
Dimensions are in
millimeters.
Tolerances:
X:
0.3 mm
X.X:
0.1 mm
X.XX: 0.05 mm
5
4
4
5
SECTION A-A
Notes:
Digitally signed by JC
Date: 2020.10.23 14:51:24
-07'00'
Verified:
AG
3
RoHS compliant
Function test: no open, no short circuit, no
intermittent
tel
fax
1.541.323.3228
1.541.323.4202
800
web
877.670.7118
tensility.com
Description:
Size: Part number:

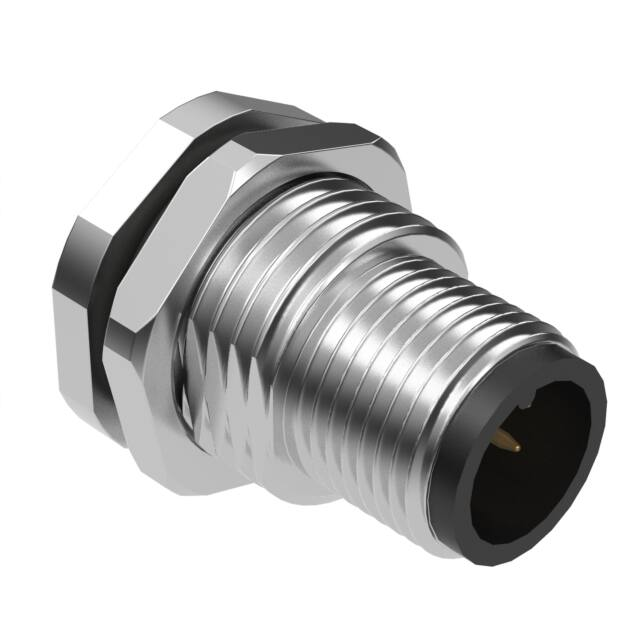

Connector, 6 pin M12 A-code plug, 12xL24mm, gold
54-00197
A
plated, panel mount, solder cup, IP67
Scale: 2:1
3
2
Sheet 1 of 1
1
